Specifications

Product Type	Switch Disconnector
Brand	ABB
Series	SACE Emax 3
Rated Current (In)	5000 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V AC
Rated Operating Voltage	690 V AC
Rated Permanent Current (Iu)	5000 A
Rated Short Time Withstand Current (Icw)	100 kA for 1 s, 100 kA for 3 s
Power Loss	850 W
Rated Frequency	50/60 Hz
No. of Poles	3

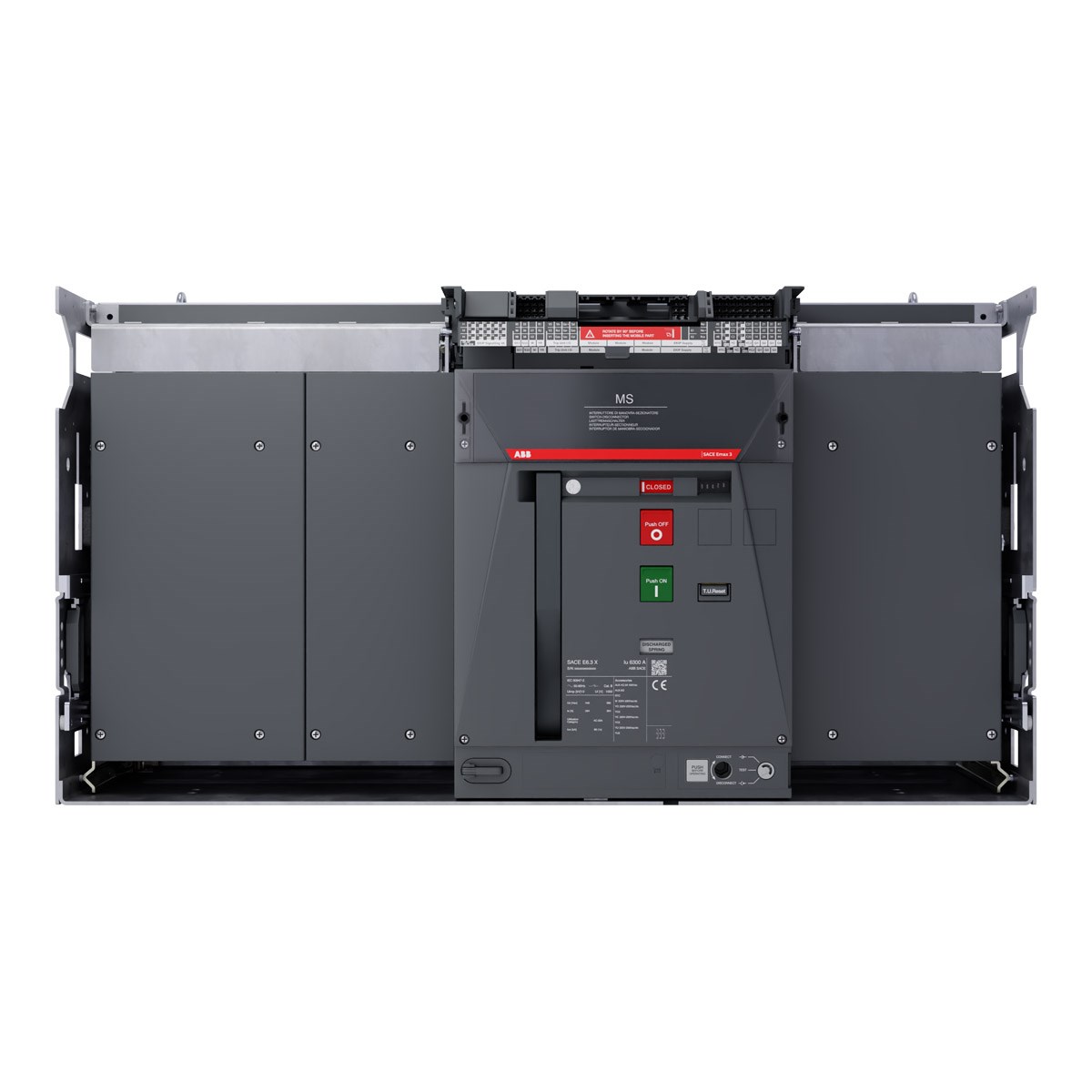

ABB 1SDA126004R1 Switch Disconnector 5000A 3P 690VAC 100kA Icw/1s SACE Emax 3
