Specifications

Product Type	Switch Disconnector
Brand	ABB
Series	SACE Emax 3
Rated Current (In)	1600 A
Rated Impulse Withstand Voltage (Uimp)	12 kV
Rated Insulation Voltage (Ui)	1000 V AC
Rated Operating Voltage	690 V AC
Rated Permanent Current (Iu)	1600 A
Rated Short Time Withstand Current (Icw)	50 kA for 1 s, 30 kA for 3 s
Power Loss	400 W
Rated Frequency	50/60 Hz
No. of Poles	4

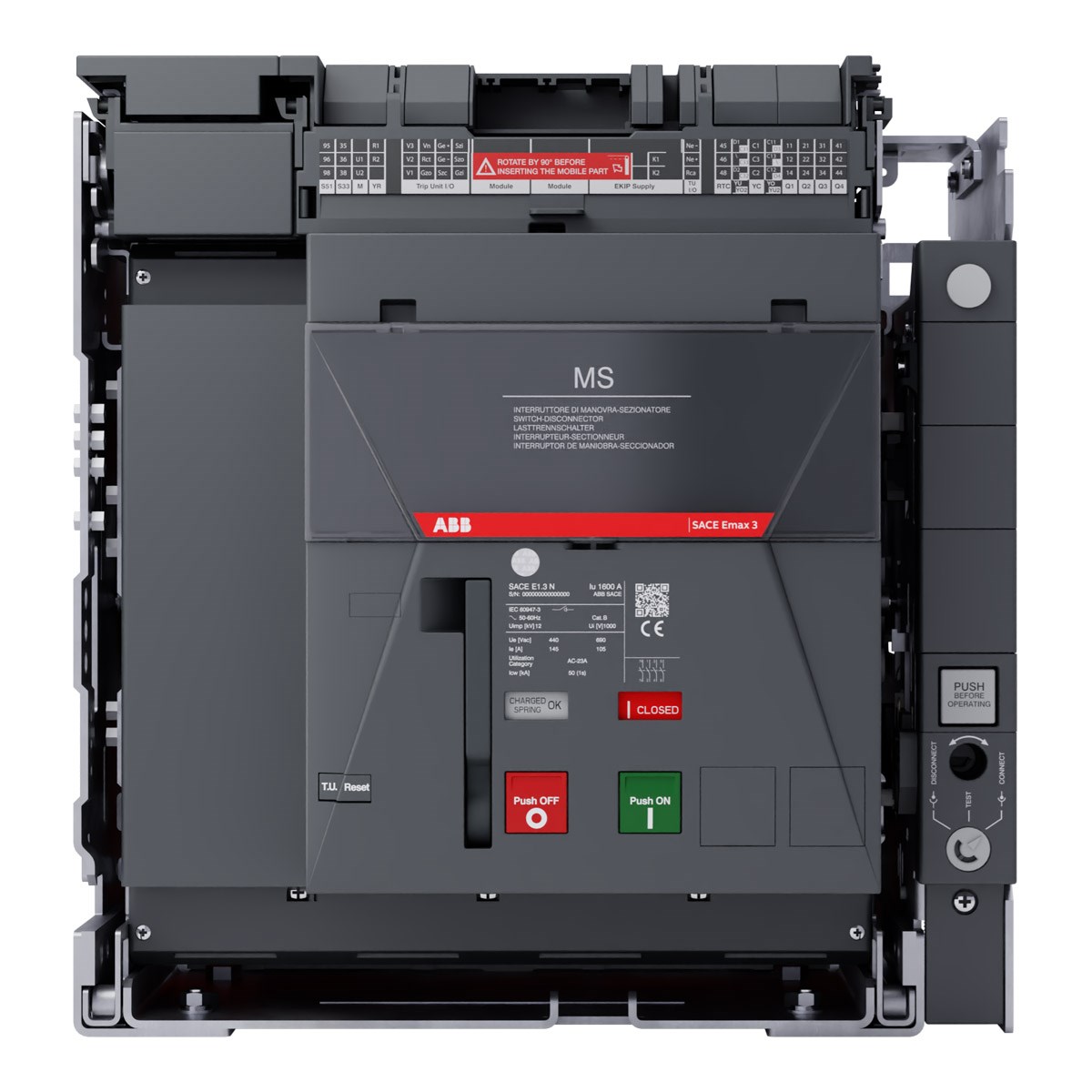

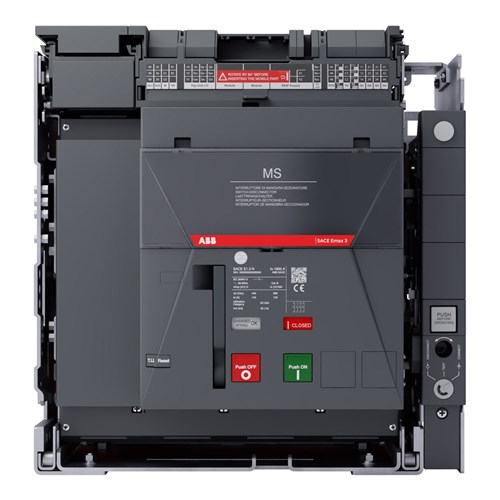

ABB 1SDA126018R1 Switch Disconnector 1600A 4P 690VAC 50kA Icw/1s SACE Emax 3
