Specifications

Brand	Circutor
Series	RZ-RBZ
Rated Insulation Voltage (Ui)	3 kV
Rated Frequency	50 Hz
ETIM 9.0 Class	EC002565
Voltage	400 V,on request: up to 1000 V
Losses (W)	130 W
Permanent Overload (Electrical)	1.17 In
Max. Transient Current	2 In (1 min)
Tolerance L	± 5 %
Nominal Operating Current	18 A
Overvoltage Factor (Per Unit %)	14 % (134 Hz)
Circuit Breaker Type	9125°C NC thermostat
Envelope	Conductor type: Aluminium strip / copper cable
Protection Class	IP 00
Thermal Class	class F (+155 ºC) On request: class H (+180 ºC)
Inductance (mH)	6.52
Installation, Location, Position	Inside
Depth	130 mm
Height	245 mm
Weight	16.75
Width	250 mm
Ambient Temperature	-10 … +45 ºC
Standards	UNE-EN 60289, IEC 60076
Linearity (5% L)	1.75 In

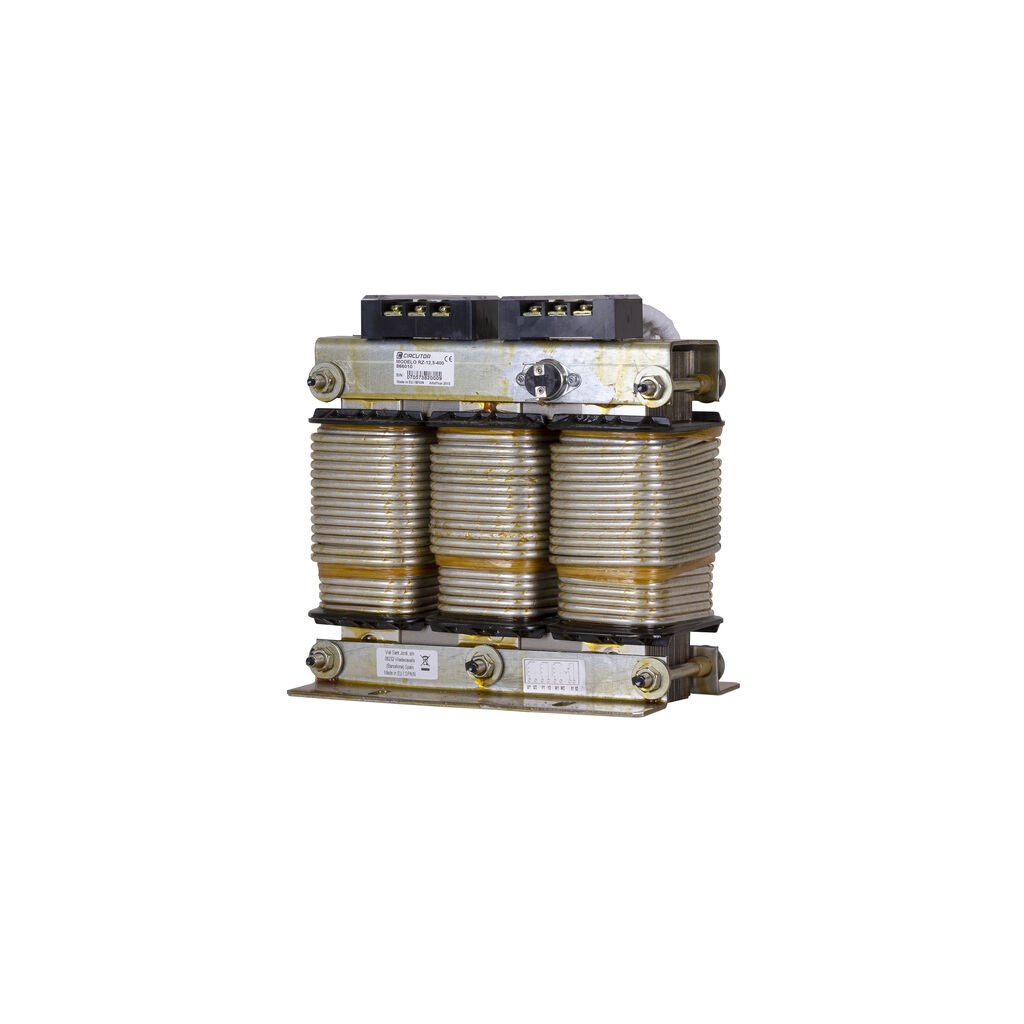

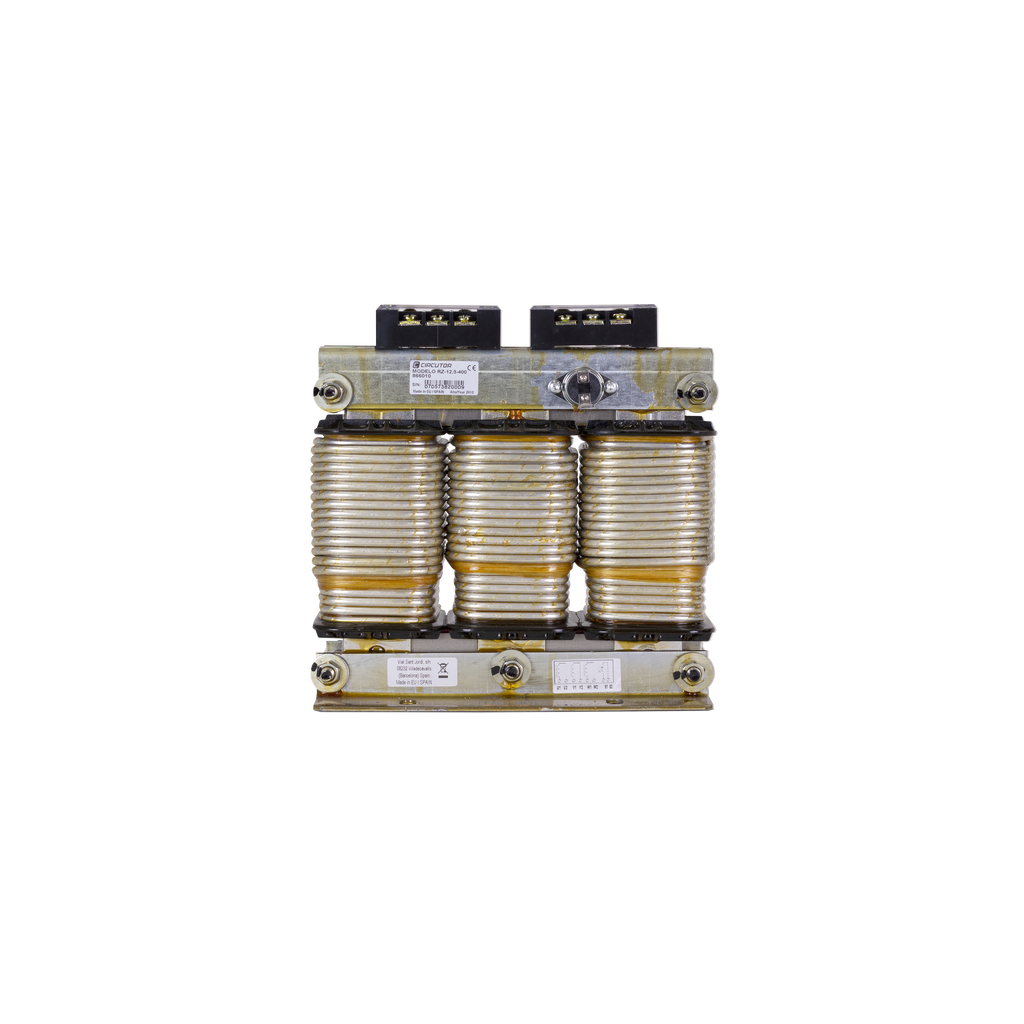

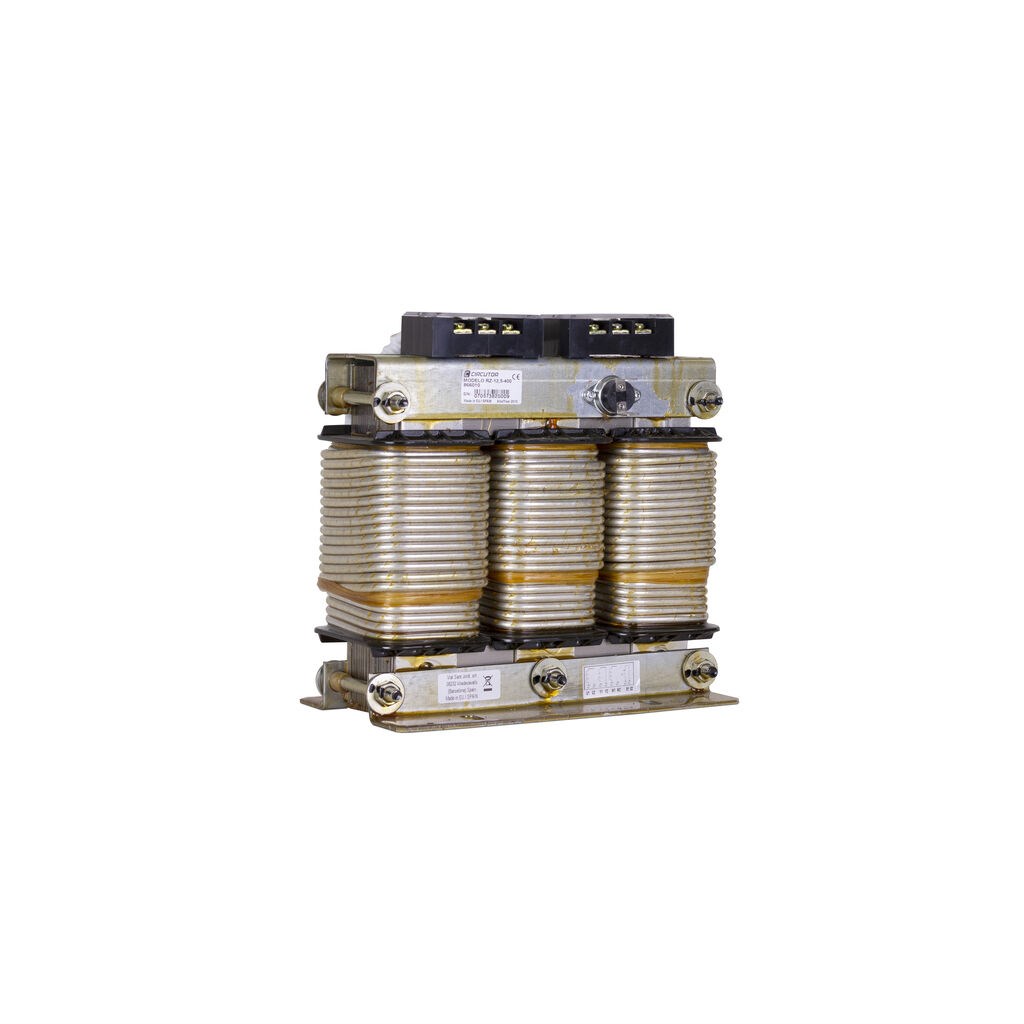

CIRCUTOR P731170000300 REACTOR 12.5kVAr 400V 14% DETUNED FILTER REACTOR RZ-12,5-400-14%
