Specifications

Brand	Circutor
Series	REZ-RBEZ
Rated Insulation Voltage (Ui)	4 kV
Rated Frequency	50 Hz
ETIM 9.0 Class	EC002565
Voltage	400 V,on request: up to 1000 V
Losses (W)	263 W
Permanent Overload (Electrical)	1.17 In
Max. Transient Current	2 In (1 min)
Tolerance L	± 5 %
Nominal Operating Current	68 A
Overvoltage Factor (Per Unit %)	7 % (189 Hz)
Circuit Breaker Type	90°C NC thermostat
Envelope	Conductor type: Aluminium strip
Protection Class	IP 00
Thermal Class	class F (+155 ºC) On request: class H (+180 ºC)
Inductance (mH)	1.42
Installation, Location, Position	Inside

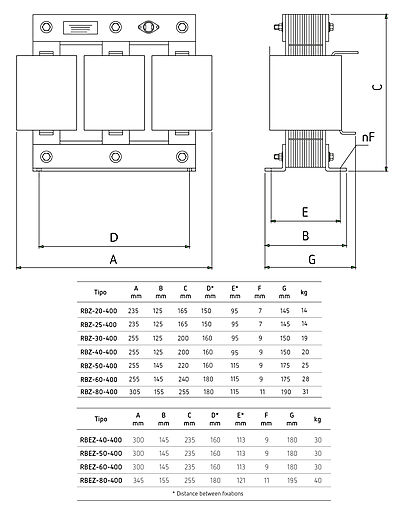

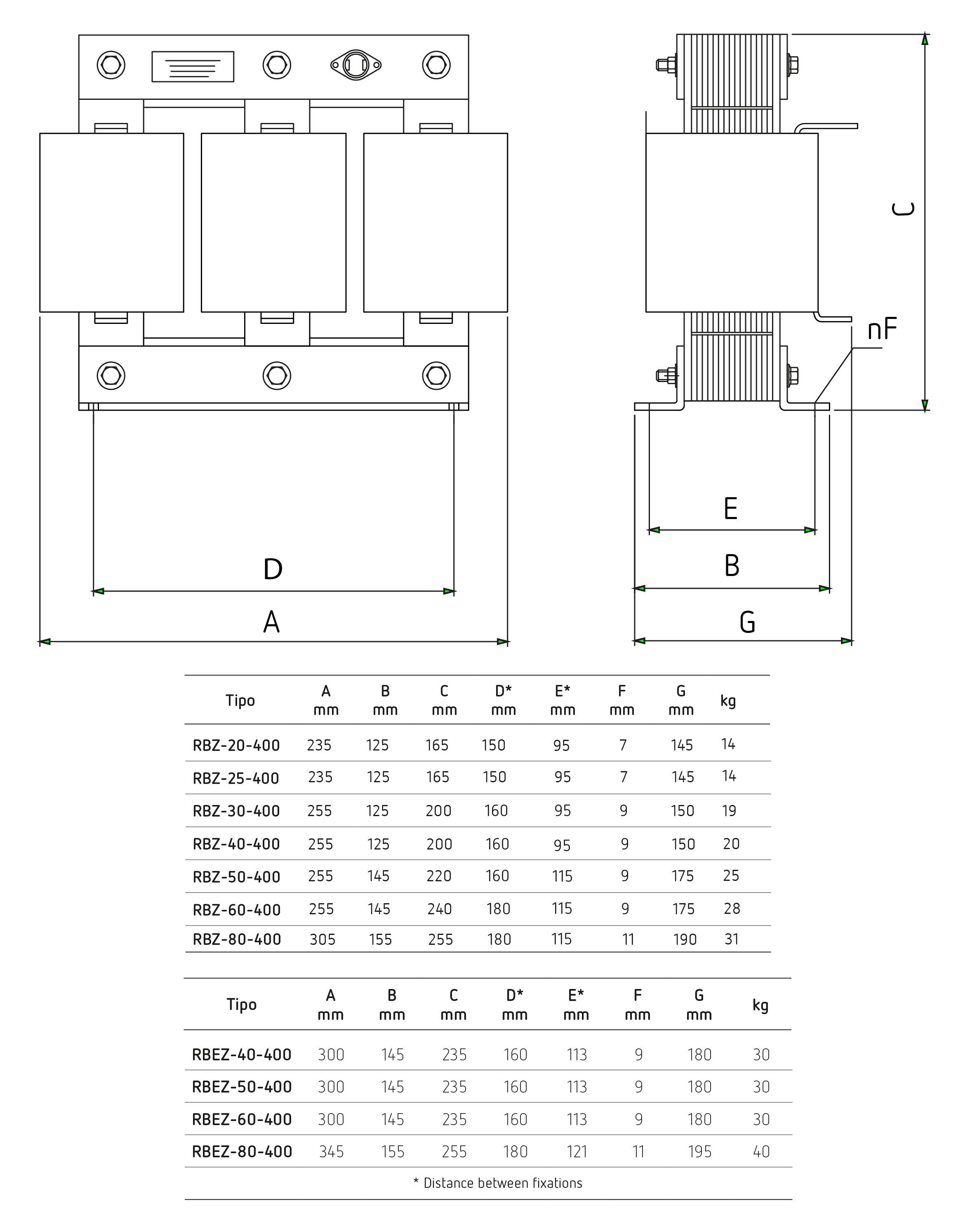

Depth	345 mm
Height	255 mm
Weight	40
Width	195 mm
Ambient Temperature	-10 … +45 ºC
Standards	UNE-EN 60289, IEC 60076
Linearity (5% L)	1.8 In

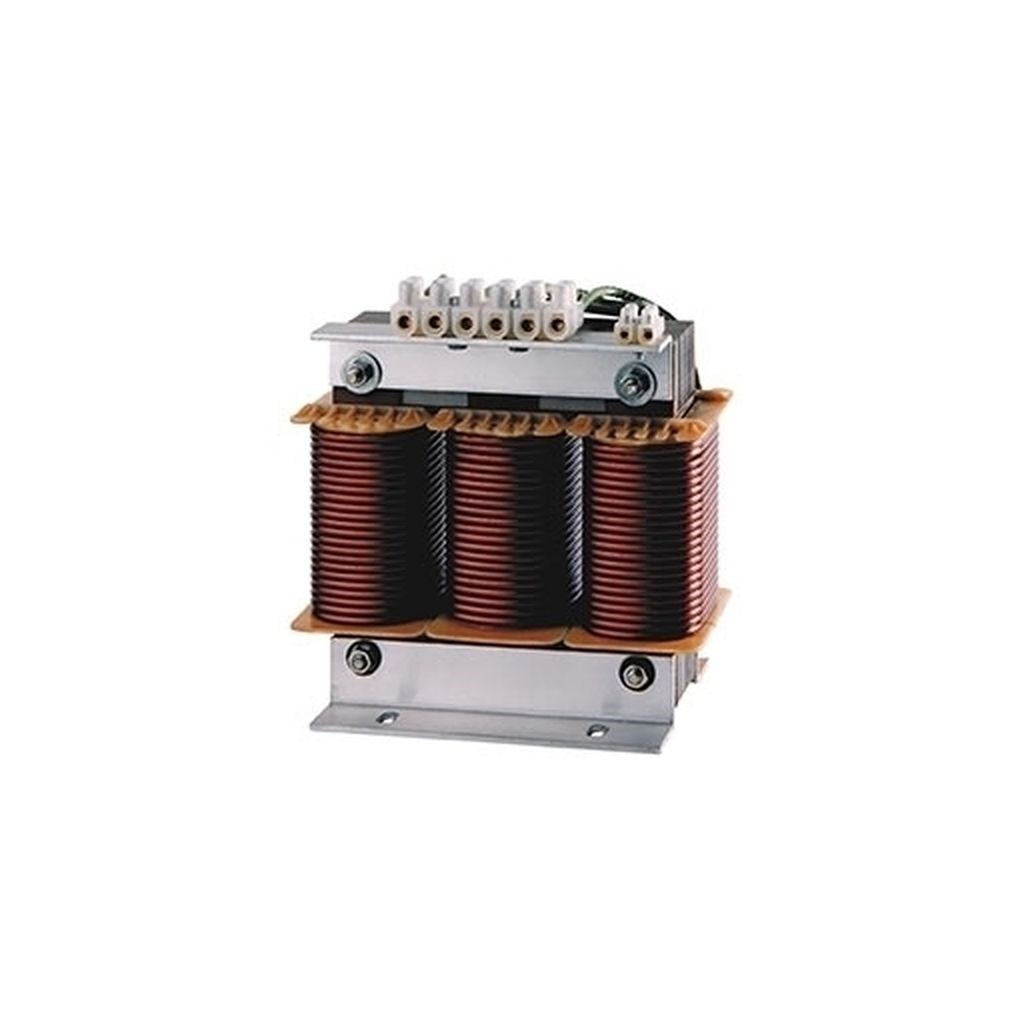

CIRCUTOR P73255 REACTOR 80kVAr 400V 7% DETUNED STAT FILTER REACTOR RBEZ-80-400
