Specifications

Brand	Circutor
Series	LRZ / LRBZ
Nominal Current (In)	According to table. Other values on request
Rated Insulation Voltage (Ui)	4 kV
Allowable Overload	1.7 In
ETIM 9.0 Class	EC002565
Voltage	up to 1000 V~
Losses (W)	355 W
Max. Transient Current	2 In (1 min)
Nominal Operating Current	300 A
Permanent Overload (Per Transformer)	1.7 In
Envelope	Conductor type: copper strip (or aluminium on request)
Protection Class	IP 00
Thermal Class	class F (+155 ºC) On request: class H (+180 ºC)
Inductance (mH)	0.1

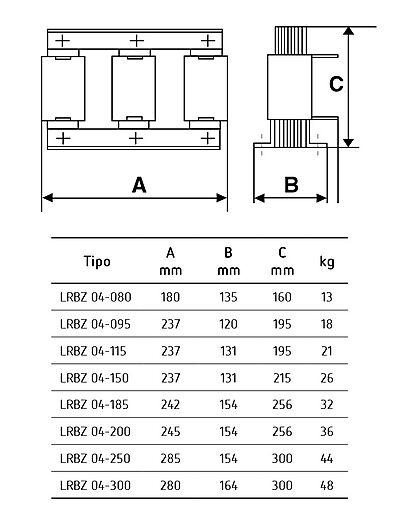

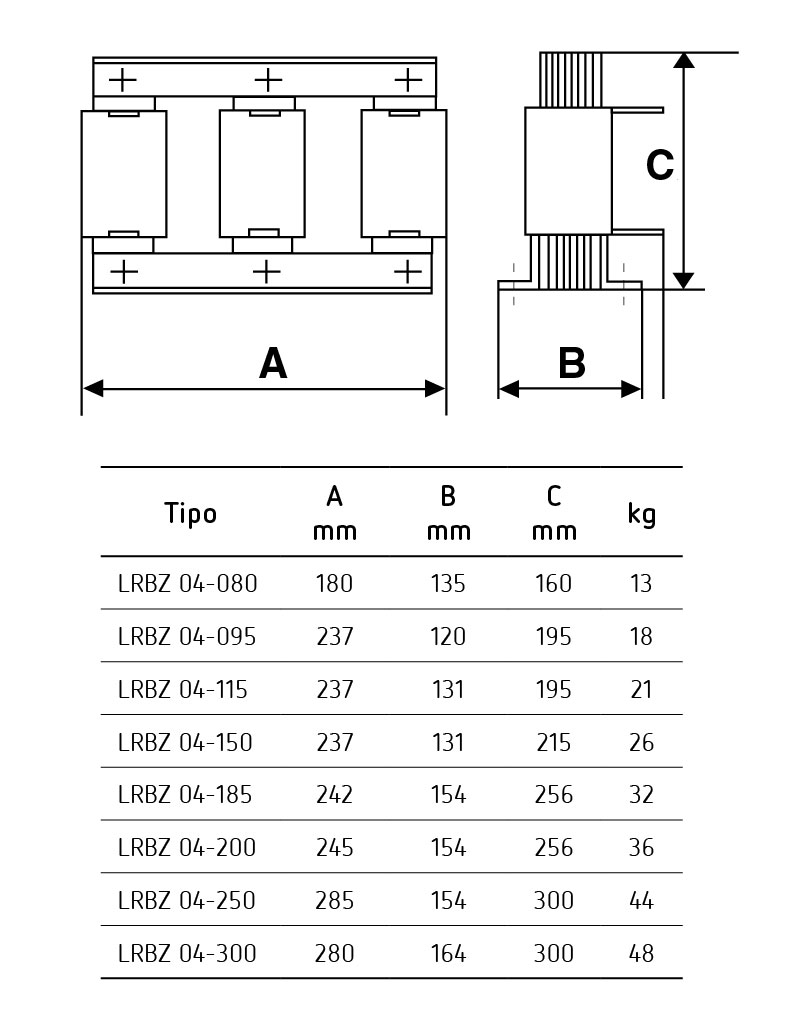

Depth	164 mm
Height	300 mm
Weight	29
Width	280 mm
Standards	UNE-EN 60289 , IEC 60076
Linearity (5% L)	1.5 In

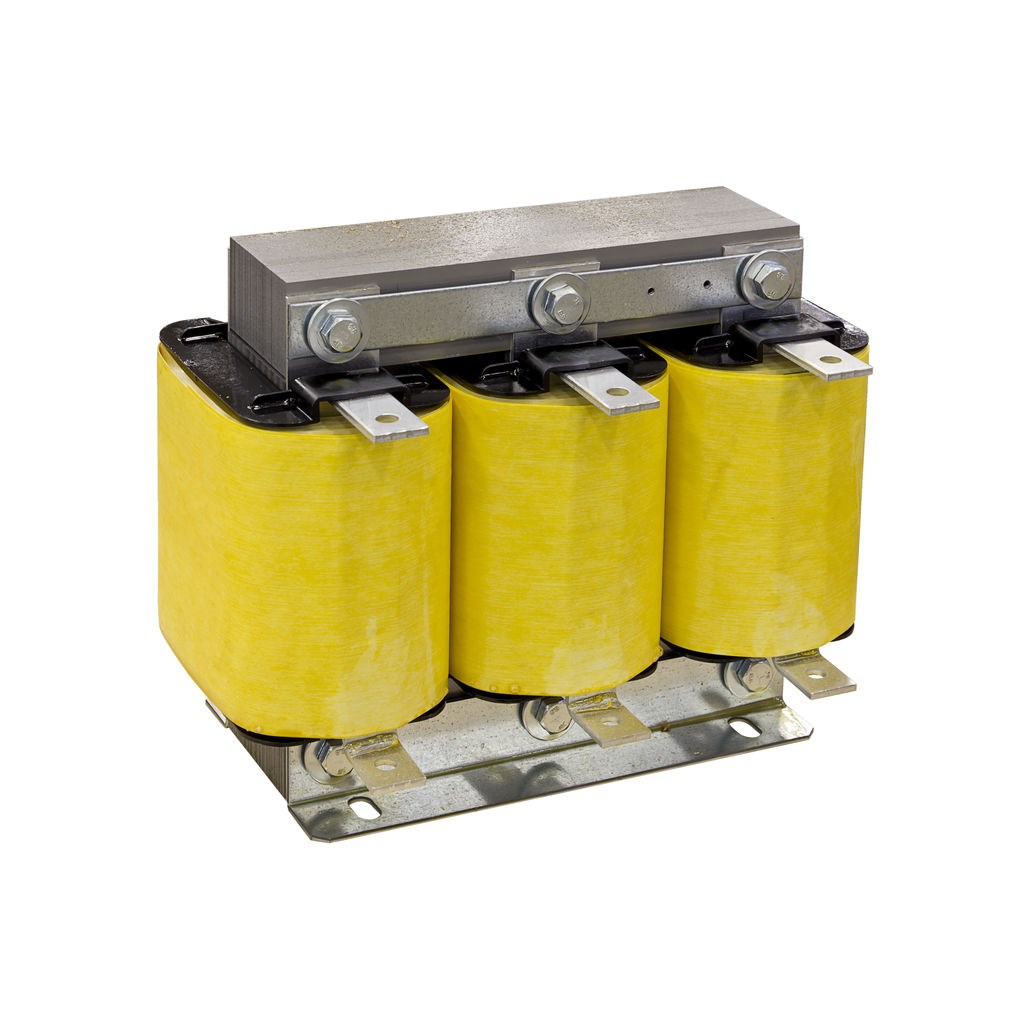

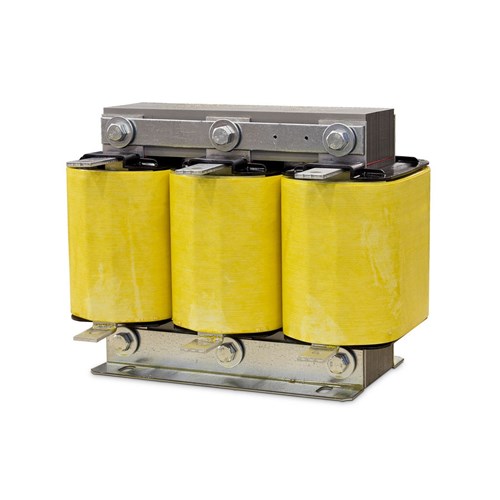

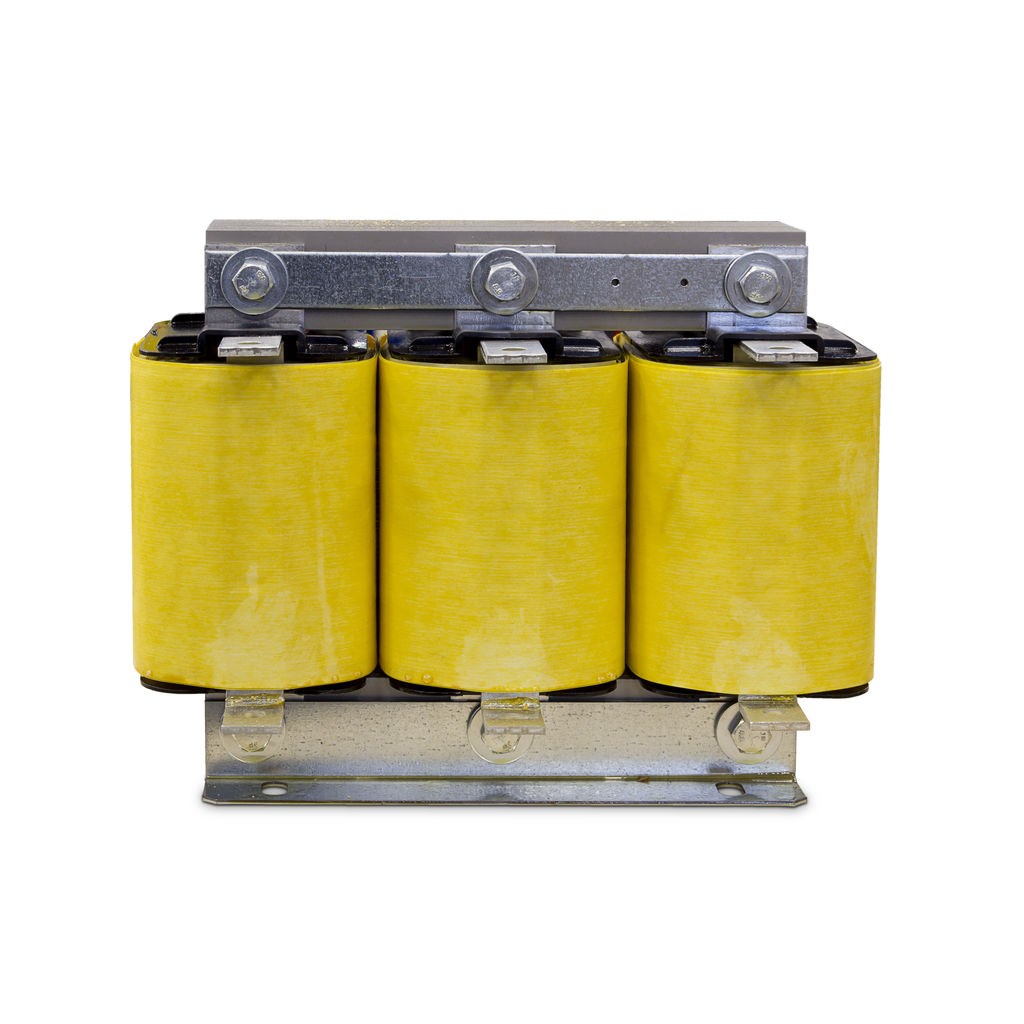

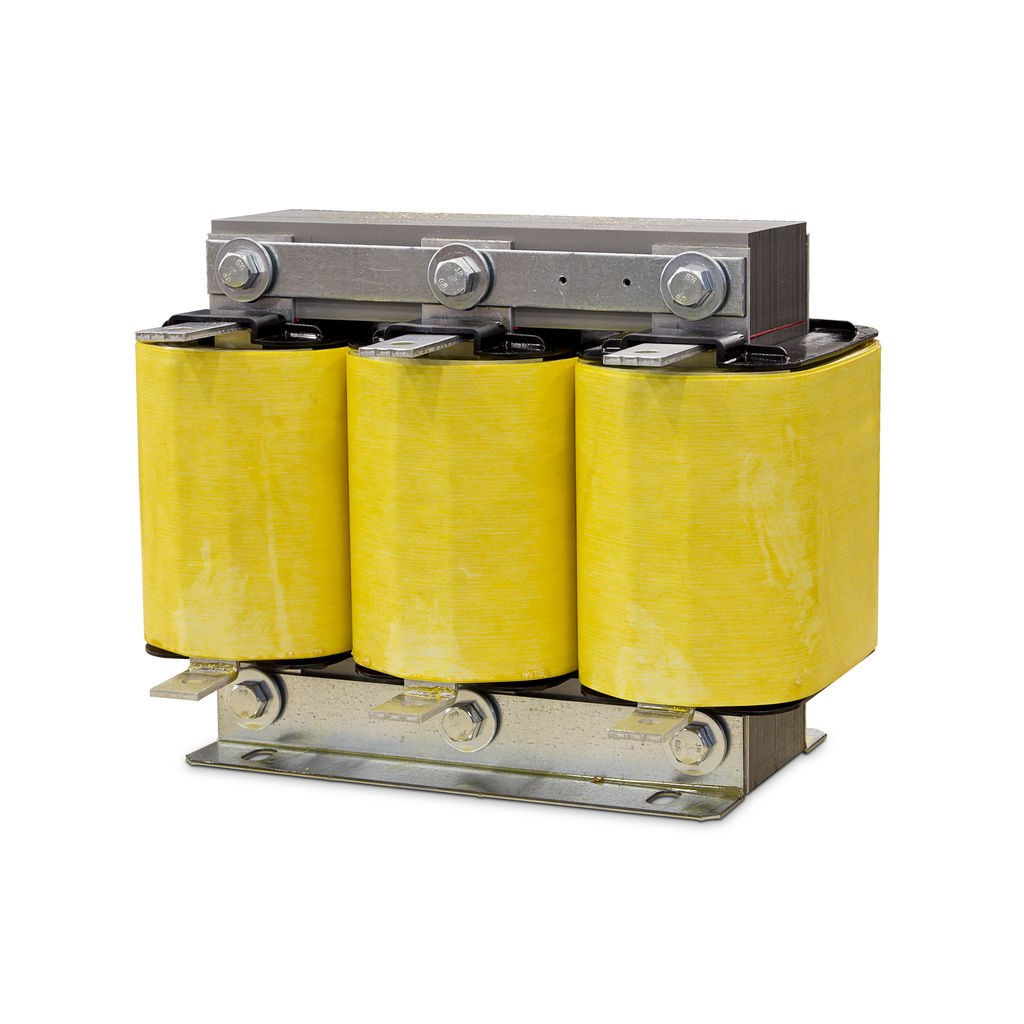

CIRCUTOR P7330M AC LINE REACTOR 0.1mH 300A 50Hz FILTER LRBZ 04-300
