Specifications

Brand	Circutor
Series	DIR2
Nominal Current (In)	0.25 A ~
Nominal Voltage (AC Primary)	400 V ~ ±10%
Rated Frequency	50 … 60 Hz
Electrical Life	10x10 4 maniobras
Mechanical Life	10x106 operations
Rated Thermal Current (Ith)	10 A
AC11 Ie/Ue	10 A / 250 V ~
Allowable Overload	1.2 In
ETIM 9.0 Class	EC002758
Permanent Overload (Per Transformer)	1.2 In
Consumption (Per Transformer)	< 0.05 VA
C/K Trip Adjustment Range	0.15 … 2
Connection Delay Tc	5 s
Disconnection Delay Tr	2 s
DC11 Ie/Ue	0.3 A / 110 V dc
Working Temperature	-10 … +50 ºC
Protection Class	IP 40
Electrical Safety, Insulation	Double-insulated electric shock protection class II (IEC 61010-1)
AC Power Consumption	< 3 VA
Depth	73 mm
Height	85 mm
Weight	0.1
Width	35 mm
Electrical Safety, Maximum Height (M)	2000
Relative Humidity (Without condensation)	95%
Standards	EN 61010, EN 61000-3-2, EN 61000-3-3, EN 50081-2, EN 50082-1, EN 50082-2, EN 61000-4-2, EN 61000-4-4, EN 61000-4-8, EN 61000-4-5, EN 61000-4-11, UL 94
Certifications	UL

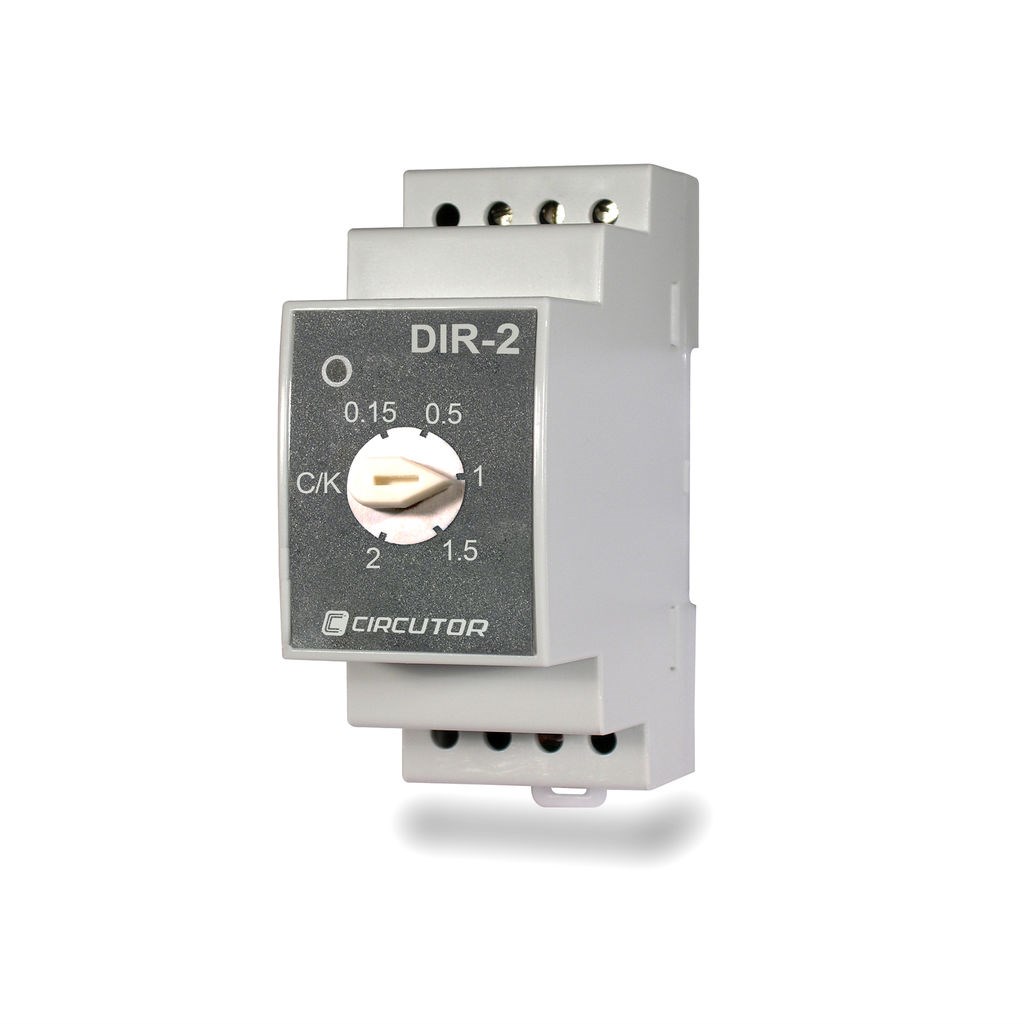

CIRCUTOR R11211 REACTIVE RELAY 400VAC 250 mA CONTACTOR DIR2
