Specifications

Brand	Circutor
Series	CSB
Rated Insulation Voltage (Ui)	3 / 15 kV
Rated Frequency	50 … 60 Hz
ETIM 9.0 Class	EC002758
Voltage	230 V
Surge	10 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours
Discharge Resistance	75 V / 3 min
Losses (W)	Dielectric: < 0,2 W / kvar Total: < 0,4 W / kvar
Permanent Overload (Electrical)	1.3 In
Circuit Breaker Type	Dielectric regeneration Internal fuse Overpressure system Vermiculite
Envelope	Treated and painted steel in RAL 3005 colour
Fastening/Setting	Vertical / Horizontal. Minimum distance between condensers 4 cm
Thermal Management	Natural or forced depending on the cabinet
Torque Setting	15 Nm
Cable Gauge at Current Terminals	Power M10
Working Temperature	Tª class D: Daily average: 45 ºC, annual average: 35 ºC, maximum: 55 ºC, minimum: -25 ºC
Protection Class	IP 42 with terminal cover
Tolerance	-5 … +15 %
Depth	120 mm
Height	520 mm
Weight	11
Width	360 mm
Electrical Safety, Maximum Height (M)	2000
Relative Humidity (Without condensation)	80%
Standards	IEC 60831-1, UNE-EN 60831-1

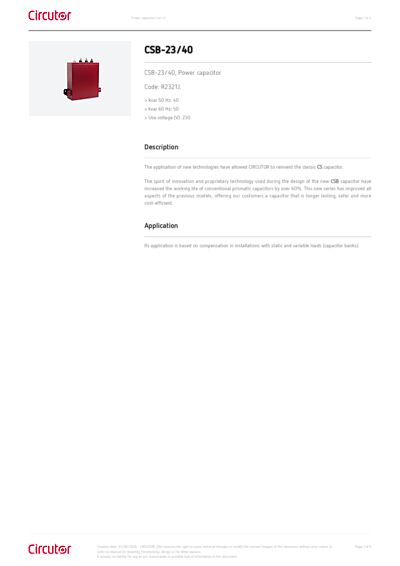

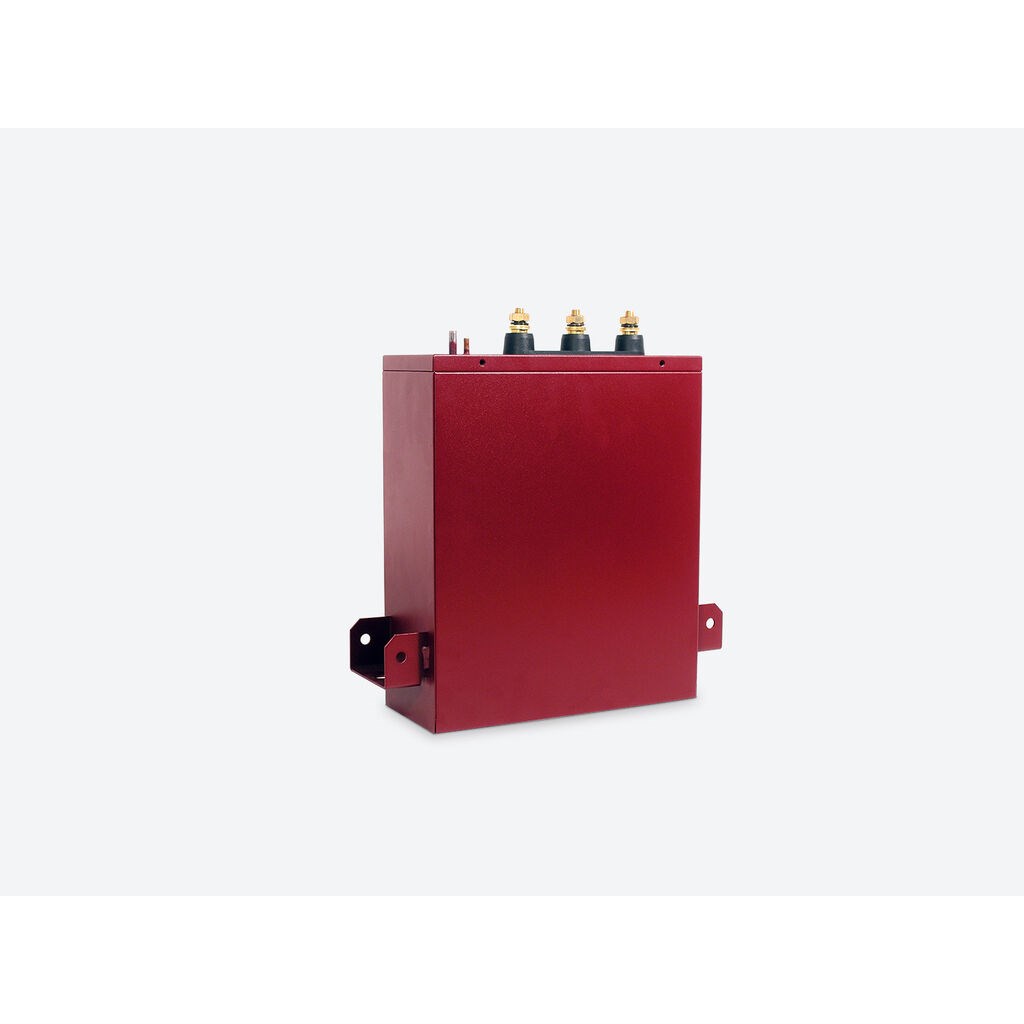

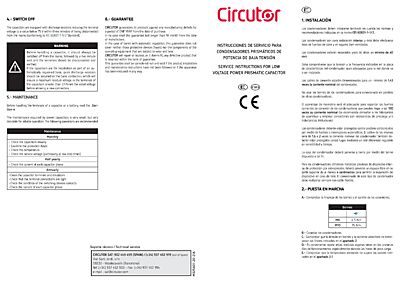

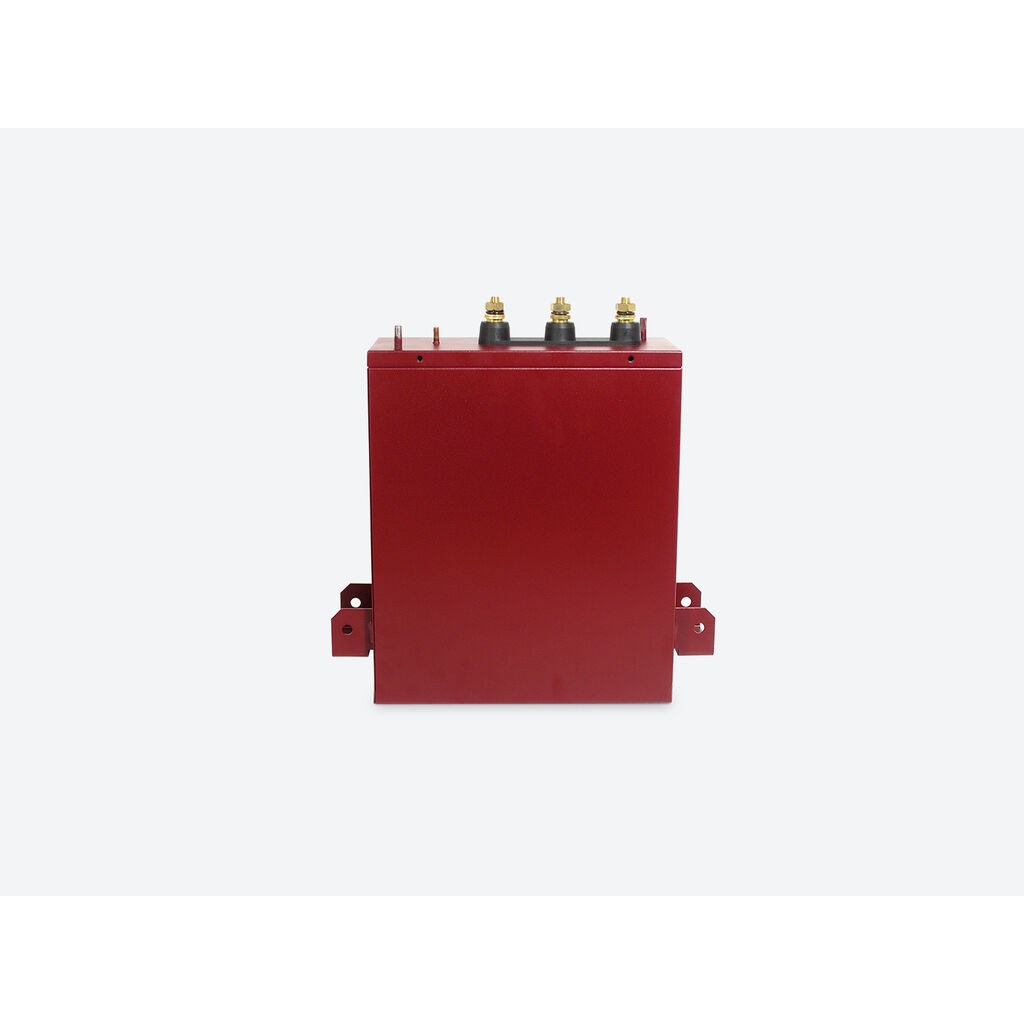

CIRCUTOR R2321J POWER CAPACITOR 230V 40kVAr @ 50Hz CSB-23/40
