Product Code: R35L40

Specifications

Brand	Circutor
Series	OPTIM P&P
Rated Frequency	50 Hz
ETIM 9.0 Class	EC002758
Voltage	400 V (other voltages on request)
Surge	10 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours
Discharge Resistance	75 V / 3 min
Losses (W)	< 0,5 W/kvar
Reinforcement Voltage	440 V
Maneuver Voltage	Contactors: 230 V
Element	Fuses with high cut-off power (APR), type NH-00
Transformation Ratio	In/5 A
Permanent Overload (Per Transformer)	1.3 In
Envelope	Sheet metal RAL 7035 Grey / RAL 3005 Garnet
Fastening/Setting	Vertical / Self-supporting
Thermal Management	Natural or forced according to options
Working Temperature	Tª class D: Daily average: 45 ºC, annual average: 35 ºC, maximum: 55 ºC, minimum: -50 ºC
Protection Class	IP 21
Tolerance	-5% / 10 %
Components	Reactive energy regulator, Computer C Wi-Fi, with digital indication and 6 or 12 relay outputs according to type.
Depth	650 mm
Height	1900 mm
Weight	290
Width	1200 mm
Electrical Safety, Maximum Height (M)	Maximum 1000 m (for higher altitudes, forced ventilation must always be provided).
Relative Humidity (Without condensation)	80%
Standards	IEC 60831-1, IEC 61921, IEC 60439
Optional	Manual circuit breaker at capacitor bank header. Circuit breaker at capacitor bank header Circuit breaker + earth leakage protection at capacitor bank header. Forced ventilation unit + thermostat. Polycarbonate plate to avoid direct exposure. 400/230 V autotransformer (included in OPTIM 8, 9, 8L, 14L, and 16L) Regulator with built-in network analyser and three-phase Computer SMART III measurement. Other frequencies, consult.

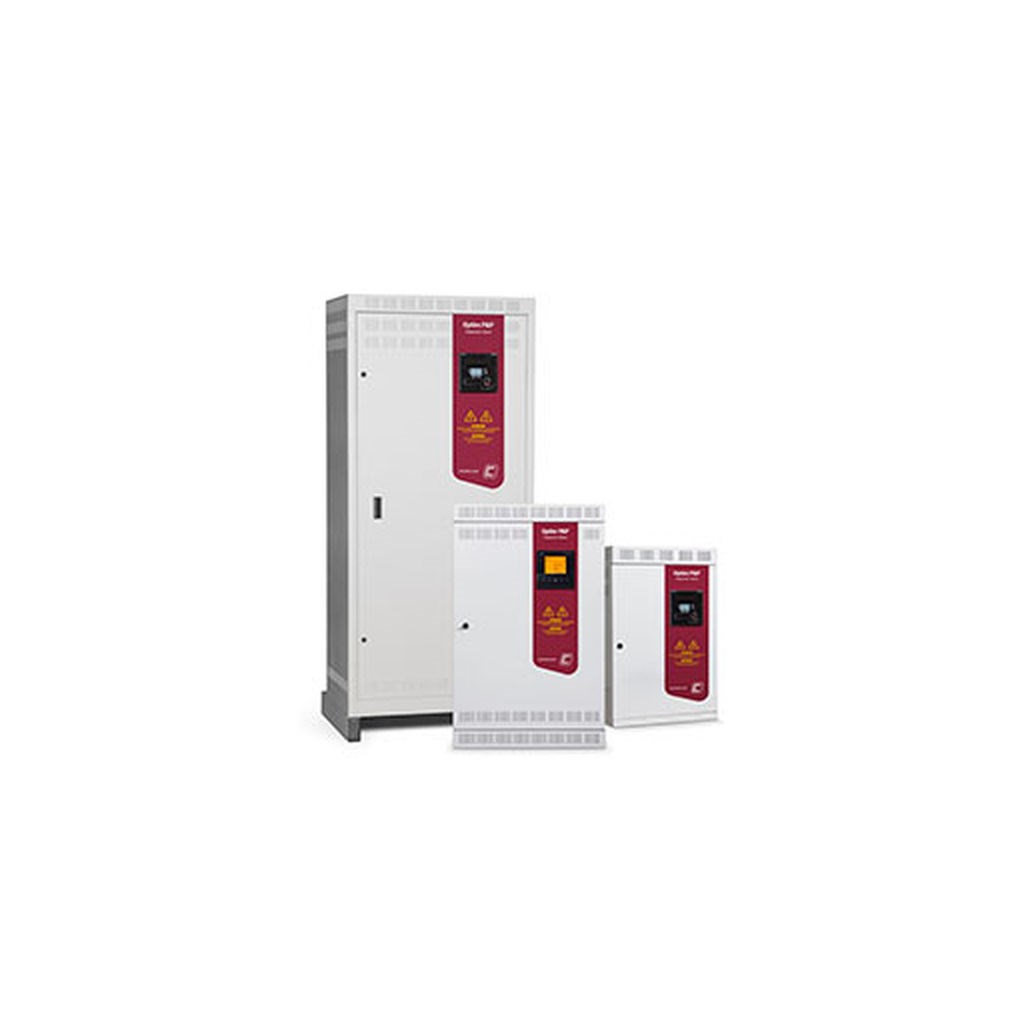

CIRCUTOR R35L40 OPTIM CAP BANK P&P 800 kVAr 440V 8L STEP OPTIM 8L P&P-800-440

Product Code: R35L40

Need full access to stock, pricing, and ordering?

Specifications

Documents

IPD Product Catalogue V17

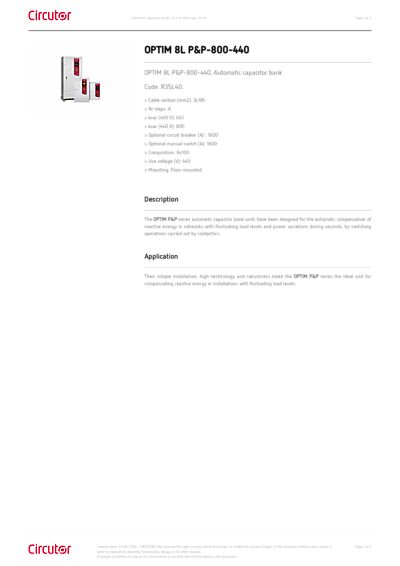

Circutor Datasheet

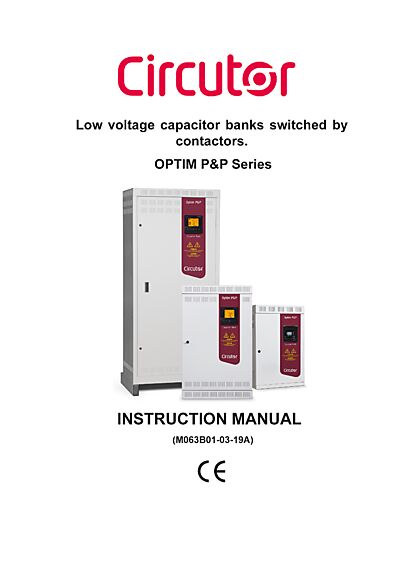

Circutor User Manual
