Specifications

Brand	Circutor
Series	SVGm
Max. Phase Current	145 A (RMS)
Nominal Voltage (AC Primary)	208 … 480 V~ F-F (± 10 %)
Earthing System	TN, TT
Rated Frequency	50 / 60 Hz (± 5 %)
ETIM 9.0 Class	EC002758
Transformation Ratio	Transformer: 5/5A … 5000/5A
Consumption (Per Transformer)	1.5 VA per transformer
Filtering / Response Time	< 100 µs
Parallel Assembly / Installation	Up to 100 devices of different caliber. Connection of transformers only in Master unit.
Working Temperature	-10 … +45 ºC
Protection Class	IP20
AC Power Consumption	2070 W (Max)
Depth	714.5 mm
Height	263 mm
Weight	55
Width	482.5 mm
Electrical Safety, Maximum Height (M)	3000 (2000 m without performance degradation)
Storage Temperature	-20 … +50 ºC
Noise (dB)	< 60 dBA
Standards	IEC 61000-6-4, UNE-EN 55011, IEC 61000-6-2, IEC 62477-1, IEC 61439-1, IEC 60721-3-3 (Indoor conditioned)
Reactive Power Compensation	Selectable: 0.7 inductive ... 1 ... 0.7 capacitive

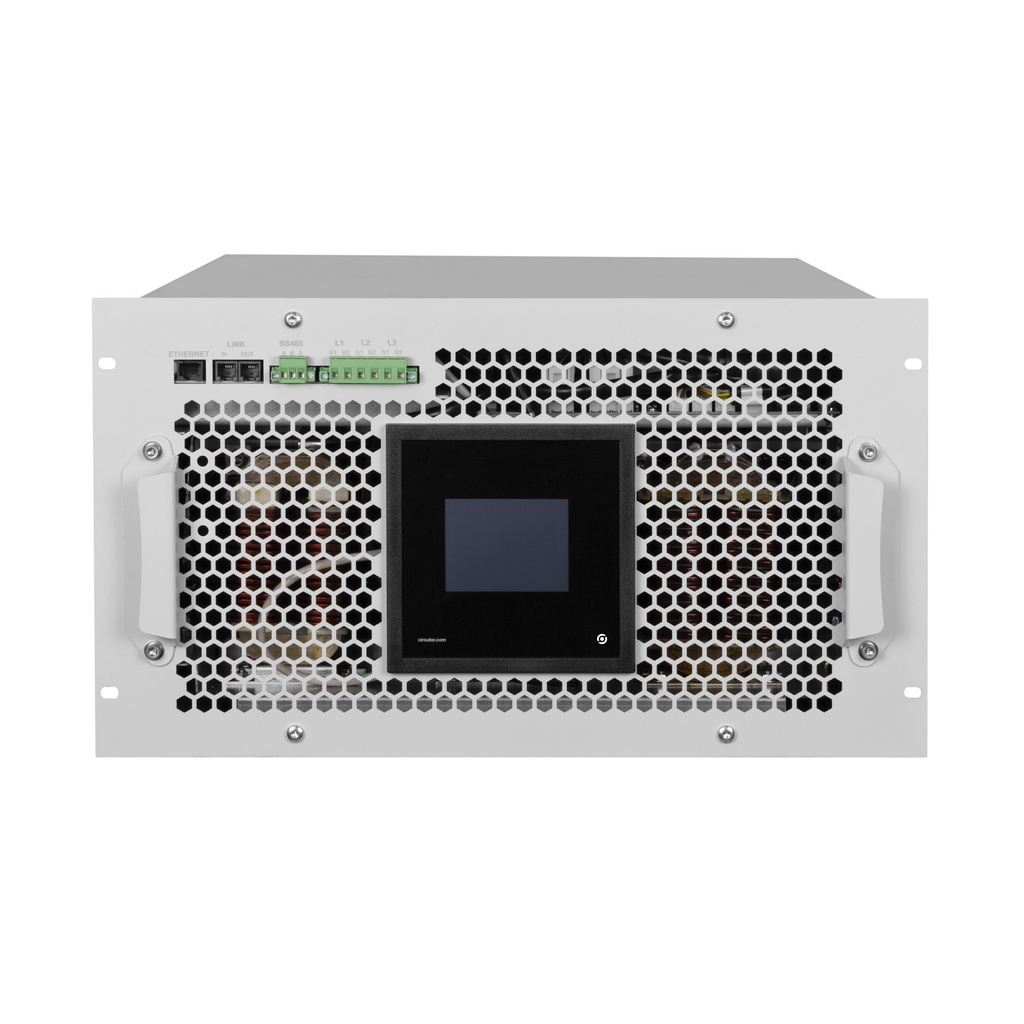

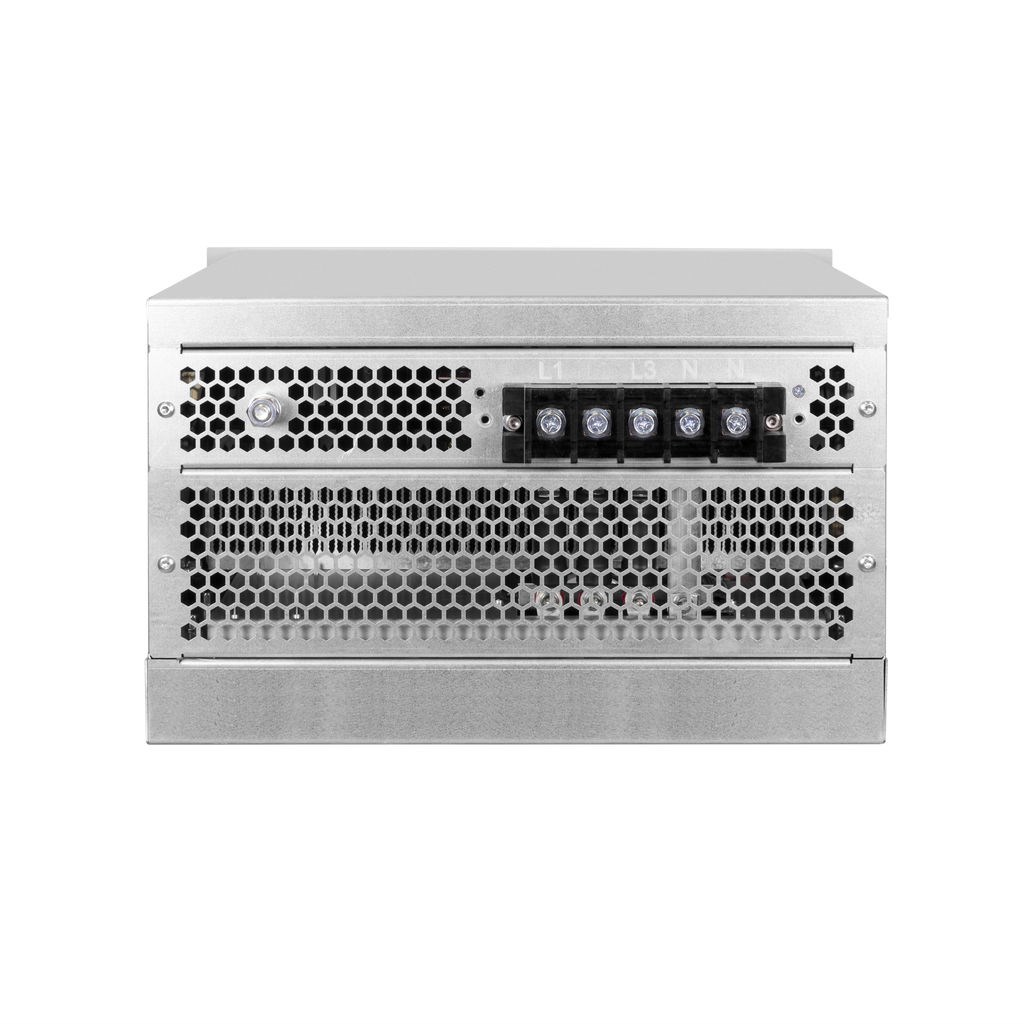

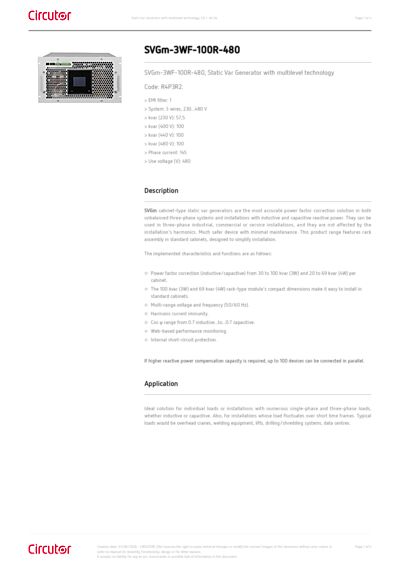

CIRCUTOR R4P3R2 SVG RACK 100KVAR 480V 3-WIRE SVGm-3WF-100R-480
