Specifications

Brand	Circutor
Series	SVGm
Max. Phase Current	84 A (RMS)
Nominal Voltage (AC Primary)	230 … 690 V~ F-F (± 10 %)
Earthing System	TN,TT
Rated Frequency	50 / 60 Hz (± 5 %)
Rated Conditional Short-Circuit Current (Inc)	40 kA
ETIM 9.0 Class	EC002758
Installation Category (AC Supply)	6 kV, CAT III Class 1
Rated Peak Current Ipk	84 kA
Transformation Ratio	Transformer: 5/5A … 5000/5A
Consumption (Per Transformer)	1.5 VA per transformer
Technology / Type (Serial)	RS-485
Protocol (Serial)	Modbus/RTU
Protocol (Network)	TCP/IP, Modbus TCP
Filtering / Response Time	< 100 µs
Parallel Assembly / Installation	Up to 100 devices of different caliber. Connection of transformers only in Master unit.
Working Temperature	-10 … +50 ºC
Protection Class	IP 21 / IK10 (IP 41 on demand)
Electrical Safety, Contamination Level/Class	Category 2
AC Power Consumption	2200 W (max.)
Depth	812 mm
Height	1890 mm
Weight	190
Width	608 mm
Electrical Safety, Maximum Height (M)	5000
Technology / Interface	Ethernet
Relative Humidity (Without condensation)	0 ... 95 %
Storage Temperature	-20 … +50 ºC
Noise (dB)	< 70 dBA
Standards	IEC 61000-6-4, UNE-EN 55011, IEC 61000-6-2, IEC 62477-1, IEC 61439-1, IEC 60721-3-3 (Indoor conditioned)
Rated Diversity Factor (RDF), Simultaneity	1
Reactive Power Compensation	Selectable: 0.7 inductive ... 1 ... 0.7 capacitive

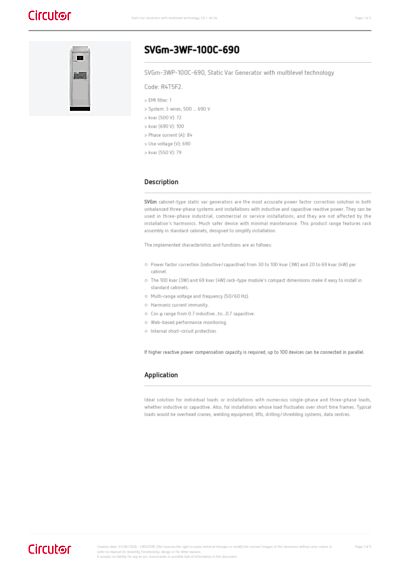

CIRCUTOR R4T5F2 SVG CABINET SVGm-3WF-100C-690
