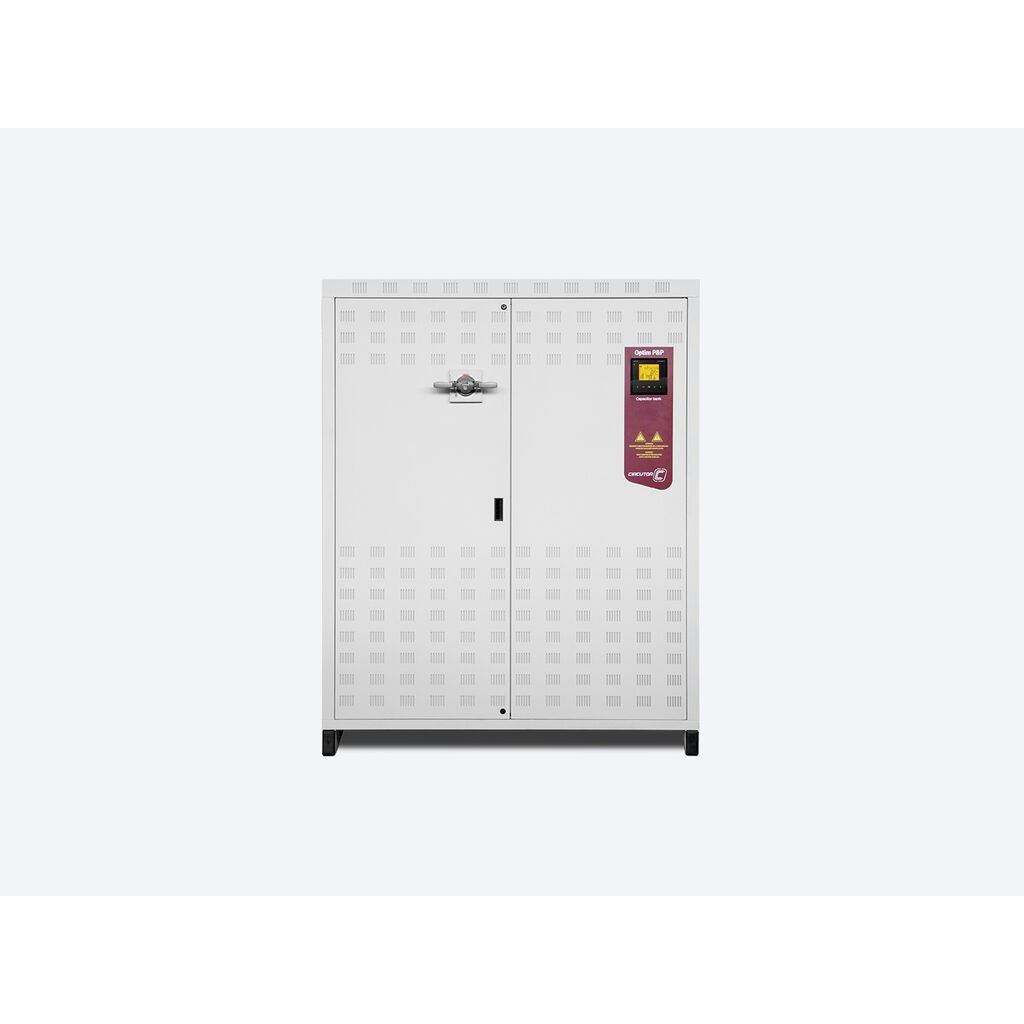

CIRCUTOR R54U44 OPTIM DETUNED P&P 800 kVAr 440V 8-STEP OPTIM FR8-P&P-800-440

Product Code: R54U44.00S0000

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Brand Circutor
Series OPTIM FR P&P
ETIM 9.0 Class EC002758
Voltage 400 V (50 Hz) (other voltages on request)
Surge 10 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours
Discharge Resistance 75 V / 3 min
Losses (W) < 0,5 W/kvar
Reinforcement Voltage 440 V
Maneuver Voltage Contactors: 230 V
Element Individual protection of each step with fuses with high rupture power (HRP). NH-00 Series.
Transformation Ratio In / 5A
Permanent Overload (Per Transformer) 1.3 In
Envelope Sheet metal RAL 7035 Grey / RAL 3005 Garnet
Fastening/Setting Vertical / Self-supporting
Thermal Management Natural or forced according to options
Working Temperature Tª class D: Daily average: 45 ºC, annual average: 35 ºC, maximum: 55 ºC, minimum: -50 ºC
Protection Class IP 21
Tolerance -5% / 10 %
Components CLZ capacitor (460 V) Contactors with pre-insertion block and quick discharge resistor Two-pole protection circuit-breaker for capacitor bank and regulator operations. Power factor regulator of the computer Max series. Detuned filters tuned at 189 Hz (50 Hz) /227 Hz (60 Hz) for the protection against harmonics present in the network and to avoid the problems of resonance with fifth or higher order harmonics. Built-in thermostat for the disconnection of the step in case of excessive temperatures (90 ºC). Auto-transformer.
Depth 650 mm
Height 1900 mm
Weight 582
Width 1500 mm
Electrical Safety, Maximum Height (M) 2000 m
Relative Humidity (Without condensation) 80%
Standards IEC 60831-1, UNE 60831-1, IEC 61921, IEC 60439, IEC 61439
Optional Manual capacitor bank header switch Automatic capacitor bank header switch Automatic switch + Earth leakage protection at the capacitor bank’s header Forced ventilation unit + thermostat Polycarbonate plate to protect against direct contacts

Documents

IPD Product Catalogue V17

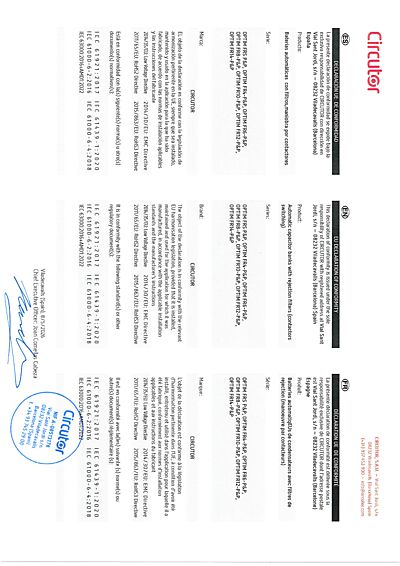

CE Certification

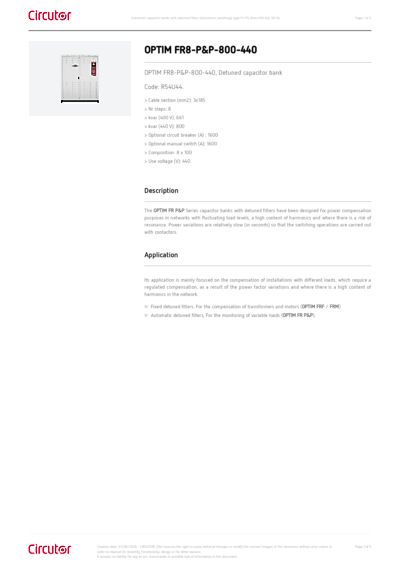

Circutor Datasheet

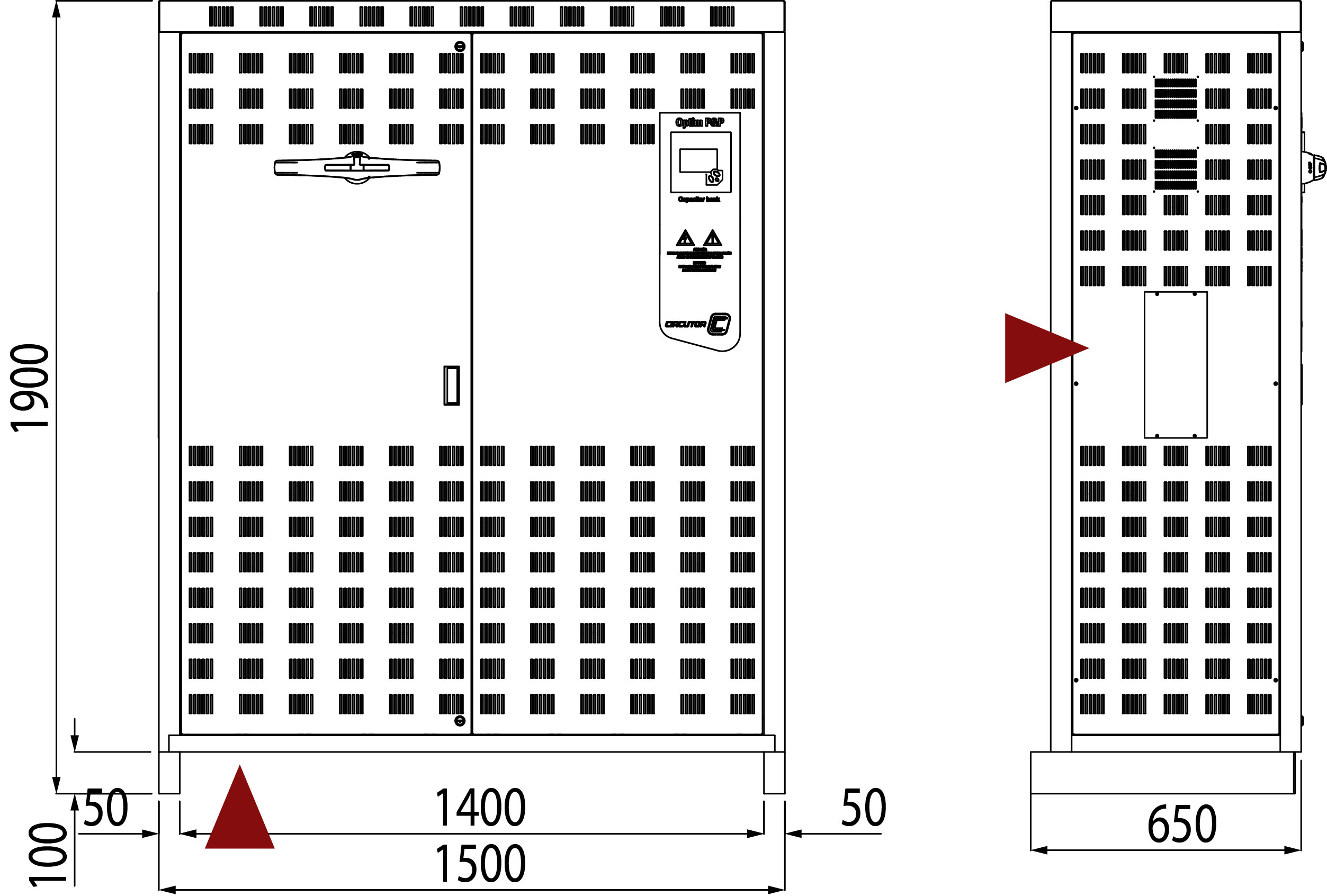

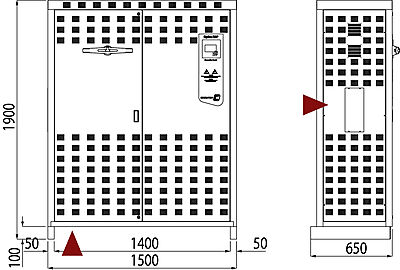

Circutor Dimensions

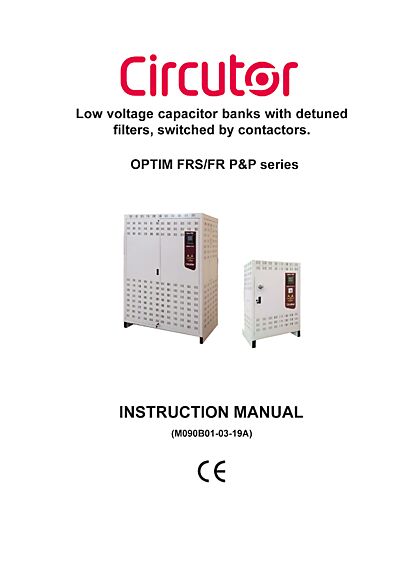

Circutor User Manual
