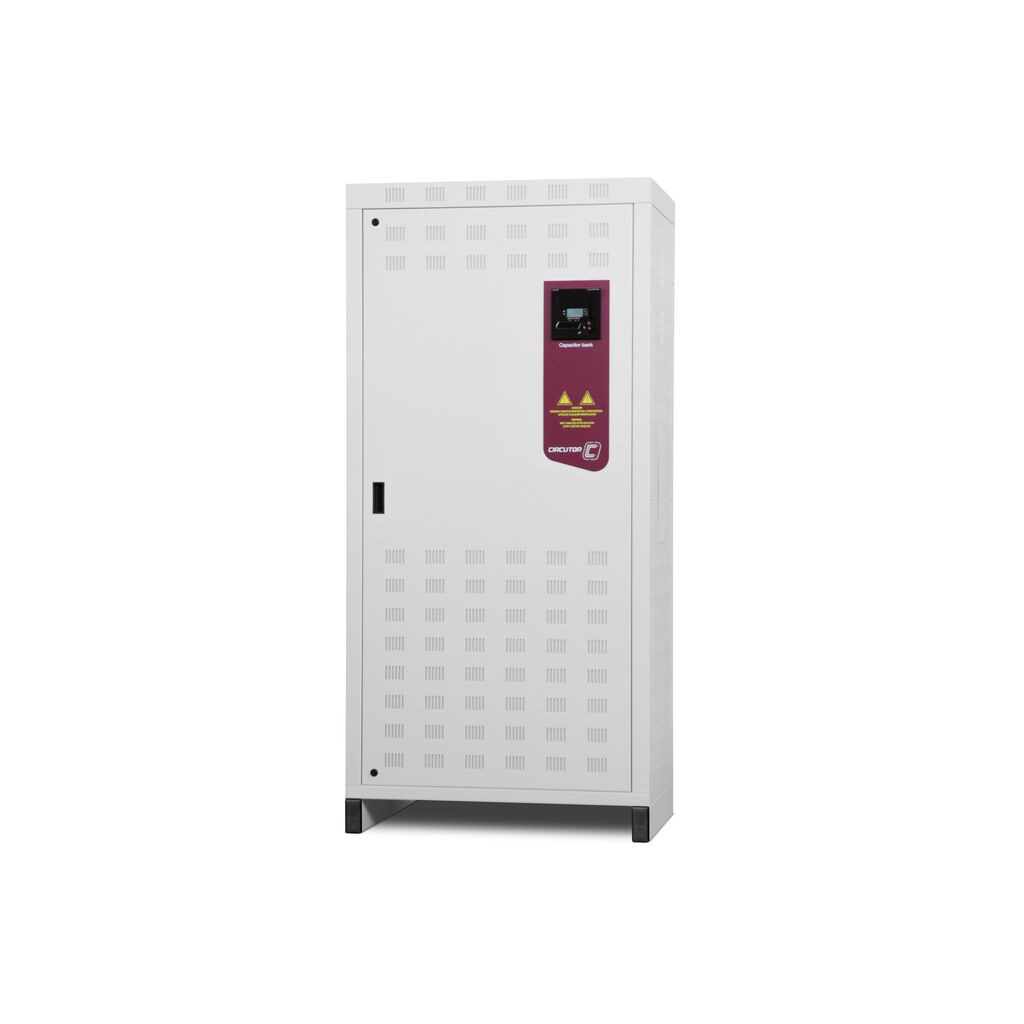

CIRCUTOR R64E25 OPTIM STATIC DET 175 kVAr 440V 50Hz OPTIM FRE4-175-440

Product Code: R64E25.00S0000

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Brand Circutor
Series OPTIM FRE
ETIM 9.0 Class EC002758
Voltage 400 V (50 Hz) (other voltages on request)
Surge 10 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours
Discharge Resistance 75 V / 3 min
Losses (W) < 0,5 W/kvar
Reinforcement Voltage 440 V
Element Protection by stage by fuses with high cut-off power (APR). NH-00 series.
Transformation Ratio In / 5A
Permanent Overload (Per Transformer) 1.3 In
Envelope Sheet metal RAL 7035 Grey / RAL 3005 Garnet
Fastening/Setting Vertical / Self-supporting
Thermal Management Natural or forced according to options
Working Temperature Tª class D: Daily average: 45 ºC, annual average: 35 ºC, maximum: 55 ºC, minimum: -50 ºC
Protection Class IP 21
Tolerance -5% / 10 %
Components CLZ capacitor Static switching unit on each stage, made up of static contactors (thyristors) Two-pole circuit breaker protection for capacitor bank and regulator operations. Reactive energy regulator of the Computer MAX-f Built-in thermostat on the heatsink for disconnecting the stage in the case of excessive temperatures (90 ºC) Detuned filters tuned to 189 Hz for protection against harmonics present in the network and for preventing resonance with harmonics of the 5th order or higher.
Depth 650 mm
Height 1900 mm
Weight 225
Width 900 mm
Electrical Safety, Maximum Height (M) 2000 m
Relative Humidity (Without condensation) 80%
Standards UNE-EN 61921, UNE-EN 61439-1, UNE EN 60831
Optional Manual switch on capacitor bank header Circuit breaker on capacitor bank header Circuit breaker + earth leakage protection on capacitor bank header Forced ventilation unit + thermostat Polycarbonate sheet for protection against direct contacts 400/230 V autotransformer

Documents

IPD Product Catalogue V17
CE Certification

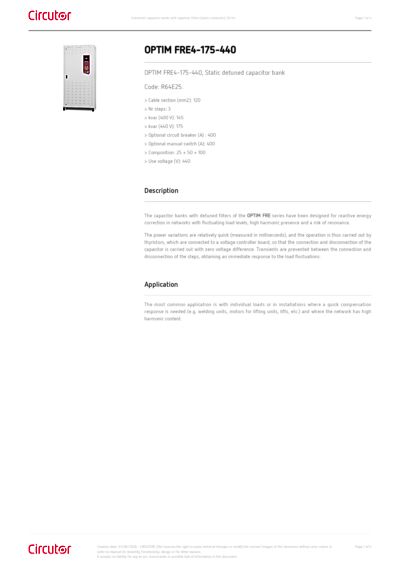

Circutor Datasheet

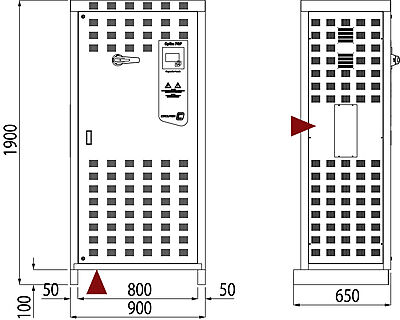

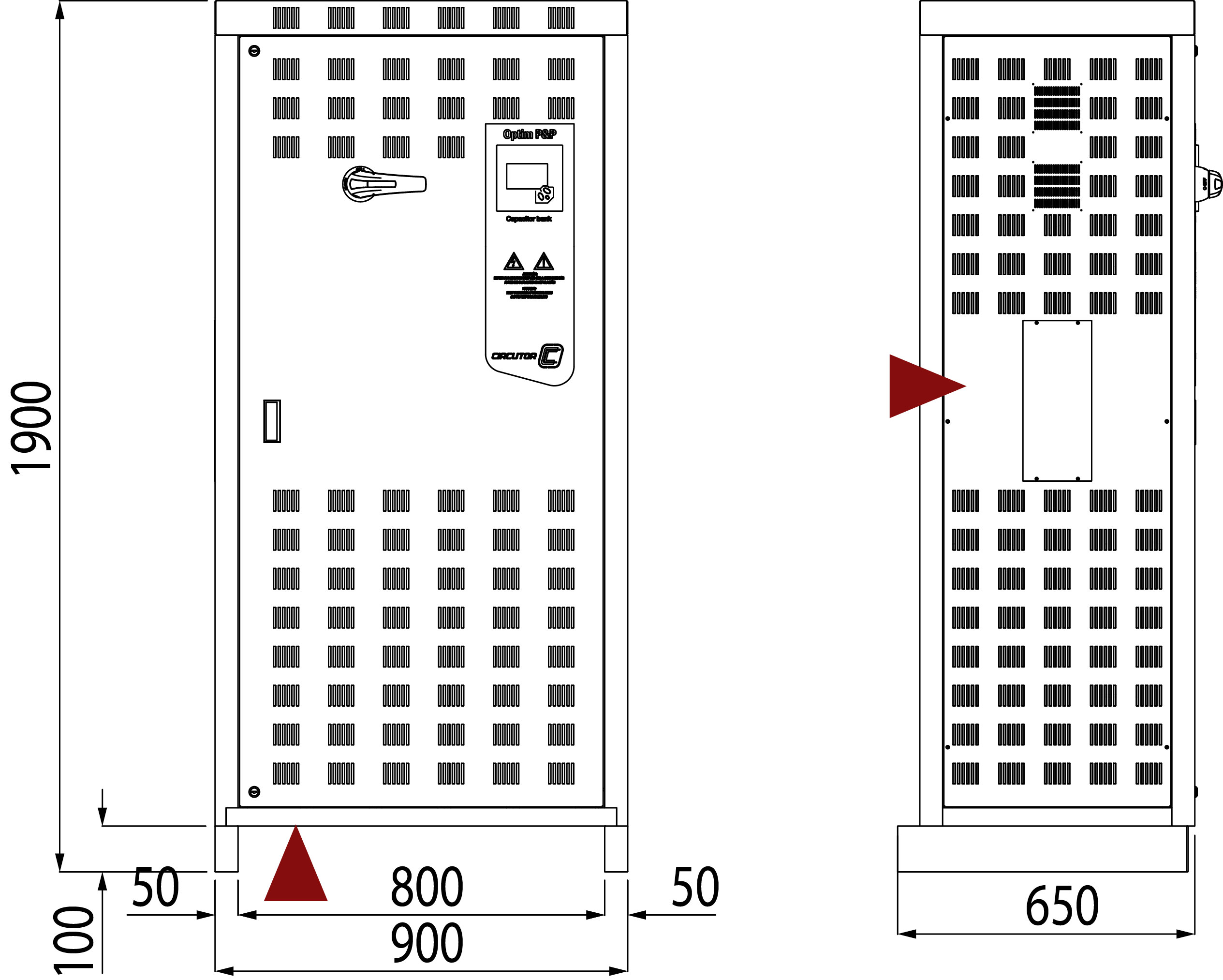

Circutor Dimensions

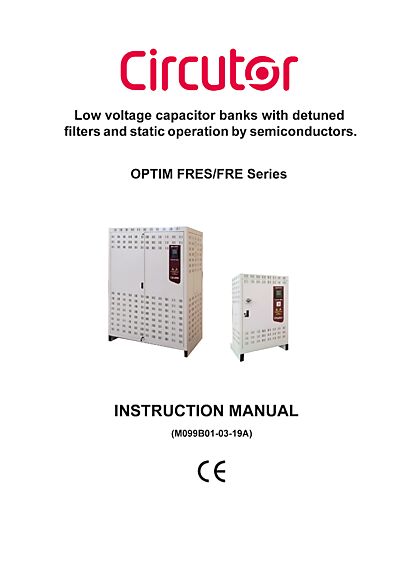

Circutor User Manual
