Product Code: R7JR6P

Specifications

Brand	Circutor
Series	AFQm-R
Connection Type	Network: M8 ring terminal, Ground: M10 ring terminal, Current: 6-pole connector, RS-485: 3-pole connector, Ethernet: RJ-45
Max. Phase Current	70 A (RMS)
Nominal Voltage (AC Primary)	208 … 690 V~ F-F (± 10 %)
Earthing System	TN, TT
Rated Frequency	50 / 60 Hz (± 5 %)
Rated Power	83650 VA
Rated Conditional Short-Circuit Current (Inc)	40 kA
ETIM 9.0 Class	EC002758
Installation Category (AC Supply)	4 kV, CAT III Class 1
Rated Peak Current Ipk	84 kA
Current Crest Factor	2:1
Transformation Ratio	5 … 5000 / 5A
Voltage Harmonics (THD)	25 % (max)
Technology / Type (Serial)	RS-485
Protocol (Serial)	Modbus/RTU
Protocol (Network)	TCP/IP, Modbus TCP
Filtering / Response Time	2º … 50º harmonic (selectable) / < 100 µs
Parallel Assembly / Installation	Up to 100 devices of different caliber. Connection of transformers only in Master unit.
Priority Scheduling	selectable
Cable Gauge at Current Terminals	2.5 mm²
Cable Gauge at Power Supply Terminals	Grid: Ø 23 mm
Communications Cable Cross-Section	RS-485: 2.5 mm²
Working Temperature	-10 ... +45 ºC
Protection Class	IP 20
Depth	714.5 mm
Height	266 mm
Weight	55
Width	482.5 mm
Electrical Safety, Maximum Height (M)	3000 (2000 m without performance degradation)
Technology / Interface	Ethernet
Relative Humidity (Without condensation)	0 ... 95 %
Storage Temperature	-20 ... +50 ºC
Noise (dB)	< 70 dBA
Display Type	TFT color, 3.5" touchscreen
Standards	IEC 61000-6-4, UNE-EN 55011, IEC 61000-6-2, IEC 62477-1, IEC 61439-1
Rated Diversity Factor (RDF), Simultaneity	1
Reactive Power Compensation	selectable

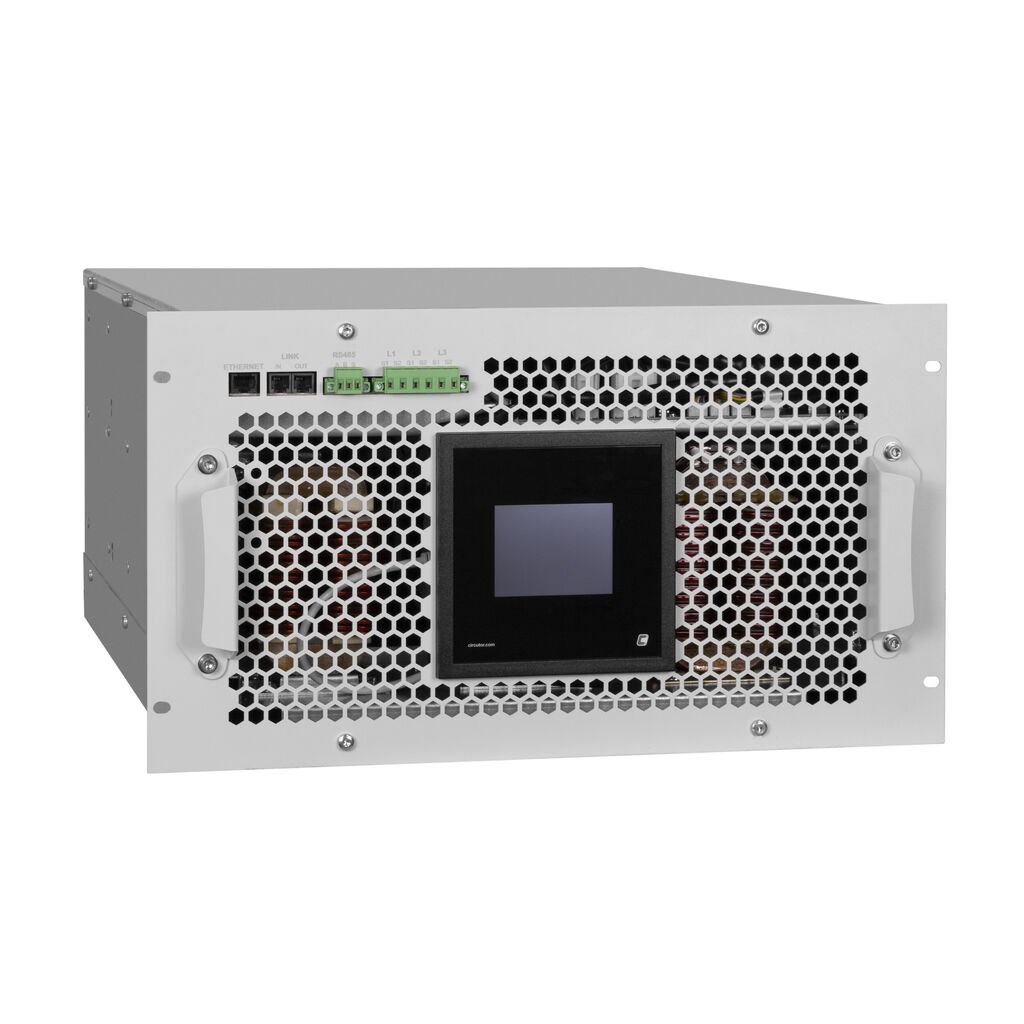

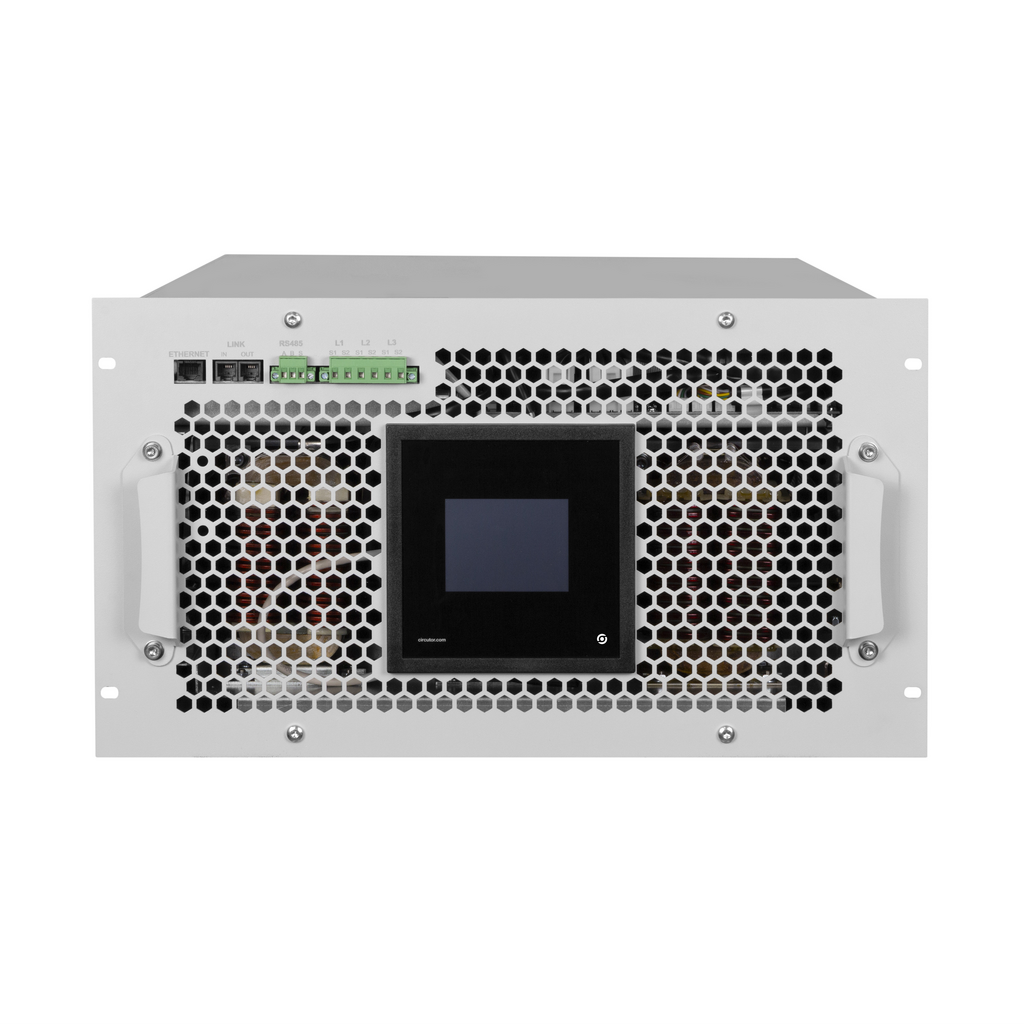

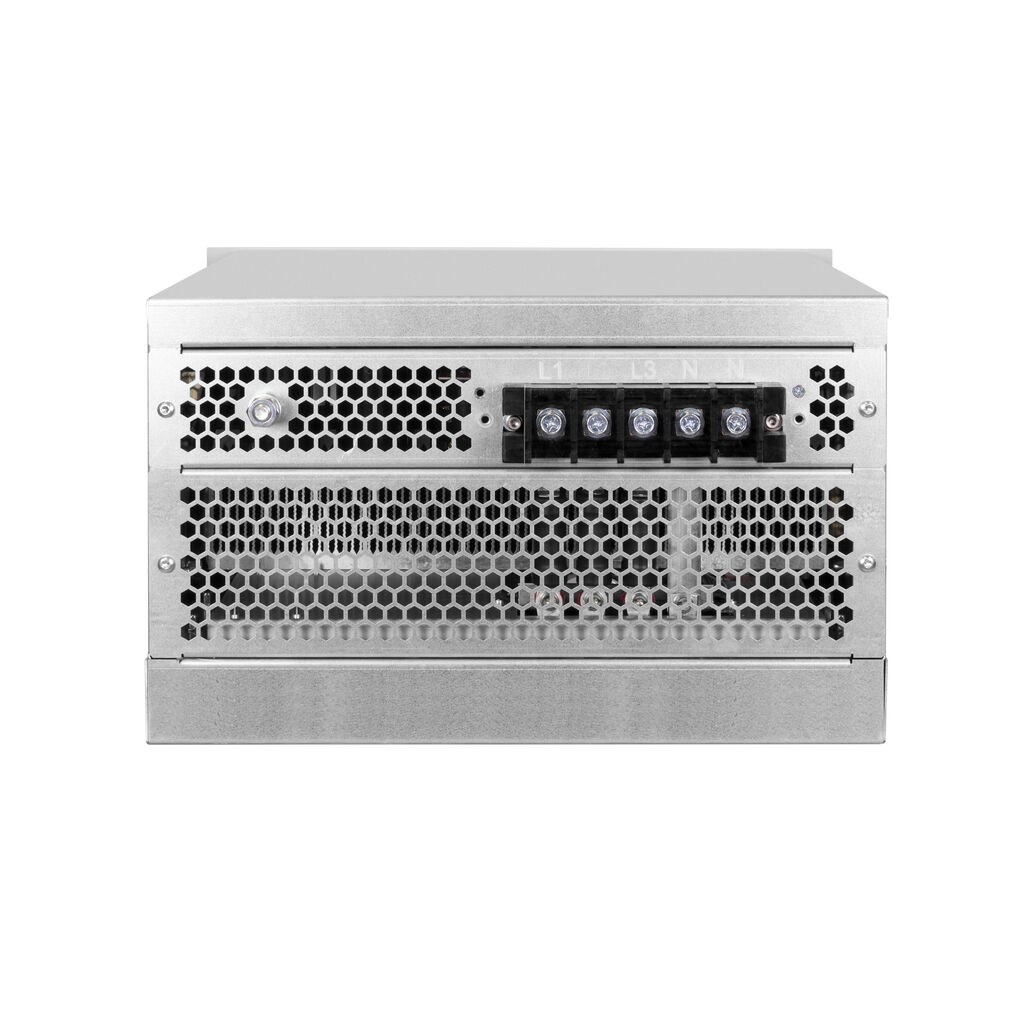

CIRCUTOR R7JR6P AFQM ACTIVE FILTER 70A 690V 3-WIRE RACK AFQm-3WP-070R-690

Product Code: R7JR6P

Need full access to stock, pricing, and ordering?

Specifications

Documents

IPD Product Catalogue V17

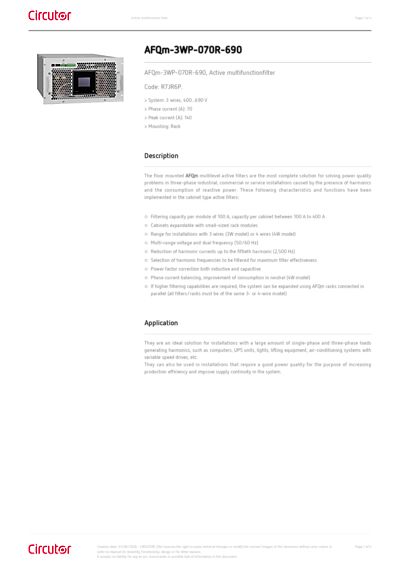

Circutor Datasheet

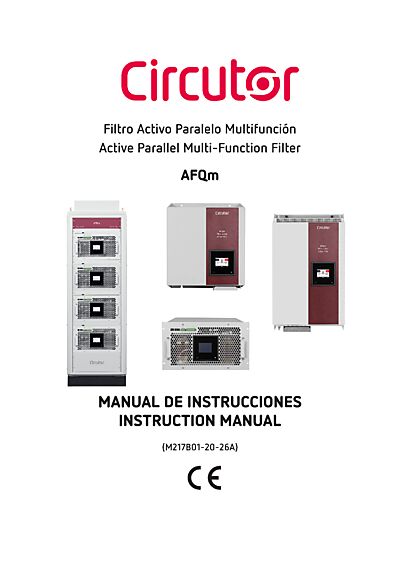

Circutor User Manual
