Specifications

Product Type	DC/DC converter
Brand	Puls
Series	CD
Connection Type	Screw Terminal
Input Voltage DC	DC 18 V - 32.4 V
Output Current - Range	10 - 10 A
Output Power	50 W
Output Voltage - Nominal	5 Vdc
Output Voltage - Range	5 - 5.5 V
Timing Range	10 ms
Efficiency	0.815
Power Loss	11.5 W
Rated Current	10 A
Rated Power	50 W
Rated Voltage	24 VDC
Terminal Type	Screw terminals
Mounting Style	DIN rail
Mounting Type	DIN Rail
Depth	102 mm
Height	32 mm
Weight	425 g
Width	124 mm
Noise Level	50 mVpp
Approvals / Conformity	CE, Exemption Letter, IEC 61010-2-201 CB, UL 61010-2-201 CAN/USA, IEC 60950 RoHS, REACH CMRT/ EMRT
Operating Temperature	-25 °C to 70 °C
IP Rating	IP20
Standards and Approvals	EU Declaration of Conformity, IEC 60950 CB Scheme, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity

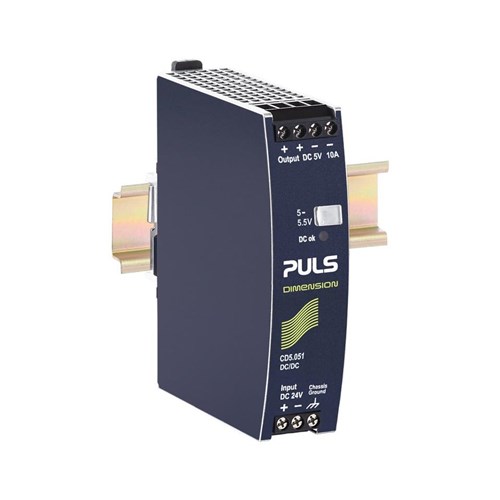

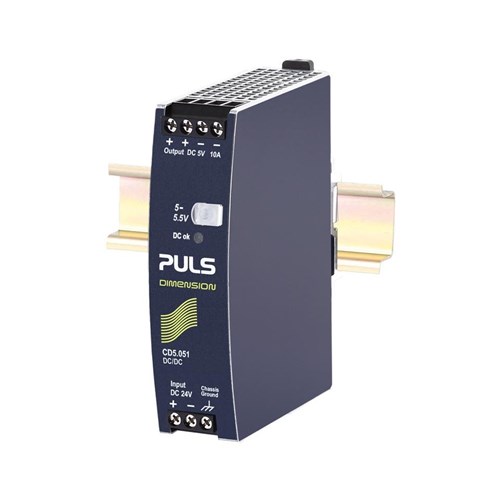

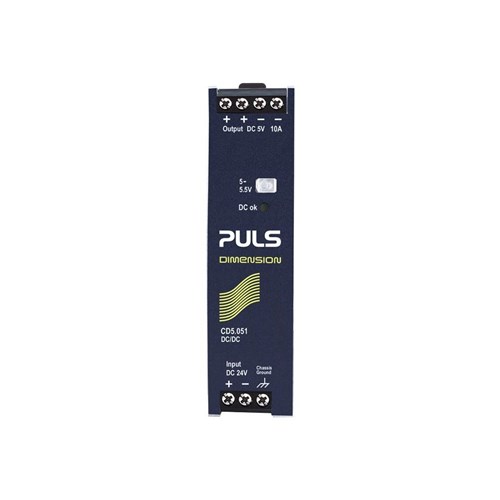

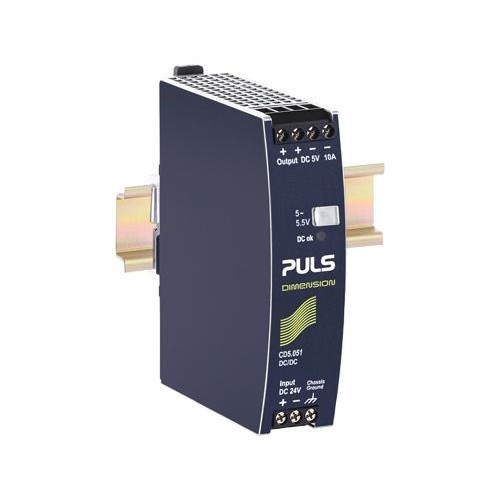

Puls CD5.051 DC/DC Converter 24VDC 10A 50 Watt
