Specifications

Product Type	Power Supply
Brand	Puls
Series	Dimension C
Connection Type	Screw Terminal
Input Voltage AC	380 - 480 V (-15 %/+20 %)
Output Current - Nominal	8.6 A at 28 V 10 A at 24 V
Output Current - Range	10 - 8.6 A
Output Power	240 W
Output Voltage - Nominal	24 Vdc
Output Voltage - Range	24 - 28 V
Suitable For	3 Phase System
Current Setting Range	Active
Efficiency	0.928
Power Loss	18.6 W
Rated Current	4 A
Rated Power	240 W
Rated Voltage	380-480 VAC, 24-28 VDC
Terminal Type	Screw terminals
Mounting Style	DIN rail
Mounting Type	DIN Rail
Depth	117 mm
Height	124 mm
Weight	0.75 Kg
Width	62 mm
Conformal Coating	Yes
Noise Level	50 mVpp
Operating Temperature	-25 °C to 70 °C
Standards and Approvals	CE EU Declaration of Conformity, IEC 60950 CB Scheme, Class I Div. 2 USA-CSA, Marine DNV, UK Declaration of Conformity, Class I Div. 2 Canada-CSA, Marine ABS, SEMI F47
Inrush Current	4 A, 4 A

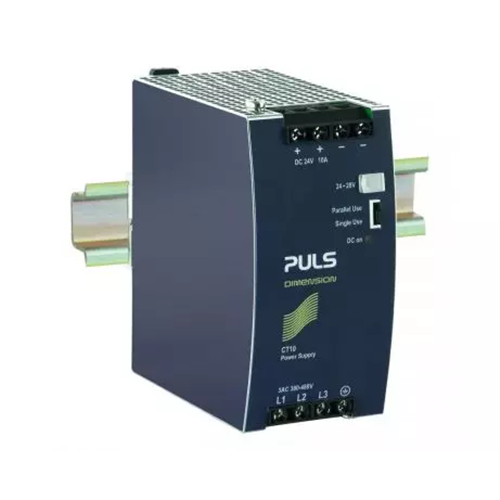

Puls CT10.241-C1 Power Supply 380-480VAC 24-28VDC 4A 240 Watt 18.6 Watt DIN Rail Mount Screw Terminal
