Specifications

Product Type	DIN rail power supplies
Brand	PULS
Series	Q-Series
Input Voltage AC	100-240V
Input Voltage DC	110 V - 150 V
Output Current - Nominal	15A
Output Current - Range	15 - 13.5 A
Output Power	180 W
Output Voltage - Nominal	12V
Output Voltage - Range	12 - 15 Vdc
Efficiency	91.5 / 91.8%
Terminal Type	Spring clamps
Mounting Style	DIN rail
Depth	117mm
Height	124mm
Weight	930 g
Width	60mm
Approvals / Conformity	UL 508,IEC 61010,IEC 60950-1,UL 60950-1,Class I Div 2 Marine (DNV GL),Marine (ABS),SEMI F47,VDMA 24364,IEC 60068-2-60,ISA-71.04-1985,CE,REACH,EAC TR
Operating Temperature	-25 °C to 70 °C
IP Rating	IP20

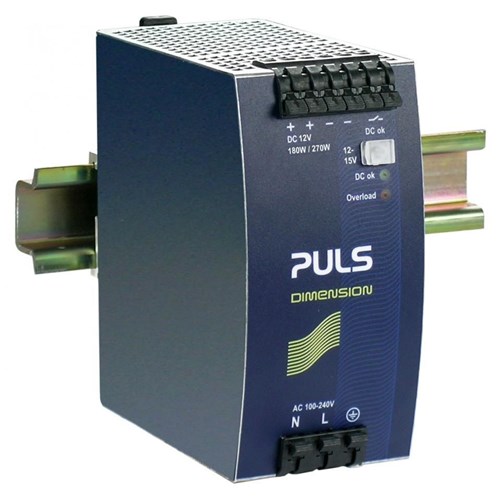

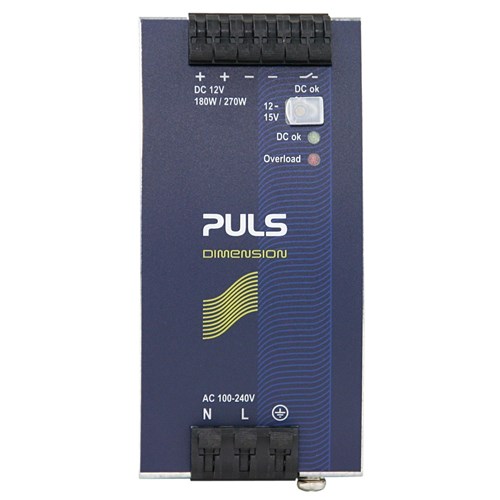

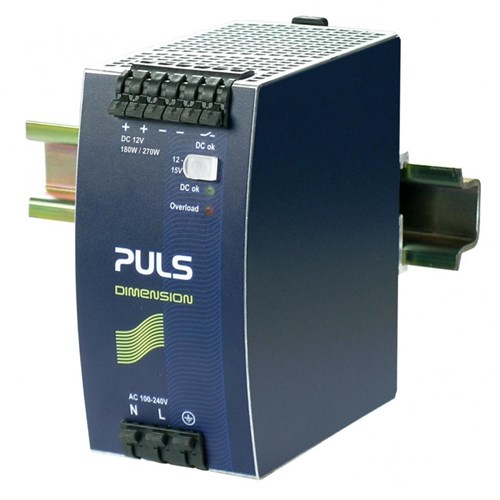

Puls QS10.121 Power Supply 1PH 110-150VDC 12VDC 15A 180 Watt 16.1 Watt DIN Rail Mount Spring Clamp IP20
