Specifications

Product Type	Power Supply
Brand	Puls
Series	Dimension Q
Connection Type	Spring Clamp
Input Voltage AC	100-240 V
Input Voltage DC	110-150 V
No. of Phases	1
Output Current - Nominal	8 A
Output Power	240 W
Output Voltage - Nominal	30 Vdc
Output Voltage - Range	28 – 32 Vdc
Current Setting Range	Active
Efficiency	92.6 / 93.5% at 120 / 230Vac
Input Type	Wide-Range
Power Loss	16.7 W
Rated Current	8 A
Rated Power	240 W
Rated Voltage	110-150 VDC, 28 VDC
Terminal Type	Spring-clamp
Mounting Style	DIN rail
Mounting Type	DIN Rail
Depth	117 mm
Height	124 mm
Weight	900 g
Width	60 mm
Noise Level	50 mVpp
Operating Temperature	-25 °C to 70 °C
IP Rating	IP20
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, IEC 61010-2-201 CB Scheme, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Inrush Current	4 A, 7 A

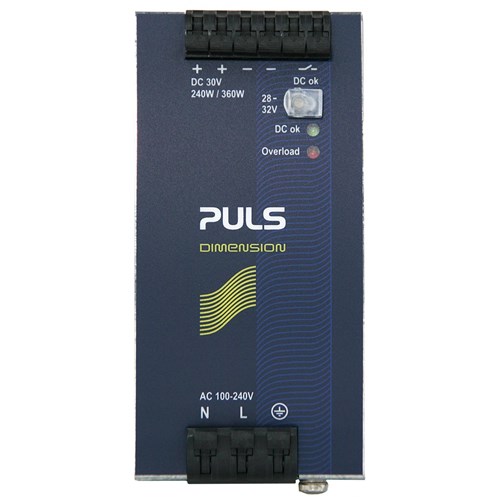

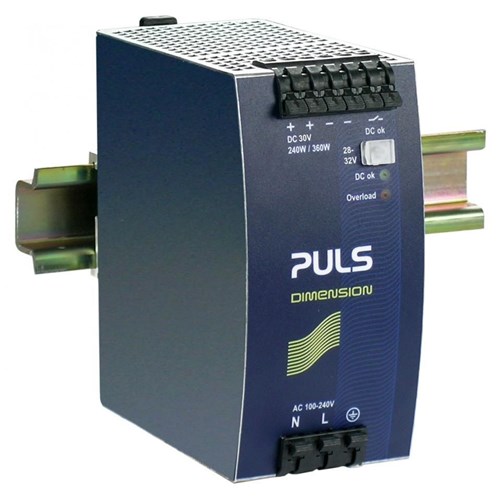

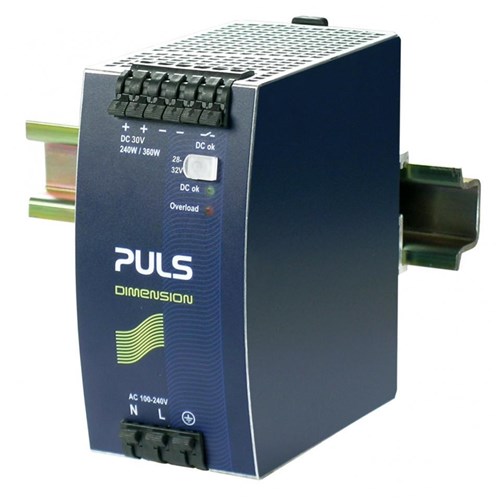

Puls QS10.301 Power Supply 1PH 110-150VDC 28VDC 8A 240 Watt 16.7 Watt DIN Rail Mount Spring Clamp IP20
