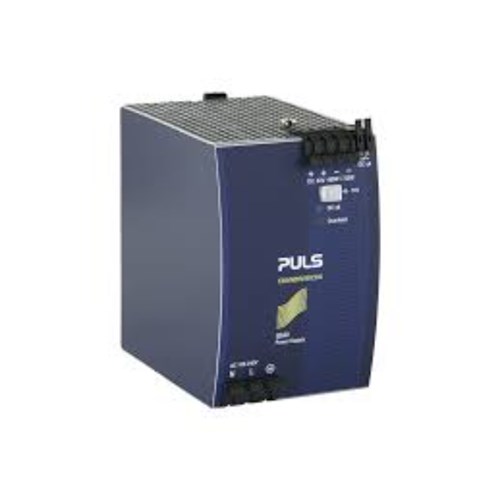

Puls QS20.481-C1 Power Supply 1PH 100-240VAC 48VDC 10-8.7A 480 Watt DIN Rail Mount Spring Clamp IP20

Product Code: QS20.481-C1

1

Specifications

Product Type	Power Supply
Brand	PULS
Series	Q
Ambient Temperature	-25 to 70 deg C
Connection Type	Spring Clamp
Degree of Protection	IP20
Derating Temperature	12 W/deg C
Harmonic Correction	Active
Inrush Current	9 A, 7 A
Inrush Current Limitation	Active
Mounting Type	DIN Rail
Phase	1
Power Reserve Type	50%
Rated Current	10-8.7 A
Rated Power	480 W
Rated Voltage	100-240 VAC, 48 VDC
Ripple and Noise Voltage	100 mVpp
Standards and Approvals	IEC 60950-1

Documents

IPD Product Catalogue V17

Installation

PULS Datasheet
