Specifications

Product Type	Power Supply
Brand	Puls
Series	Dimension Q
Connection Type	Screw Terminal
Input Voltage AC	200 -240 V
No. of Phases	1
Output Current - Nominal	40 A
Output Current - Range	40 – 34.3 A
Output Power	960 W
Output Voltage - Nominal	24 Vdc
Output Voltage - Range	24 - 28 Vdc
Current Setting Range	Active
Efficiency	94.6% at 230Vac
Power Loss	54.8 W
Rated Current	40 A
Rated Power	960 W
Rated Voltage	200-240 VAC, 24 VDC
Terminal Type	Screw Terminals
Housing Material	Aluminium body, Steel cover
Mounting Style	DIN rail
Mounting Type	DIN Rail
Depth	127 mm
Height	124 mm
Weight	1800 g
Width	125 mm
Noise Level	100 mVpp
Operating Temperature	-25 °C to 70 °C
IP Rating	IP20
Standards and Approvals	EU Declaration of Conformity, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Inrush Current	14 A

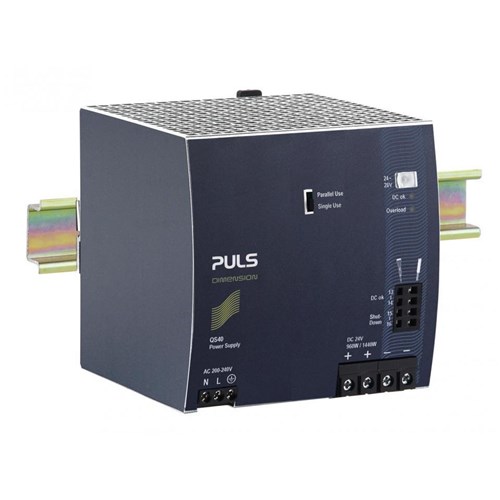

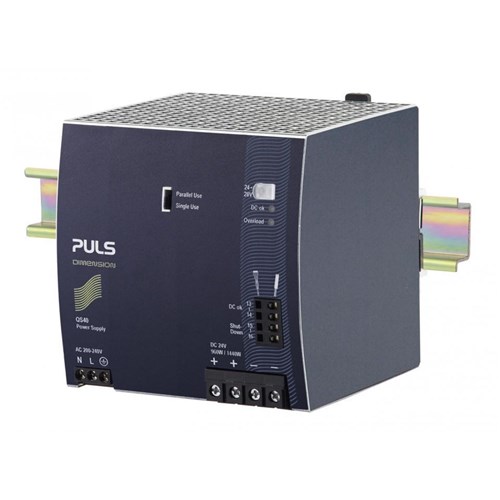

Puls QS40.244 Power Supply 1PH 200-240VAC 24VDC 40A 960 Watt 54.8 Watt DIN Rail Mount Screw Terminal IP20
