Specifications

Product Type	Power Supply
Brand	Puls
Series	Dimension Q
Connection Type	Screw Terminal
Input Voltage AC	100-240 V
No. of Phases	1
Output Current - Nominal	26.7 A
Output Current - Range	26.7 – 22.9 A
Output Power	960 W
Output Voltage - Nominal	36 Vdc
Output Voltage - Range	36 - 42 Vdc
Current Setting Range	Active
Efficiency	93.5 / 94.6% at 120 / 230Vac
Input Type	Wide-Range
Power Loss	54.8 W
Rated Current	26.7 A
Rated Power	960 W
Rated Voltage	100-240 VAC, 36 VDC
Terminal Type	Screw Terminals
Housing Material	Aluminium body, Steel cover
Mounting Style	DIN rail
Mounting Type	DIN Rail
Depth	127 mm
Height	124 mm
Weight	1900 g
Width	125 mm
Noise Level	130 mVpp
Operating Temperature	-25 °C to 70 °C
IP Rating	IP20
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Inrush Current	17 A, 11 A

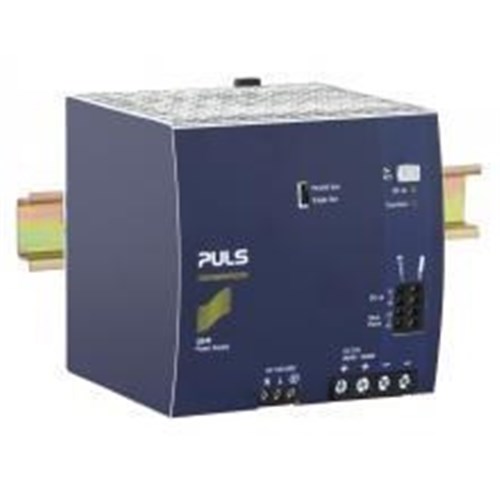

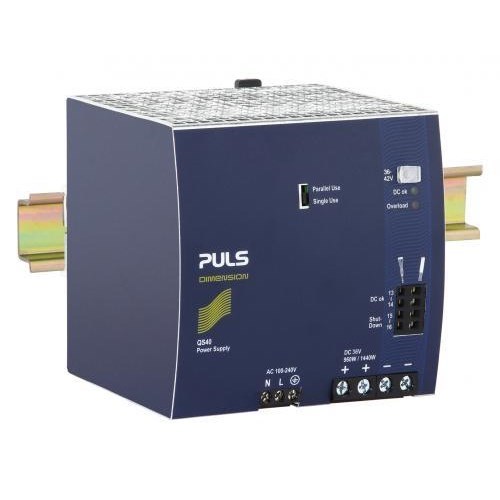

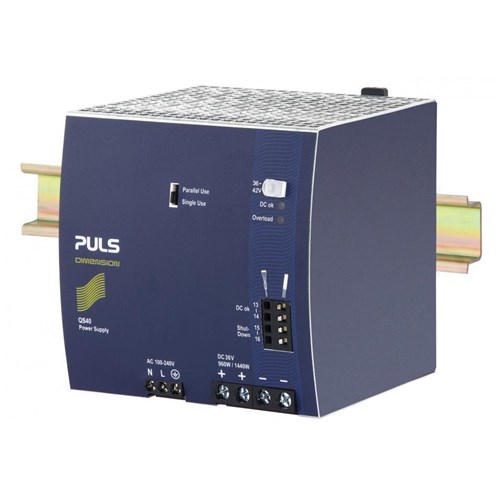

Puls QS40.361 Power Supply 1PH 100-240VAC 36VDC 26.7A 960 Watt 54.8 Watt DIN Rail Mount Screw Terminal IP20
