Specifications

Product Type	Power Supply
Brand	Puls
Series	Dimension Q
Connection Type	Spring Clamp
Input Voltage AC	100-240 V
Input Voltage DC	110-300 V
No. of Phases	1
Output Current - Nominal	5 A
Output Current - Range	5 – 4.5 A
Output Power	120 W
Output Voltage - Nominal	24 Vdc
Output Voltage - Range	24 - 28 Vdc
Current Setting Range	Active
Efficiency	91.6 / 92.7% at 120 / 230Vac
Input Type	Wide-Range
Power Loss	9.4 W
Rated Current	5 A
Rated Power	120 W
Rated Voltage	110-300 VDC, 24 VDC
Terminal Type	Spring-clamp
Mounting Style	DIN rail
Mounting Type	DIN Rail
Depth	117 mm
Height	124 mm
Weight	620 g
Width	40 mm
Noise Level	50 mVpp
Operating Temperature	-25 °C to 70 °C
IP Rating	IP20
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Inrush Current	9 A, 11 A

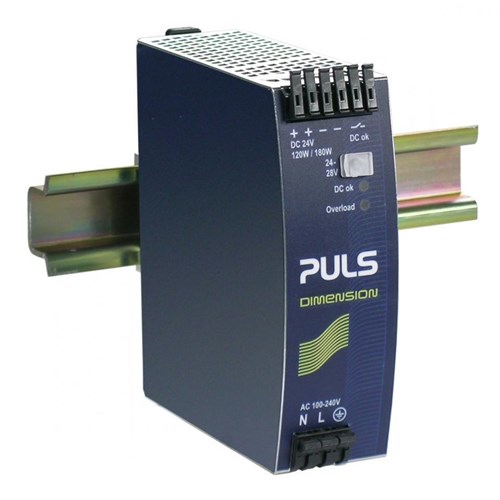

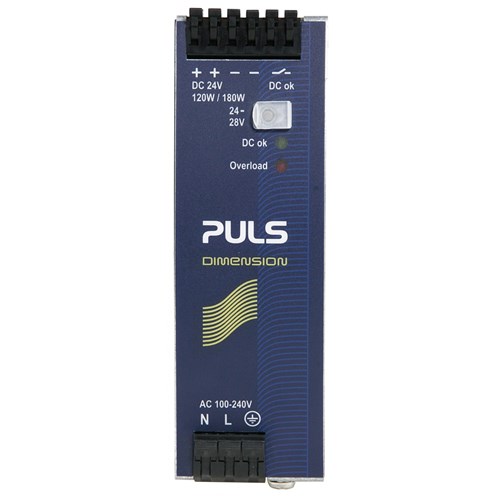

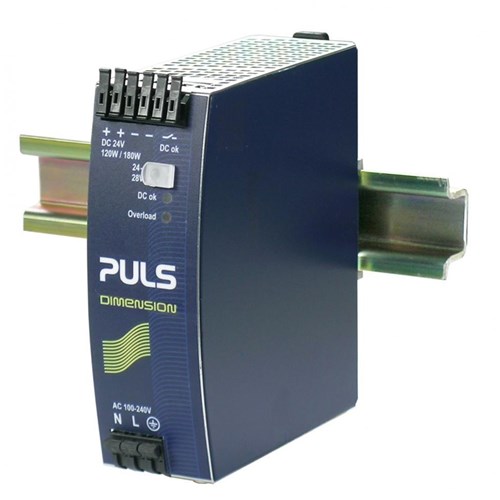

Puls QS5.241-A1 Power Supply 1PH 110-300VDC 24VDC 5A 120 Watt 9.4 Watt DIN Rail Mount Spring Clamp IP20
