Specifications

Product Type	Power Supply
Brand	PULS
Series	Q
Connection Type	Spring Clamp
Degree of Protection	IP20
Depth	117 mm
Derating Temperature	3 W/deg C
Efficiency	92.7%
Harmonic Correction	Active
Height	124 mm
Input Type	Wide-Range
Inrush Current	9 A, 11 A
Inrush Current Limitation	Active
Mounting Type	DIN Rail
Operational Temperature	-25 to 70 deg C
Phase	1
Power Loss	9.4 W
Power Reserve Type	50%
Range	DIMENSION
Rated Current	5 A
Rated Power	120 W
Rated Voltage	110-300 VDC, 24 VDC
Ripple and Noise Voltage	50 mVpp
Standards and Approvals	Class I Div. 2 Canada-CSA, Class I Div. 2 USA-CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Marine ABS, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Weight	620 g
Width	40 mm

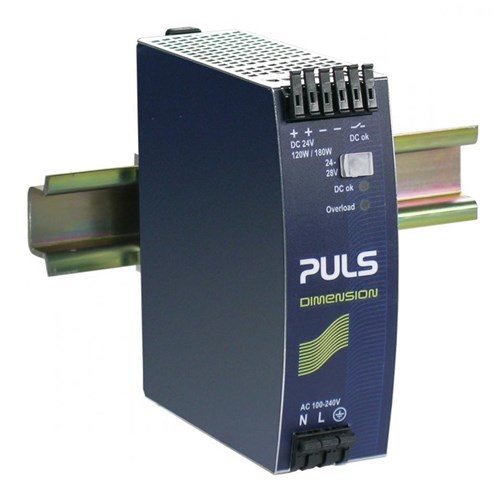

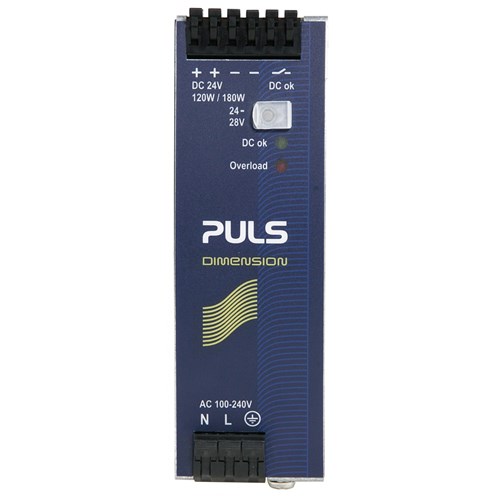

Puls QS5.241 Power Supply 1PH 110-300VDC 24VDC 5A 120 Watt 9.4 Watt DIN Rail Mount Spring Clamp IP20
