Specifications

Product Type	Power Supply
Brand	Puls
Series	Dimension Q
Connection Type	Spring Clamp
Input Voltage AC	380-480 V
No. of Phases	3
Output Current - Nominal	20 A
Output Current - Range	20 – 17.5 A
Output Power	480 W
Output Voltage - Nominal	24 Vdc
Output Voltage - Range	24 - 28 Vdc
Current Setting Range	Active
Efficiency	95.0 / 94.8% at 3x400 / 480Vac
Input Type	Wide-Range
Power Loss	25.3 W
Rated Current	20 A
Rated Power	480 W
Rated Voltage	380-480 VAC, 24 VDC
Terminal Type	Quick-connect spring-clamp terminals
Housing Material	Body: Aluminium alloy Cover: zinc-plated steel
Mounting Style	DIN rail
Mounting Type	DIN Rail
Depth	127 mm
Height	124 mm
Weight	870 g
Width	65 mm
Conformal Coating	Yes
Noise Level	100 mVpp
Operating Temperature	-25 °C to 70 °C
IP Rating	IP20
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, Railway EN 50155, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Inrush Current	3 A

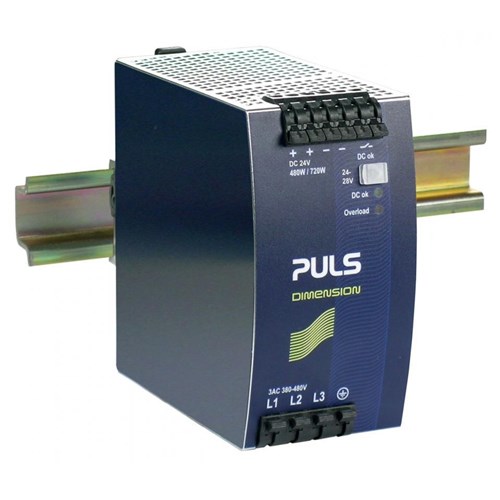

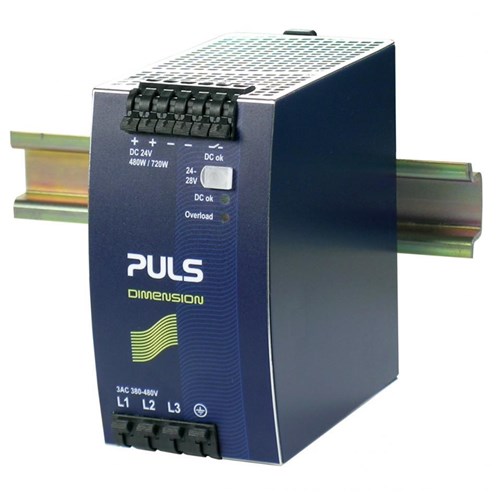

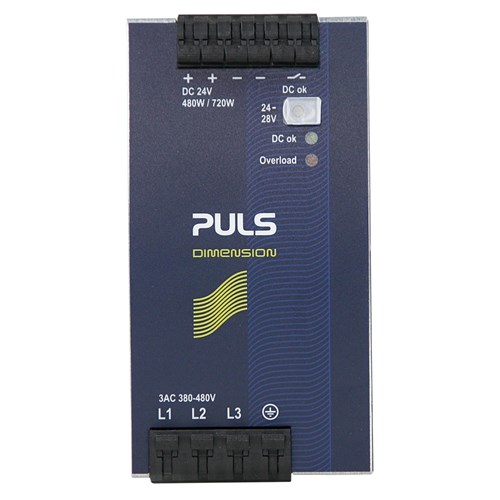

Puls QT20.241-C1 Power Supply 3PH 380-480VAC 24VDC 20A 480 Watt 25.3 Watt DIN Rail Mount Spring Clamp IP20
