Specifications

Product Type	Power Supply
Brand	PULS
Series	Q
Connection Type	Spring Clamp
Degree of Protection	IP20
Depth	127 mm
Derating Temperature	12 W/deg C
Efficiency	95%
Harmonic Correction	Active
Height	124 mm
Input Type	Wide-Range
Inrush Current	3 A
Inrush Current Limitation	Active
Mounting Type	DIN Rail
Operational Temperature	-25 to 70 deg C
Phase	3
Power Loss	25.3 W
Power Reserve Type	50%
Range	DIMENSION
Rated Current	20 A
Rated Power	480 W
Rated Voltage	380-480 VAC, 24 VDC
Ripple and Noise Voltage	100 mVpp
Standards and Approvals	Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IEC 60950 CB Scheme, Korea Certification, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Weight	870 g
Width	65 mm

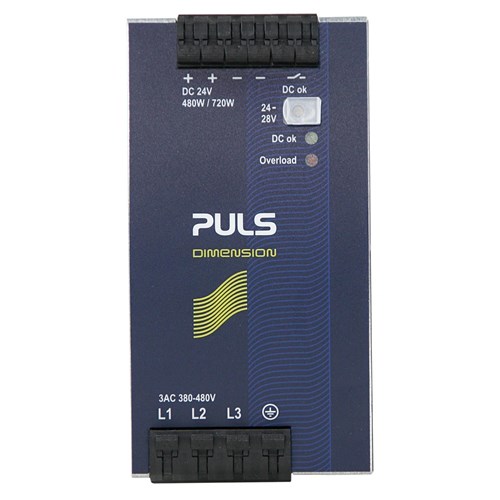

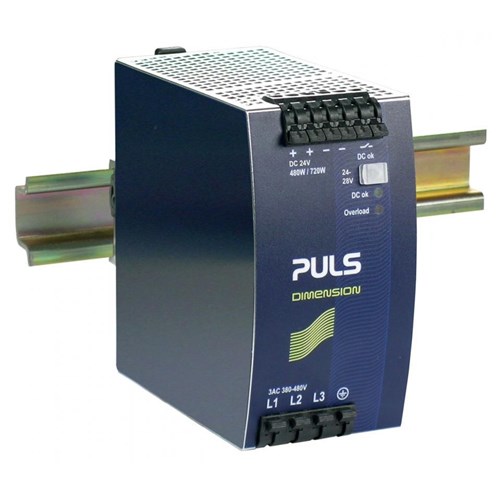

Puls QT20.241 Power Supply 3PH 380-480VAC 24VDC 20A 480 Watt 25.3 Watt DIN Rail Mount Spring Clamp IP20
