Specifications

Product Type	Power Supply
Brand	PULS
Series	Q
Connection Type	Screw Terminal
Degree of Protection	IP20
Depth	127 mm
Derating Temperature	20 W/deg C
Efficiency	95.3%
Harmonic Correction	Active
Height	124 mm
Input Type	Wide-Range
Inrush Current	4.5 A, 4.5 A
Inrush Current Limitation	Active
Mounting Type	DIN Rail
Operational Temperature	-25 to 70 deg C
Phase	3
Power Loss	47.3 W
Power Reserve Type	50%
Range	DIMENSION
Rated Current	40 A
Rated Power	960 W
Rated Voltage	380-480 VAC
Ripple and Noise Voltage	100 mVpp
Standards and Approvals	EU Declaration of Conformity, SEMI F47, UK Declaration of Conformity
Weight	1500 g
Width	110 mm

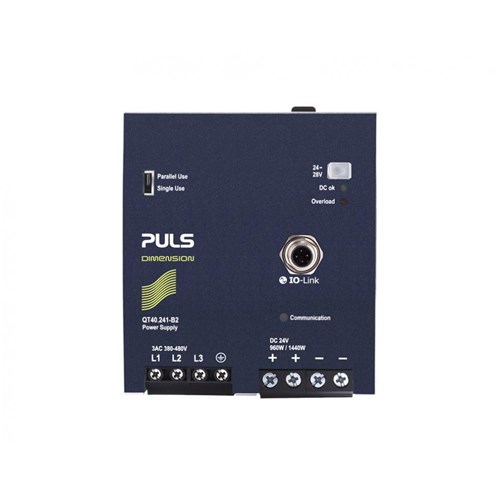

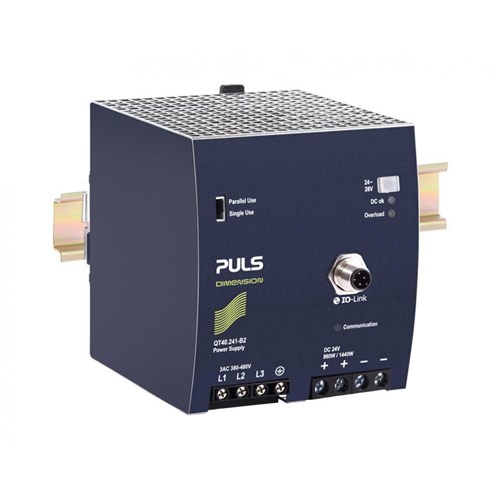

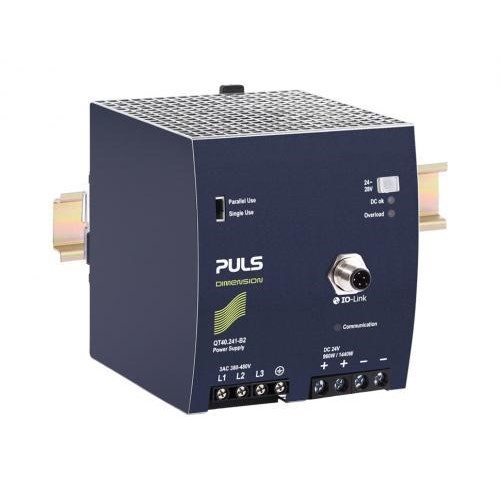

Puls QT40.241-B2 Power Supply 3PH 380-480VAC 40A 960 Watt 47.3 Watt DIN Rail Mount Screw Terminal IP20
