Specifications

Product Type	Power Supply
Brand	Puls
Series	Dimension Q
Connection Type	Screw Terminal
Input Voltage AC	380-480 V
No. of Phases	3
Output Current - Nominal	20 A
Output Current - Range	20 – 17.8 A
Output Power	960 W
Output Voltage - Nominal	48 Vdc
Output Voltage - Range	48 - 54 Vdc
Current Setting Range	Active
Efficiency	95.4 / 95.2% at 3x400 / 480Vac
Power Loss	46.3 W
Rated Current	16.5 A
Rated Power	960 W
Rated Voltage	380-480 VAC, 58.5 VDC
Terminal Type	Screw Terminals
Housing Material	Body: Aluminium alloy Cover: zinc-plated steel
Mounting Style	DIN rail
Mounting Type	DIN Rail
Depth	127 mm
Height	124 mm
Weight	1500 g
Width	110 mm
Noise Level	150 mVpp
Operating Temperature	-25 °C to 70 °C
Standards and Approvals	EU Declaration of Conformity, IEC 60950 CB Scheme, Korea Certification, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Inrush Current	4.5 A

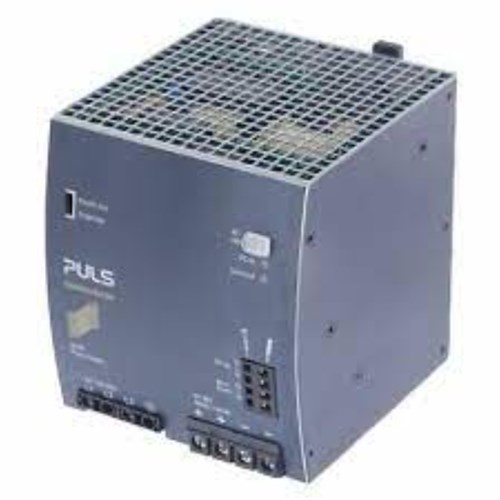

Puls QT40.481-77 Power Supply 3PH 380-480VAC 58.5VDC 16.5A 960 Watt 46.3 Watt DIN Rail Mount Screw Terminal
