Specifications

Product Type	Power Supply
Brand	PULS
Series	Q
Connection Type	Screw Terminal
Degree of Protection	IP20
Depth	127 mm
Derating Temperature	24 W/deg C
Efficiency	95.4%
Harmonic Correction	Active
Height	124 mm
Hold Up Time	25 ms
Input Type	Wide-Range
Inrush Current	4.5 A
Inrush Current Limitation	Active
Mounting Type	DIN Rail
Operational Temperature	-25 to 70 deg C
Phase	3
Power Loss	46.3 W
Power Reserve Type	50%
Range	DIMENSION
Rated Current	20 A
Rated Power	960 W
Rated Voltage	380-480 VAC, 48 VDC
Ripple and Noise Voltage	150 mVpp
Standards and Approvals	EU Declaration of Conformity, IEC 60950 CB Scheme, Korea Certification, Marine DNV, SEMI F47, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Weight	1500 g
Width	110 mm

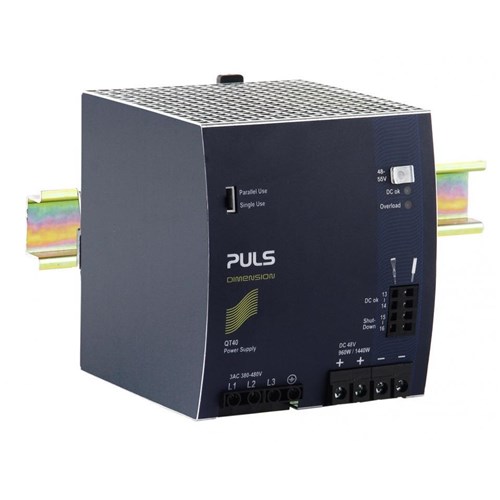

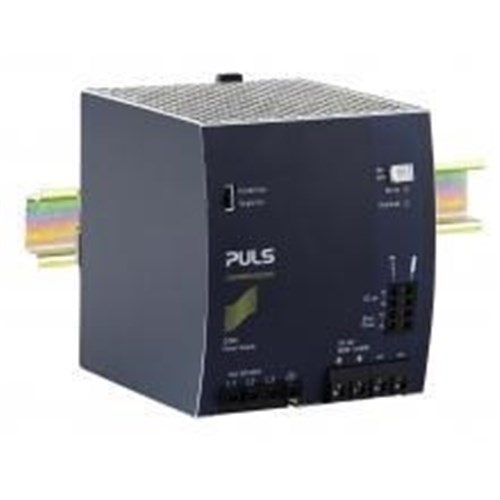

Puls QT40.481 Power Supply 3PH 380-480VAC 48VDC 20A 960 Watt 46.3 Watt DIN Rail Mount Screw Terminal IP20
