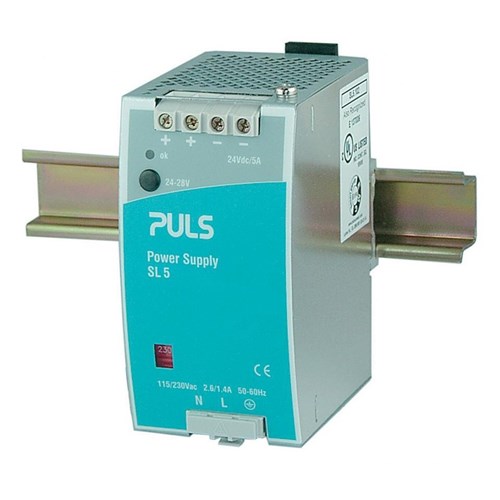

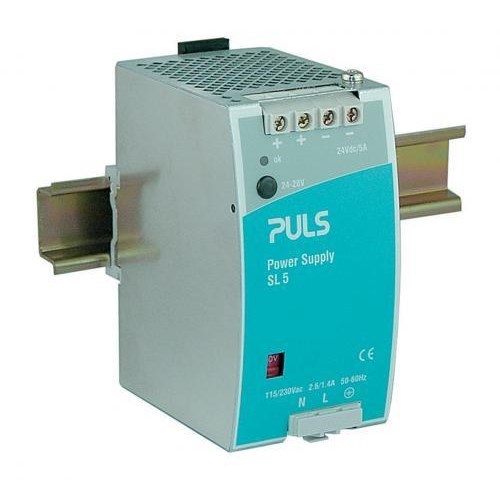

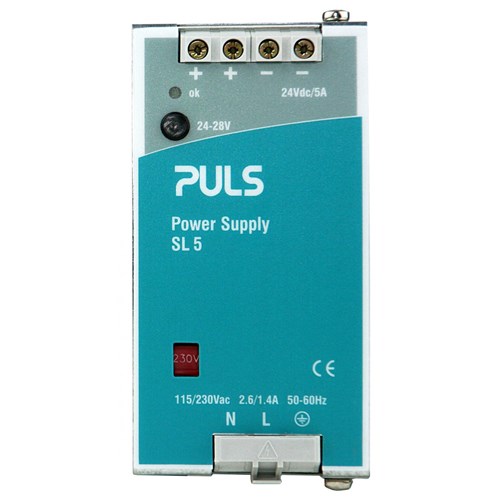

Puls SL5.102 Power Supply 1PH 110-300VDC 24VDC 5A 120 Watt DIN Rail Mount Screw Terminal IP20

Product Code: SL5.102

1

Specifications

Product Type	Power Supply
Brand	Puls
Series	Silver Line
Connection Type	Screw Terminal
Input Voltage AC	100 - 120 / 220 - 240 V (-15 %/+10 %)
Input Voltage DC	300 V (-20 %/+25 %)
No. of Phases	1
Output Current - Nominal	4.3 A at 28 V 5 A at 24 V
Output Current - Range	5 - 4.3 A
Output Power	120 W
Output Voltage - Nominal	24 Vdc
Output Voltage - Range	24 - 28 V
Efficiency	0.9
Input Type	Manual-Select
Rated Current	5 A
Rated Power	120 W
Rated Voltage	110-300 VDC, 24 VDC
Terminal Type	Screw Terminals
Housing Material	Aluminium alloy
Mounting Style	DIN rail
Mounting Type	DIN Rail
Depth	102 mm
Height	124 mm
Weight	0.62 Kg
Width	64 mm
Noise Level	25 mVpp
IP Rating	IP20

Documents

IPD Product Catalogue V17

Installation

PULS Datasheet
