Specifications

Product Type	Power Supply
Brand	Puls
Series	Silver Line
Connection Type	Screw Terminal
Input Voltage AC	100 - 120 / 220 - 240 V (-15 %/+10 %)
Output Current - Nominal	4 A at 30.5 V
Output Current - Range	4 A
Output Voltage - Nominal	30.5 Vdc
Output Voltage - Range	30.5 V
Current Setting Range	NTC
Efficiency	0.88
Input Type	Manual-Select
Power Loss	13.5 W
Rated Current	4 A
Rated Voltage	100-120 VAC, 200-240 VAC, 30.5 VDC
Terminal Type	Screw Terminals
Housing Material	Aluminium alloy
Mounting Style	DIN rail
Mounting Type	DIN Rail
Depth	102 mm
Height	124 mm
Weight	0.62 Kg
Width	65 mm
Noise Level	50 mVpp
IP Rating	IP20
Standards and Approvals	AS-Interface Compliant, EU Declaration of Conformity, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity

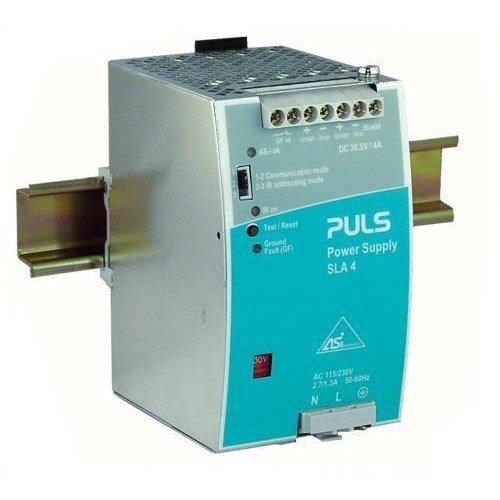

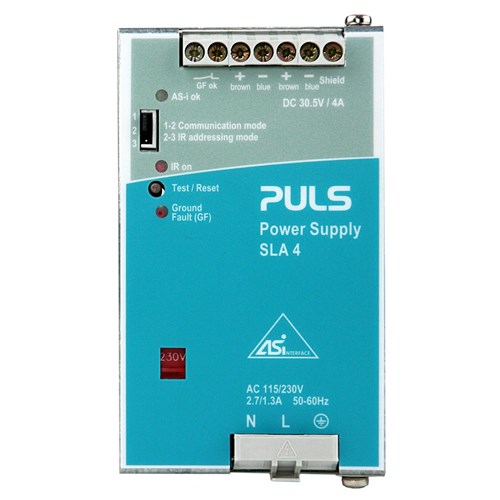

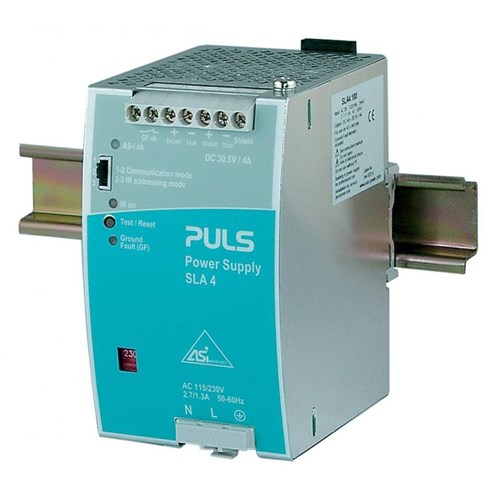

Puls SLA4.100 AS-Interface Power Supply 100-120VAC 200-240VAC 30.5VDC 4A 13.5 Watt DIN Rail Mount Screw Terminal IP20
