Specifications

Product Type	DC-UPS control unit
Brand	PULS
Series	U–Series
Input Voltage DC	24 V
Output Current	10A
Output Voltage - Nominal	24V
Allowed Battery Size	12 V, 3.9 to 40 Ah VRLA lead acid
Buffering Storage Element	External lead acid battery
Terminal Type	Spring clamps
Mounting Style	DIN rail
Depth	117mm
Height	124mm
Weight	530 g
Width	49mm
Approvals / Conformity	UL 508,IEC 60950-1,UL 60950-1,ATEX,IECEx,Class 1 Div 2,Marine (DNV),Marine (ABS) IEC 60068-2-60,VDMA 24364,ISA-71.04 G3,CE,REACH,WEEE,KC,EAC TR
Operating Temperature	-25 °C to 70 °C
IP Rating	IP20

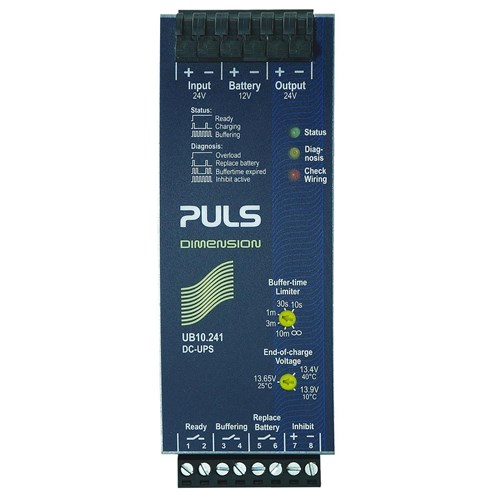

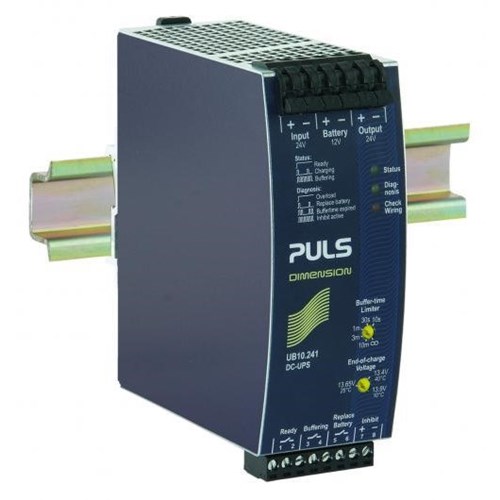

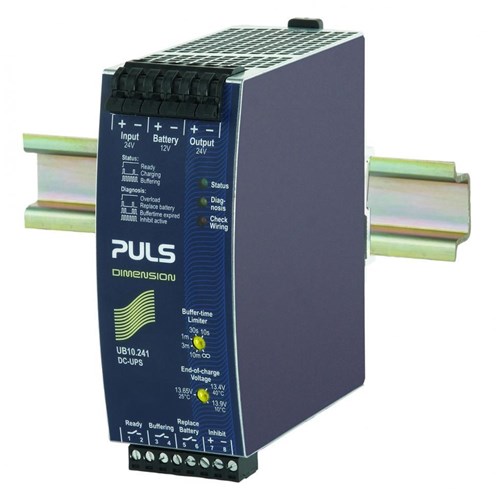

Puls UB10.241 DC-UPS Control Unit U 24VDC 10A
