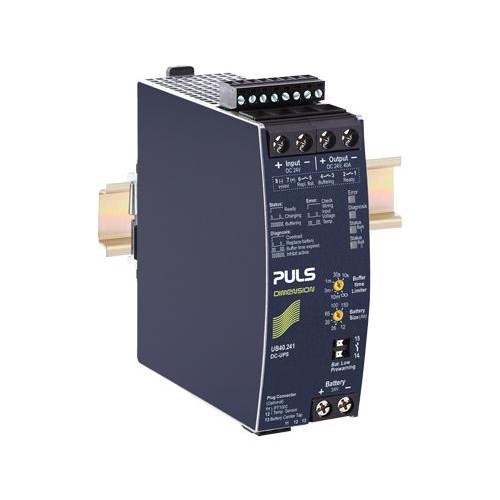

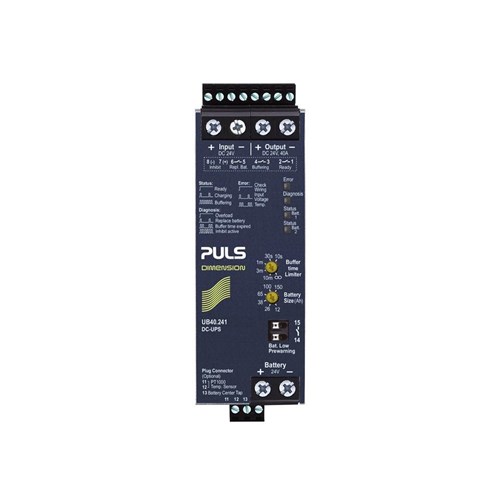

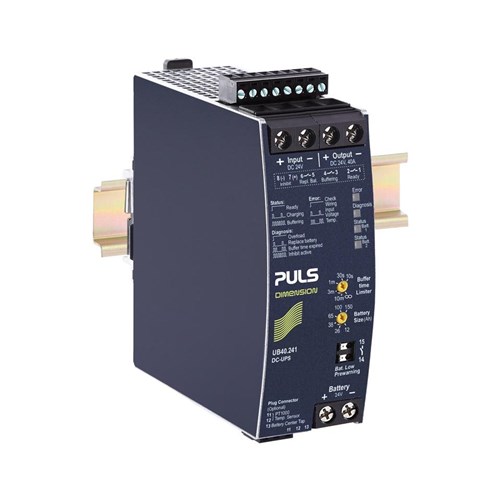

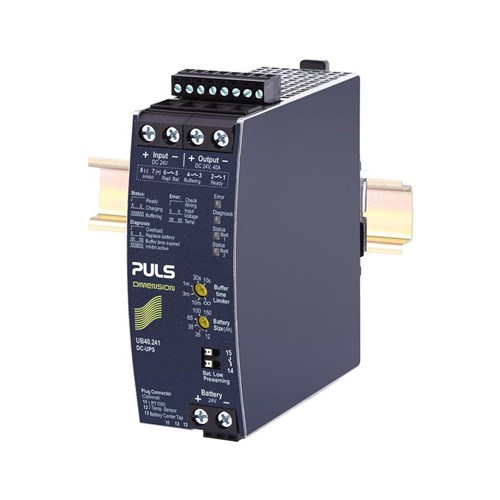

Puls UB40.241 DC-UPS Control Unit U 960W 24VDC 40A

Product Code: UB40.241

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type DC-UPS control unit
Brand PULS
Series UB-Series
Input Voltage DC DC 24 V (± 25 %)
Output Current 40A
Output Voltage - Nominal 24V
Allowed Battery Size 12 Ah - 200 Ah
Buffering Storage Element External lead acid battery
Terminal Type Screw terminals
Housing Material Body: Aluminium alloy Cover: Zinc-plated steel
Mounting Style DIN rail
Depth 127mm
Height 124mm
Weight 530g
Width 46 mm
Approvals / Conformity UL 61010,IEC 61010,VDMA 24364,CE,REACH,WEEE,RoHS (China RoHS 2)
Operating Temperature -25 °C to 70 °C
IP Rating IP20

Documents

IPD Product Catalogue V17
PULS Datasheet
