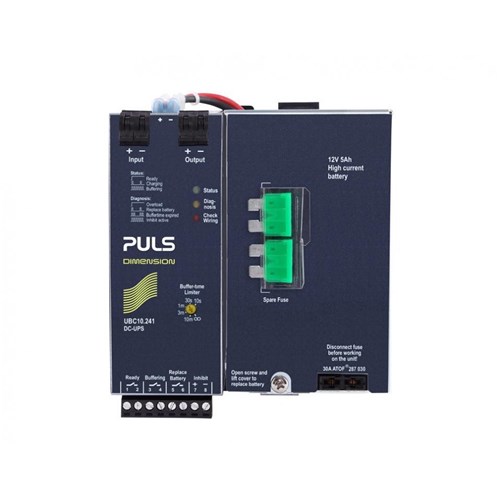

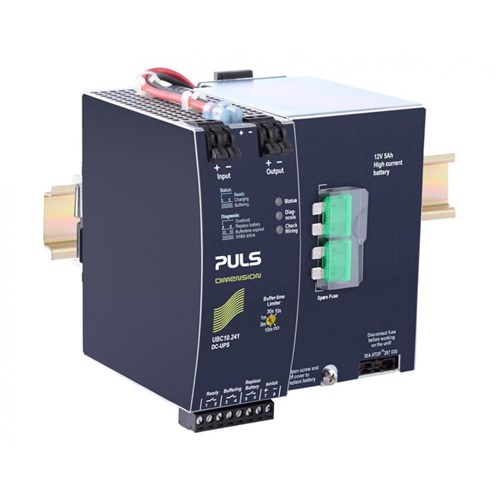

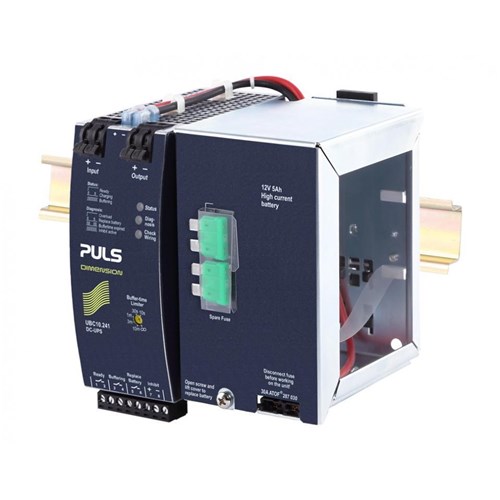

Puls UBC10.241-N1 DC-UPS Control Unit U 24VDC 10A

Product Code: UBC10.241-N1

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

Product Type DC-UPS for built-in battery
Brand PULS
Series U–Series
Input Voltage DC 24 V
Output Current 10A
Output Voltage - Nominal 24V
Allowed Battery Size 12 V, 5A h
Buffering Storage Element Built-in lead acid battery
Terminal Type Spring clamps
Mounting Style DIN rail
Depth 119mm
Height 124mm
Weight 850g
Width 123 mm
Approvals / Conformity UL 508,IEC 60950-1,UL 60950-1,ATEX,IECEx,Class 1 Div 2,Marine (DNV),Marine (ABS),UL 1989 IEC 60068-2-60,VDMA 24364,ISA-71.04 G3,CE,REACH,WEEE,KC,EAC TR
Operating Temperature 0 °C to 40 °C
IP Rating IP20

Documents

IPD Product Catalogue V17
PULS Datasheet
