Specifications

Product Type	Power Supply
Brand	PULS
Series	X
Connection Type	Screw Terminal
Degree of Protection	IP20
Depth	159 mm
Derating Temperature	24 W/deg C
Efficiency	96%
Harmonic Correction	Active
Height	124 mm
Inrush Current	2 A
Inrush Current Limitation	Active
Mounting Type	DIN Rail
Operational Temperature	-25 to 70 deg C
Power Loss	40 W
Power Reserve Type	25%
Range	DIMENSION
Rated Current	20 A
Rated Power	960 W
Rated Voltage	380-480 VAC, 400-500 VAC, 48 VDC
Ripple and Noise Voltage	2500 mVpp
Standards and Approvals	EU Declaration of Conformity, IEC 60950 CB Scheme, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA
Weight	1400 g
Width	96 mm

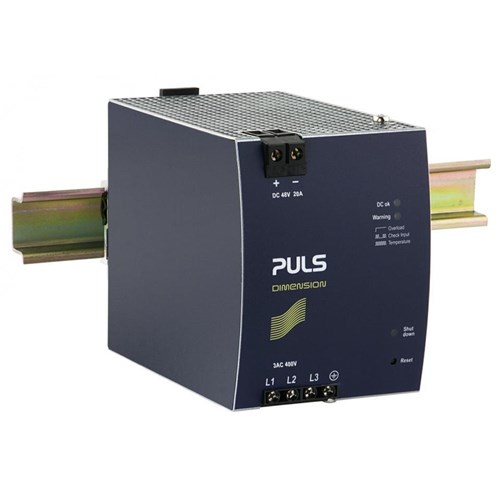

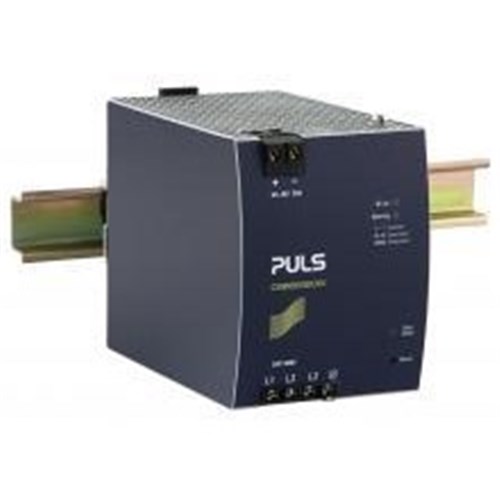

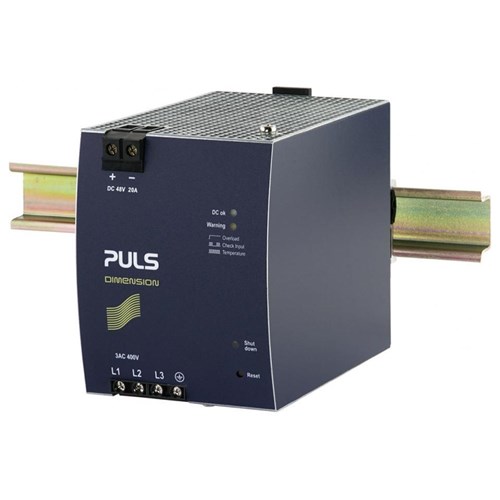

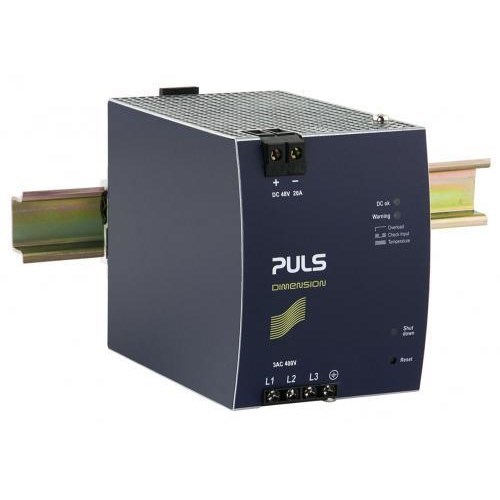

Puls XT40.481 Power Supply 380-480VAC 400-500VAC 48VDC 20A 960 Watt 40 Watt DIN Rail Mount Screw Terminal IP20
