Specifications

Product Type	Diode Redundancy Module
Brand	Puls
Series	Y
Connection Type	Spring Clamp
Input Voltage	DC 12-48V
No. of Inputs	2
Output Current	20 A
Output Current - Range	20-32 A
Short Circuit Output Current	25 A
Input Current	nom. 2x 0-10A continuous nom. 1x 0-20A continuous nom. 2x 10-16A for 5 seconds
Power Loss	17 W
Rated Current	20 A
Rated Voltage	12 VDC, 24 VDC, 48 VDC
Terminal Type	Quick-connect spring clamp
Voltage Range	800 mV
Mounting Style	DIN Rail
Mounting Type	DIN Rail
Depth	102 mm
Height	124 mm
Weight	290 g
Width	32 mm
Approvals / Conformity	UL 508, IEC 60950-1, Class I Div 2, ATEX, IECEx, Marine (DNV GL), Marine (ABS), IEC 60068-2-60, ISA-71.04 G3, VDMA 24364, CE, REACH, WEEE, EAC TR
Operating Temperature	-40°C to +70°C
IP Rating	IP 20
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity

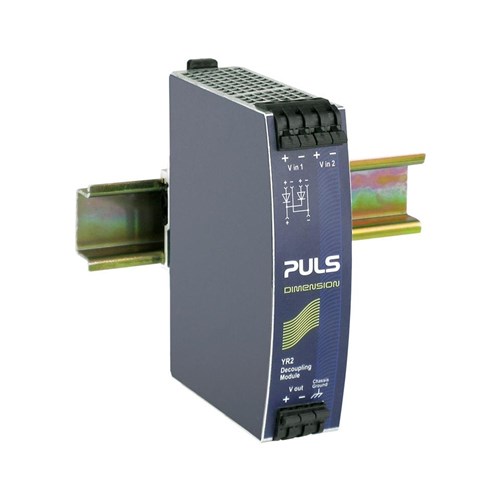

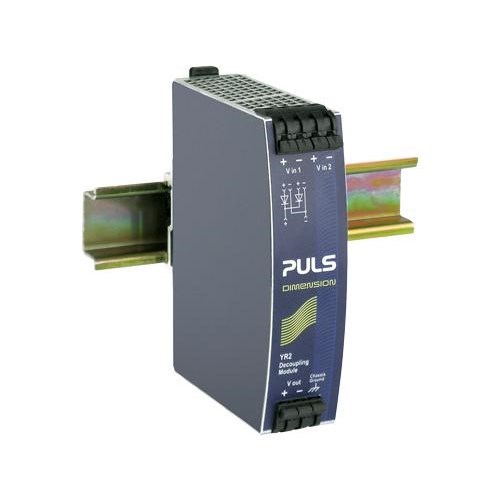

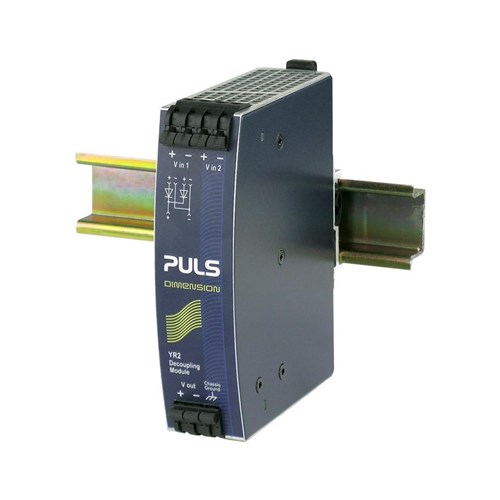

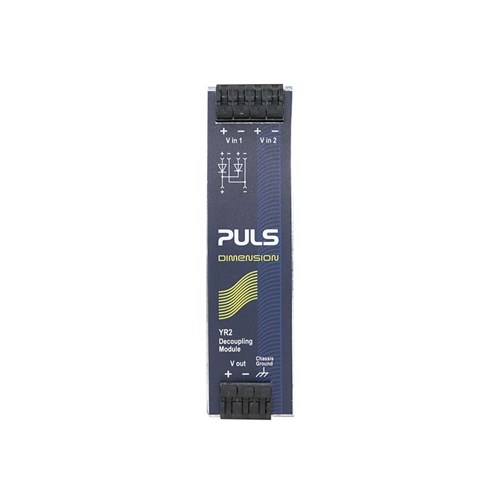

Puls YR2.DIODE Diode Redundancy Module 12VDC 24VDC 48VDC 20A 17 Watt
