Specifications

Product Type	MOSFET Redundancy Module
Brand	PULS
Series	Y
Connection Type	Screw Terminal
Degree of Protection	IP20
Depth	117 mm
Derating Temperature	>60 deg C
Drop Voltage	60 mV
Height	124 mm
Mounting Type	DIN Rail
Number of Inputs	2
Operational Temperature	-40 to 70 deg C
Output Short Circuit Current	26 A
Power Loss	0.6 W
Range	DIMENSION
Rated Current	20 A
Rated Voltage	12 VDC, 24 VDC
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada-CSA, Class I Div. 2 USA-CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Weight	250 g
Width	32 mm

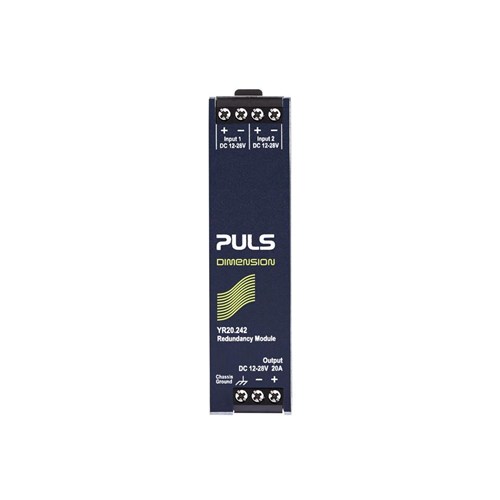

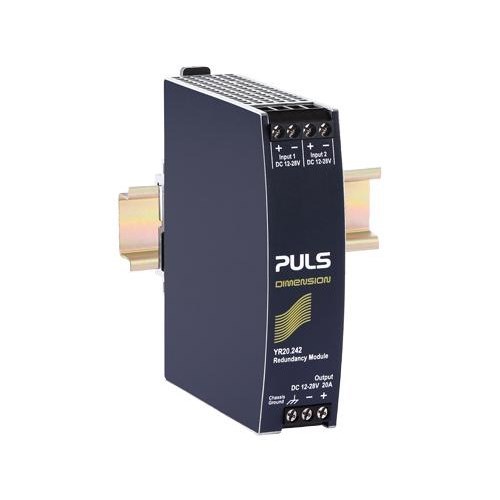

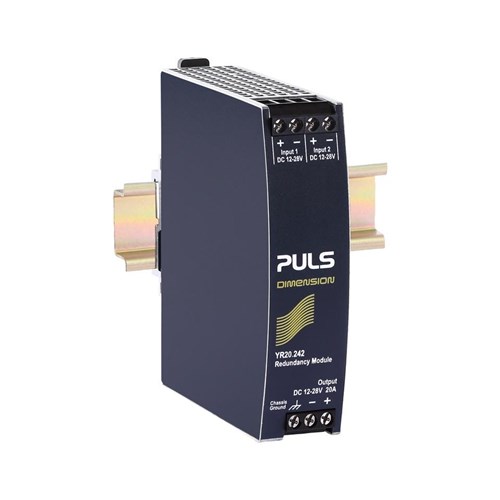

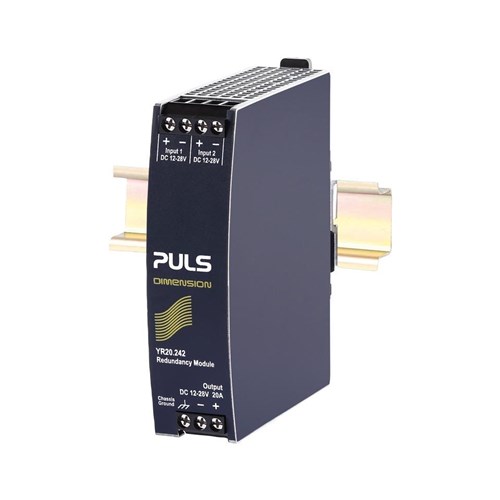

Puls YR20.242 MOSFET Redundancy Module 12VDC 24VDC 20A 0.6 Watt
