Specifications

Product Type	Mosfet Redundancy Module
Brand	PULS
Series	Y
Connection Type	Screw Terminal
Input Voltage	24 - 28 V DC
No. of Inputs	2
Output Current	nom. 24A continuous, ambient temperature < +45°C nom. 20A continuous, ambient temperature < +70°C nom. 32.5A for max. 5 seconds max. 26A in overload /short-circuit (voltage < 6V). Ensure that the sum of input currents does not exceed this value.
Output Current - Range	0-24A ambient <+45°C 0-20A ambient <+70°C max. 26A in overload*) or short circuit mode
Short Circuit Output Current	26 A
Input Current	2x 0-12A ambient <+45°C 2x 0-10A ambient <+70°C
Power Loss	2.6 W
Rated Current	20 A
Rated Voltage	24 VDC
Terminal Type	IO: Screw Termination Singals: Push-in terminals
Voltage Range	110 mV
Housing Material	Body: Aluminium alloy Cover: Zinc-plated steel
Mounting Style	DIN Rail
Mounting Type	DIN Rail
Depth	117 mm
Height	124 mm
Weight	310 g
Width	32 mm
Derated Temperature (Derating)	>60 deg C
Approvals / Conformity	UL 508 IEC/UL 60950-1 ATEX IECEx Class 1 Div 2 IEC 60068-2-60 ISA-71.04 G3 VDMA 24364 EU Declaration of Conformity REACH Regulation (EU) WEEE Regulation CCC
Operating Temperature	-40°C to +70°C
IP Rating	IP20
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada-CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity

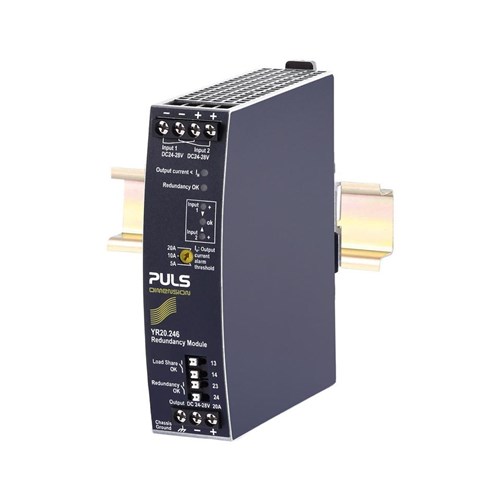

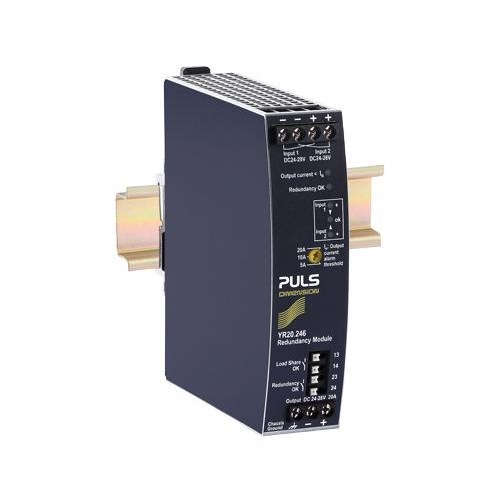

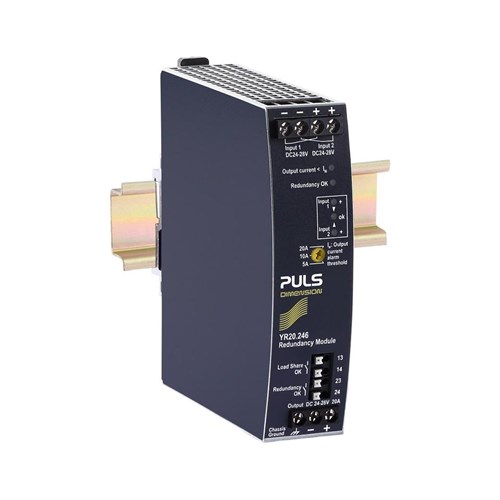

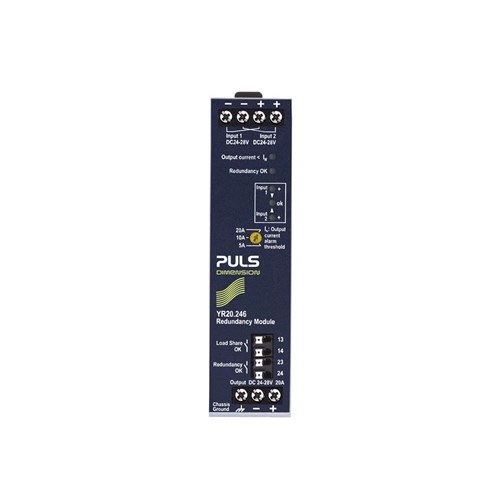

Puls YR20.246 MOSFET Redundancy Module 24VDC 20A 2.6 Watt
