Specifications

Product Type	MOSFET Redundancy Module
Brand	PULS
Series	Y
Connection Type	Screw Terminal
Degree of Protection	IP20
Depth	127 mm
Derating Temperature	1 W/deg C
Drop Voltage	72 mV
Height	124 mm
Mounting Type	DIN Rail
Number of Inputs	2
Operational Temperature	-40 to 70 deg C
Output Short Circuit Current	26 A
Power Loss	1.7 W
Range	DIMENSION
Rated Current	40 A
Rated Voltage	12 VDC, 24 VDC
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity
Weight	280 g
Width	36 mm

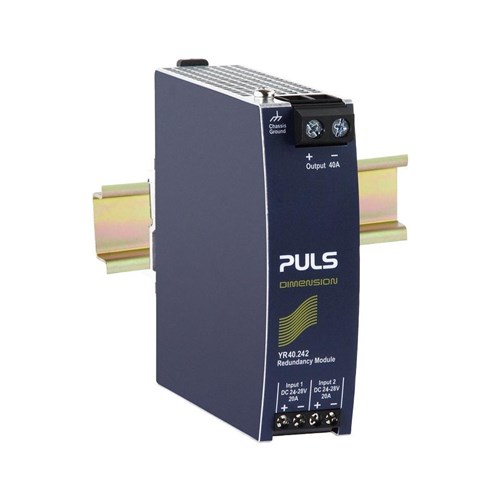

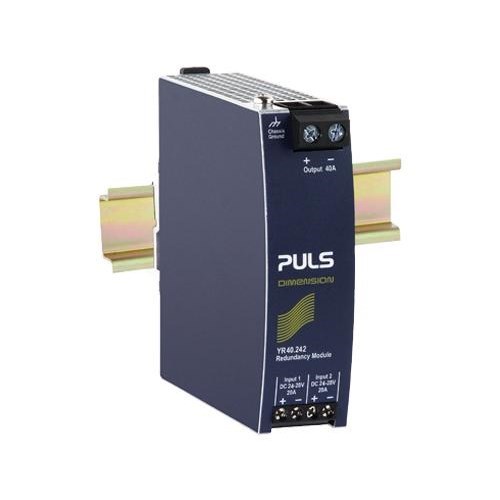

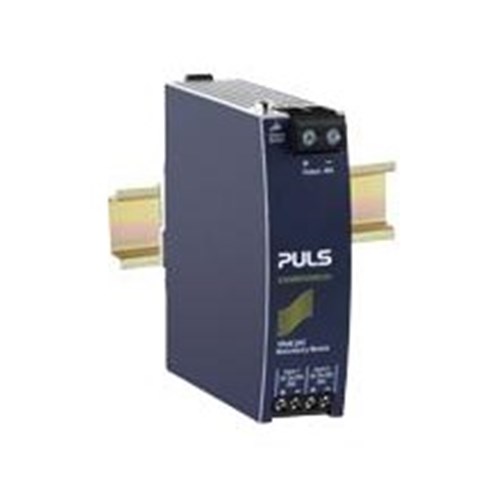

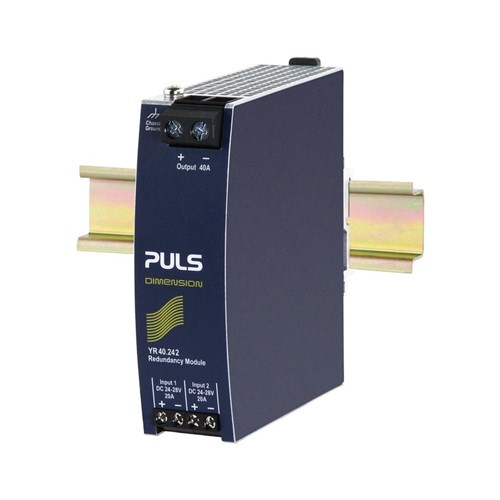

Puls YR40.242 MOSFET Redundancy Module 12VDC 24VDC 40A 1.7 Watt
