Specifications

Product Type	Mosfet Redundancy Module
Brand	PULS
Series	Y
Connection Type	Screw Terminal
Input Voltage	12 - 28 V DC
No. of Inputs	1
Output Current	nom. 40A continuous nom. 40-65A for 5 seconds max. 22A in overload (voltage < 6V) or short circuit mode
Output Current - Range	0-40A continuous 40-65A for 5 seconds max. 22A in overload*) or short circuit mode
Short Circuit Output Current	22 A
Input Current	0-40A continuous 40-65A for 5 seconds
Power Loss	6.2 W
Rated Current	40 A
Rated Voltage	12 VDC, 24 VDC
Terminal Type	Input: Screw Termination Output: Pluggable Screw Termination
Voltage Range	150 mV
Housing Material	Body: Aluminium alloy Cover: Zinc-plated steel
Mounting Style	DIN Rail
Mounting Type	DIN Rail
Depth	127 mm
Height	124 mm
Weight	340 g
Width	46 mm
Approvals / Conformity	UL 508 IEC/UL 60950-1 ATEX IECEx Class 1 Div 2 IEC 60068-2-60 ISA-71.04 G3 VDMA 24364 EU Declaration of Conformity REACH Regulation (EU) WEEE Regulation CCC
Operating Temperature	-40°C to +70°C
IP Rating	IP20
Standards and Approvals	ATEX EN 60079, Class I Div. 2 Canada - CSA, Class I Div. 2 USA - CSA, EU Declaration of Conformity, IECEx IEC 60079, IEC 60950 CB Scheme, Korea Certification, Marine ABS, Marine DNV, UL 508 Canada, UL 508 USA, UL 60950-1 Canada, UL 60950-1 USA, UK Declaration of Conformity

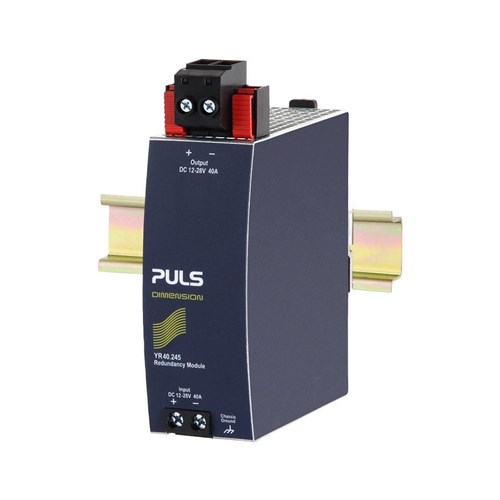

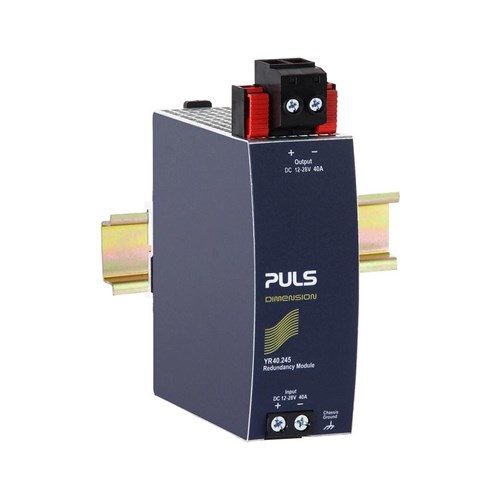

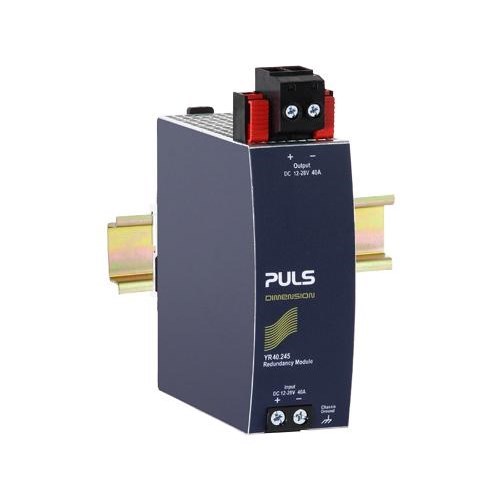

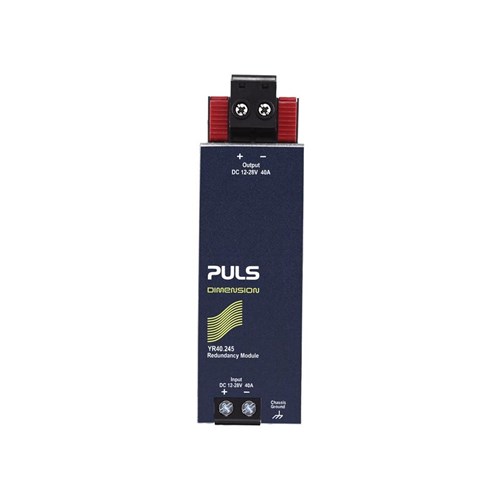

Puls YR40.245 MOSFET Redundancy Module 12VDC 24VDC 40A 6.2 Watt
