Specifications

Rated Short-Circuit Breaking Capacity (Icn) acc. To IEC/EN 61009-1	10 kA
Rated Short-Circuit Breaking Capacity (Icu) acc. To IEC/AS/NZS 61009	15 kA

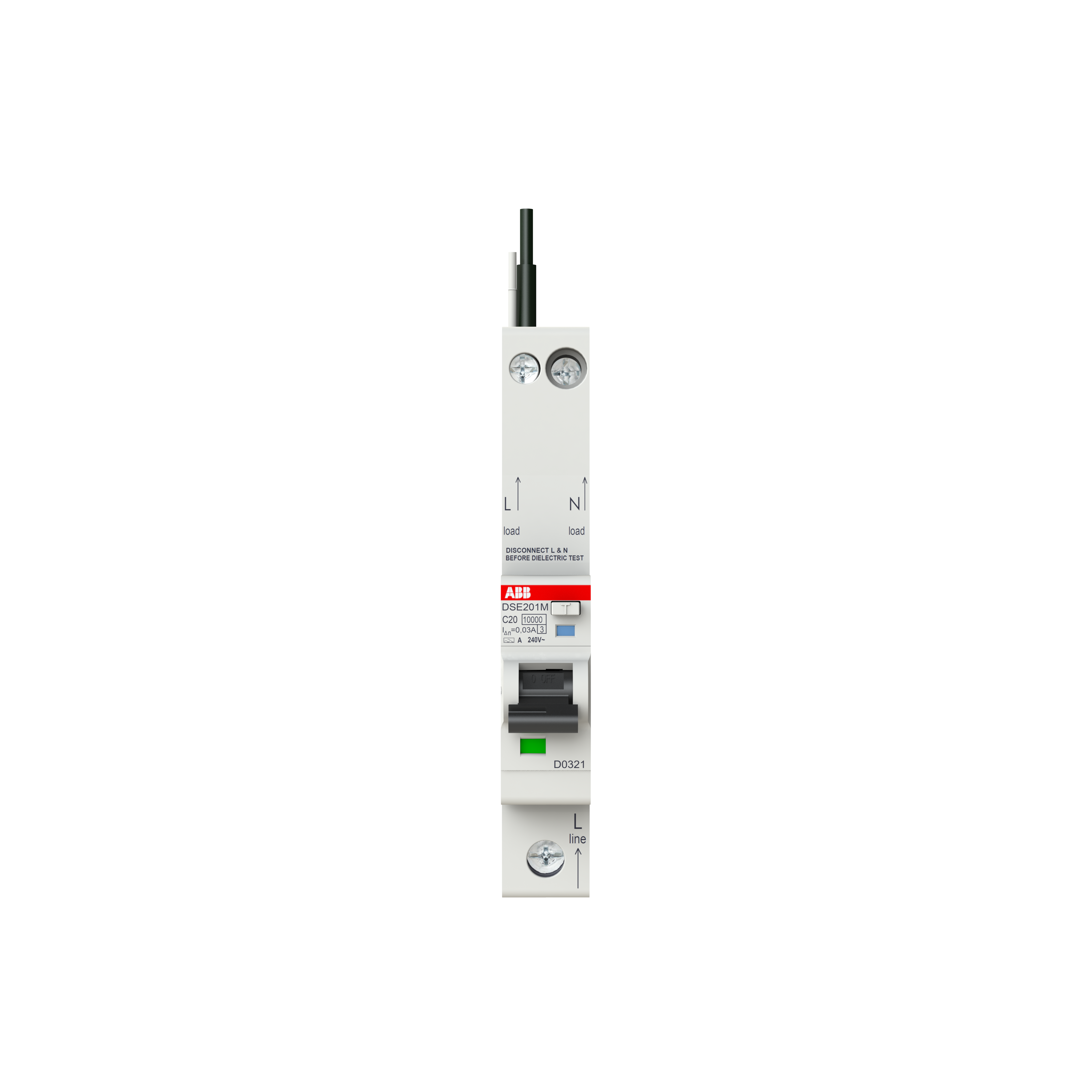

Product Type	RCBO
Brand	ABB
Series	DSE201
Electrical Endurance	10000
No. of Poles (Total)	1P+N
Rated Impulse Withstand Voltage (Uimp)	4 kV
Rated Insulation Voltage (Ui)	500 V AC/DC
Rated Current	20 A
Rated Frequency	50 / 60 Hz
Rated Voltage	230/240 V
Trip Curve	C
Terminal Type	Failsafe cage terminal(Top / Bottom)
Rated Residual Current	30 mA
Type of Residual Current	Type A
Conductor Cross Section Flexible	16/25 mm²
Conductor Cross Section Solid Core	25/35 mm²
Housing Type	Insulation group I
Mechanical Endurance	20000
Mounting Type	DIN rail
Depth	72 mm
Height	86 mm
Width	18 mm
Pole Width	18 mm
Rated Surrounding Temperature Without Derating	30°C
Pollution Degree	3
Storage Temperature	-40…+70°C
Operating Temperature	-25 … 55°C
IP Rating	IP2X, IP4X
Standards and Approvals	IEC 60898-1, IEC/EN 60664-1
