Specifications

Product Type	Industrial Ethernet Switch
Brand	RED LION
Series	ANT
Cable Type	FX Single Mode
Connection Type	FX Port-SC
Degree of Protection	IP65
Depth	90 mm
Height	89 mm
Humidity	10-95%
Mounting Type	DIN Rail
Number of 100Mb Ports	2
Number of Ethernet Ports	4
Number of Ports	(4) 10/100 Base-TX RJ-45, (2) 100 Base-FX
Operational Temperature	-40 to 70 deg C
Rated Current	270 mA
Rated Voltage	10-30 VDC
Standards and Approvals	FCC Title 47 Part 15 Class A, ICES-003 Class A, CE: EN61000-6-2, EN61000-3-2,3; IEC61000-4-2,3,4,5,6,11 EN55011, UL/cUL: Hazardous Locations Class I, Div 2, GroupsA, B, C, D or non-Hazardous Locations, ANSI/ISA 12.12.01-2000, T4A DNV-GL Type Approved and ABS for Shipboard
Width	38 mm

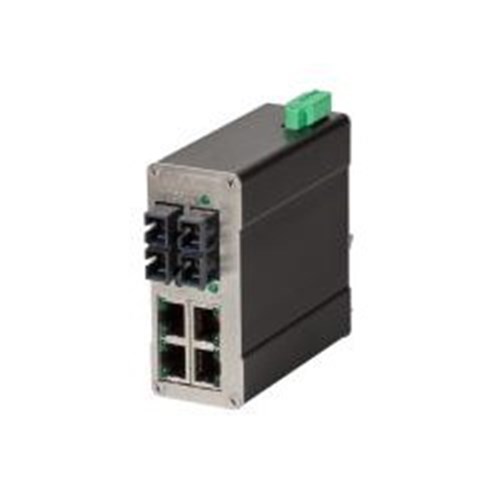

Red Lion 106FXE2-SC-40-MDR Industrial Ethernet Switch (4) 10/100 Base-TX RJ45 (2) 100 Base-FX -Port
