Specifications

Product Type	Switch
Brand	Red Lion
Series	N - Tron
Input Voltage	10-49 VDC (Regulated)
No. of Ethernet Ports	8
Communication Ports	3
Connectors/Input/Output	8x RJ45, 3x SC
Housing Material	Hardened Metal
Mounting	DIN rail mount (bracket included)
Mounting Type	DIN Rail
Depth	135.03 mm
Height	107.95 mm
Weight	0.64 Kg
Width	60.98 mm
Operating Temperature	-40 °C - 80 °C
IP Rating	IP67
Total Ports	11
Fiber Connector Type	SC Connector
Standards and Approvals	FCC: Title 47, Part 15, Subpart B, Class A; ANSI C63.4; ICES-003 UL /cUL: Class I, Div 2, Groups A, B, C, D and T4 CE: IEC 61000-4-2/3/4/5/6/8/11, EN 61000-6-2/4 Other: ABS Type Approval for Shipboard Applications; GOST-R certified; RoHS compliant

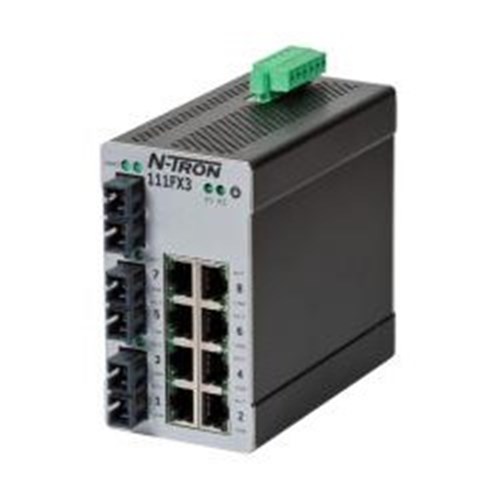

Red Lion 111FX3-SC Unmanaged Industrial Ethernet Switch ANT
