Specifications

Product Type	Switch
Brand	Red Lion
Series	N - Tron
Connection Type	FX Port-ST
Input Voltage	10-49 VDC (Regulated)
No. of Ethernet Ports	8
Communication Ports	(8) 10/100 Base-TX RJ-45, (6) 100 Base-FX
Rated Current	545 mA
Rated Voltage	10-49 VDC
Connectors/Input/Output	8x RJ45, 6x ST
Housing Material	Hardened Metal
Mounting	DIN rail mount (bracket included)
Mounting Type	DIN Rail
Depth	135.03 mm
Height	107.95 mm
Weight	0.77 Kg
Width	78.41 mm
Humidity	5-95%
Operating Temperature	-40 °C - 80 °C
Total Ports	14
Fiber Connector Type	ST Connector
Standards and Approvals	FCC: Title 47, Part 15, Subpart B, Class A; ANSI C63.4; ICES-003 UL /cUL: Class I, Div 2, Groups A, B, C, D and T4 CE: IEC 61000-4-2/3/4/5/6/8/11, EN 61000-6-2/4 Other: ABS Type Approval for Shipboard Applications; GOST-R certified; RoHS compliant

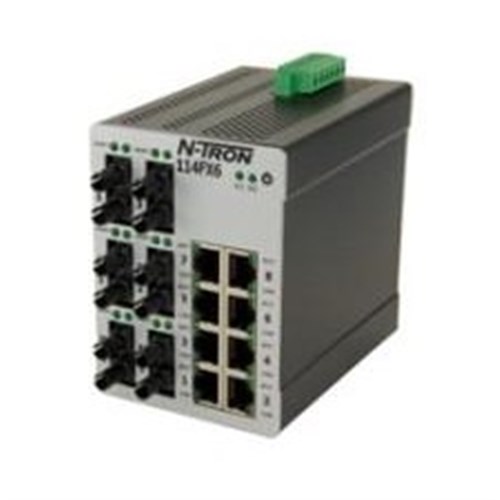

Red Lion 114FX6-ST Unmanaged Industrial Ethernet Switch (8) 10/100 Base-TX RJ45 (6) 100 Base-FX -Port
