Specifications

Product Type	Switch
Brand	RED Lion
Series	N-Tron
Connection Type	FX Port-ST
Input Voltage	10-49 VDC
No. of Ethernet Ports	8
Communication Ports	8 x 10/100 Base-TX RJ-45, 2 x 100 Base-FX, 2 x Gigabit
Rated Current	525 mA
Rated Voltage	10-49 VDC
Redundancy	N-Ring Member/Manager, STP, RSTP, MSTP
Connectors/Input/Output	10x RJ45, 2x ST
Cable Type	FX Single Mode
Housing Material	Metal
Mounting	DIN Rail
Mounting Type	DIN Rail
Depth	135 mm
Height	108 mm
Weight	1.1325 Kg
Width	78.41 mm
Operating Temperature without Derating	-40 °C - 70 °C
Humidity	5-95%
Operating Temperature	-40 °C - 70 °C
IP Rating	IP30
Fiber Distance Rating	15 km
Total Ports	12
Traffic Management	Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management	SNMP V1/2/3
100Base Fiber	2
Standards and Approvals	UL 61010-1; UL 1604; CSA C22.2 No. 61010-1; ANSI/ISA-12.12.01-2007 Class I, Div 2, Groups A–D, T4A; EN 50155; IEEE 1613; NEMA TS 1/TS 2

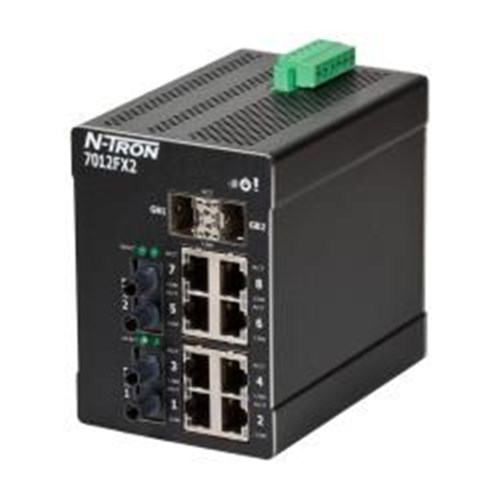

Red Lion 7012FXE2-ST-15 Industrial Ethernet Switch 8x10/100 Base-TX RJ45 2x100 Base-FX 2xGigabit 10-49VDC
