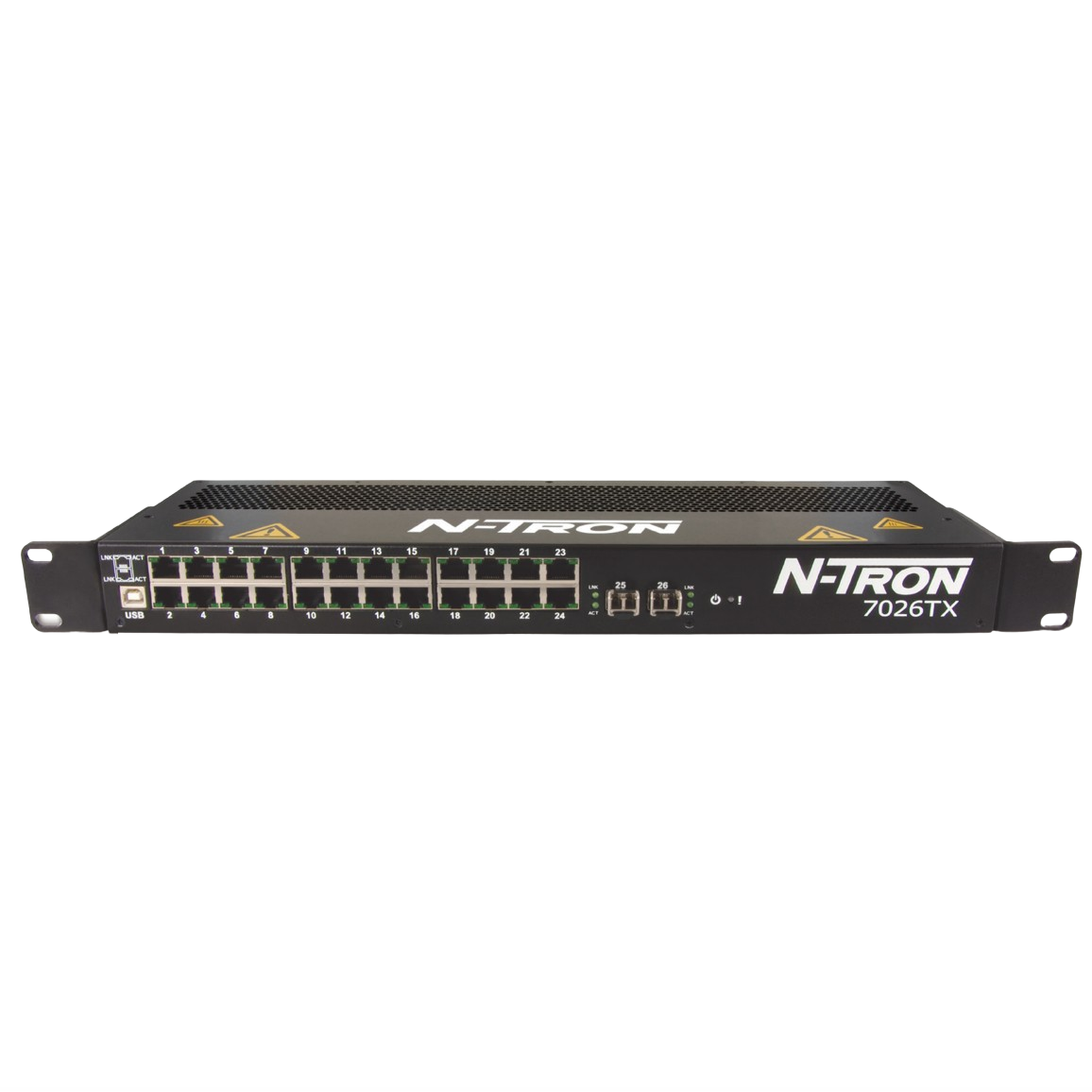

Red Lion 7026TX Industrial Ethernet Switch 18-49VDC

Product Code: 7026TX

  • Supports 18-49 VDC input voltage
  • Rack mountable design for easy installation
  • Operates in extreme temps: -40 to 80°C
  • Complies with UL 508, C22.2 No. 14 standards
  • Handles up to 8000 MAC addresses
In Stock Low Stock Out Of Stock Please See Attributes

Specifications

Product Type Industrial Ethernet Switch
Brand RED LION
Depth 137 mm
Height 46 mm
Humidity 5-95%
Mounting Type Rack
Number of 100Mb Ports 24
Number of MAC Addresses 8000
Operational Temperature -40 to 80 deg C
Rated Current 605 mA
Rated Voltage 18-49 VDC
Standards and Approvals UL 508 and C22.2 No. 14 for Industrial Control Equipment, ANSI/ISA-12.12.01 and C22.2 N0. 13-M1987 for Class I, Div. 2 Groups A, B, C and D. T4
Storage Temperature -40 to 85 deg C
Width 409 mm

Description

<p>When considering a reliable and robust managed rack-mounted product for industrial and commercial applications, this unit offers an array of features designed to meet rigorous technical demands. With a rated voltage range of 18-49 VDC, it provides flexibility in various power environments. The device&amp;#39;s compact dimensions—409 mm in width, 46 mm in height, and 137 mm in depth—allow it to fit seamlessly into standard rack systems without occupying excessive space.</p><p>Engineered to withstand harsh conditions, this product operates efficiently within a wide temperature range from -40 to 80 degrees Celsius. This feature ensures that the device remains functional across diverse climates and is suitable for both indoor and outdoor installations. Additionally, its storage temperature capacity extends from -40 to 85 degrees Celsius, offering resilience during transportation or periods of inactivity.</p><p>The humidity tolerance spans from 5% to 95%, making it adaptable to varied environmental moisture levels without compromising performance. Its rated current at 605 mA supports energy-efficient operation while maintaining optimal functionality.</p><p>In terms of compliance, the product meets several stringent standards and approvals: UL 508 and C22.2 No. 14 for Industrial Control Equipment ensure adherence to safety regulations; ANSI/ISA-12.12.01 and C22.2 No.13-M1987 certifications confirm suitability for hazardous locations classified under Class I, Div. 2 Groups A, B, C, and D with a T4 temperature rating.</p><p>With the capability to handle up to 8000 MAC addresses, this unit is equipped for extensive network management tasks required by modern industrial networks where high data throughput is essential.</p><p>Overall, this managed device presents itself as a dependable choice for professionals seeking a balance between performance specifications and regulatory compliance within demanding electrical engineering environments.</p>
