Specifications

Product Type	Switch
Brand	N - Tron
Series	1005TX
Connection Type	FX Port-SC
Input Voltage	10-30 VDC
No. of Ethernet Ports	8
Communication Ports	6 x 10/100 Base-TX RJ-45, 2 x 100 Base-FX
Rated Current	330 mA
Rated Voltage	10-30 VDC
Redundancy	N-Ring Member/Manager(~30 ms Healing), STP, RSTP
Connectors/Input/Output	6x RJ45, 2x SC
Cable Type	FX Single Mode
Housing Material	Metal
Mounting	DIN Rail
Mounting Type	DIN Rail
Depth	119.4 mm
Height	58 mm
Weight	1.361 Kg
Width	153 mm
Humidity	5-95%
Operating Temperature	-40°C to 85°C
IP Rating	IP20
Fiber Distance Rating	15 km
Total Ports	8
Traffic Management	Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management	SNMP V1/2/5
100Base Fiber	2
Standards and Approvals	UL/cUL Class I, Div 2, Groups A–D, T4A; ATEX II 3 G Ex nC (DEMKO 03 ATEX 0316686U); ABS & DNV Type-Approved; GOST-R Certified

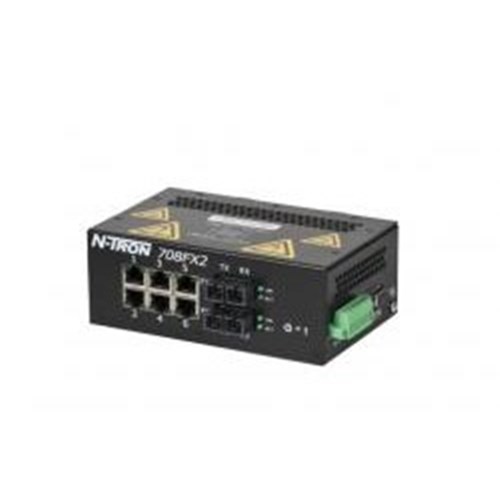

Red Lion 708FXE2-SC-15 Managed Industrial Ethernet Switch 6 x 10/100 Base-TX RJ45 2 x 100 Base-FX -Port 10-30VDC
