Specifications

Product Type	Switch
Brand	RED Lion
Series	N-Tron
Input Voltage	10 - 49 VDC
No. of Ethernet Ports	8
Communication Ports	3
Rated Voltage	30 VDC
Redundancy	N-Ring Member/Manager(~30 ms Healing), STP, RSTP
Connectors/Input/Output	8x RJ45, 3x SC
Housing Material	Metal
Mounting	DIN Rail
Mounting Type	DIN Rail
Depth	117 mm
Height	109 mm
Weight	1.1325 Kg
Width	61 mm
Operating Temperature without Derating	-40 °C - 70 °C
Operating Temperature	-40 °C - 70 °C
IP Rating	IP20
Fiber Distance Rating	2 km
Total Ports	11
Traffic Management	Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management	SNMP V1/2/3
100Base Fiber	3
Standards and Approvals	UL/cUL Listed (UL 508); ANSI/ISA-12.12.01-2007 Class I, Div 2, Groups A-D (T4); GOST-R Certified

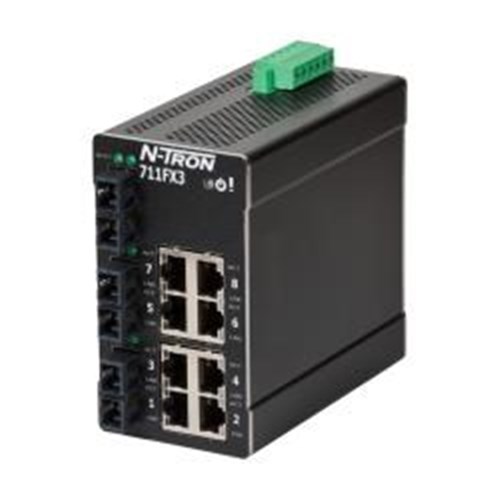

Red Lion 711FX3-SC Industrial Ethernet Switch 30VDC
