Specifications

Product Type	Media Converter
Brand	Red Lion
Series	N-Tron
Rated Voltage	10-30 VDC
Connectors/Input/Output	10/100BaseTX: One (1) RJ-45 TX Port 100BaseFX: One (1) ST or SC Duplex Port
Material	Hardened Metal
Mounting Type	DIN-Rail
Depth	123 mm
Height	74 mm
Weight	220 g
Width	39 mm
Storage Temperature	-40 °C - 85 °C
Operating Temperature	-40 °C - 80 °C
Fiber Distance Rating	40 km
Standards and Approvals	FCC Title 47 Part 15 Subpart BClass A ICES-003- Class A CE: EN61000-6-2,4 EN61000-4-2,3,4,5,6 UL Listed (US and Canada) per ANSI/ISA-12.12.01-2000, Class I, Div 2, Groups A,B,C,D,T5; EN55011 Class A GOST-R Certifi ed RoHS Compliant ABS Type Approval for Shipboard Applications DNV-GL Type Approval Certifi cation EN50155 for Railway Applications

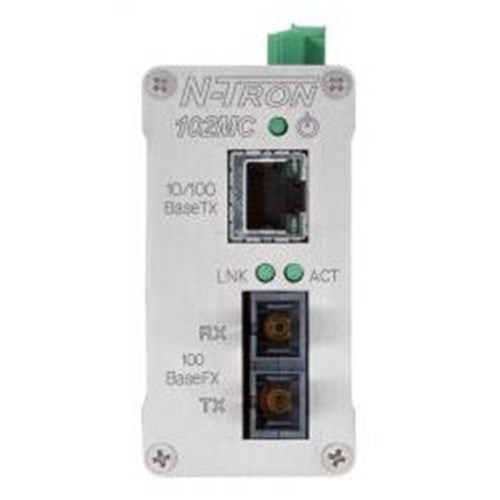

Red Lion N-TRONÂ® 102MC MEDIA CONVERTERS 102MCE-SC-40
