Specifications

Product Type	Switch
Brand	Red Lion
Series	N-Tron
Input Voltage	10-49 VDC
Communication Ports	12
Rated Current	760 mA
Rated Voltage	10-49 VDC
Redundancy	N-Ring Member/Manager(~30 ms Healing), STP, RSTP, MSTP
Connectors/Input/Output	8x RJ45, 4x SFP, 1x USB Type B
Housing Material	Metal Enclosure
Mounting	DIN rail mount (bracket included)
Mounting Type	DIN Rail
Depth	140.7 mm
Height	149.2 mm
Weight	0.86523 Kg
Width	78.7 mm
Humidity	10-95%
Storage Temperature	-40 to 85 deg C
Operating Temperature	-40 °C - 85 °C
IP Rating	IP20
Total Ports	12
Traffic Management	Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management	SNMP V1/2/3
Standards and Approvals	CE, EMC, FCC, RoHS, UL

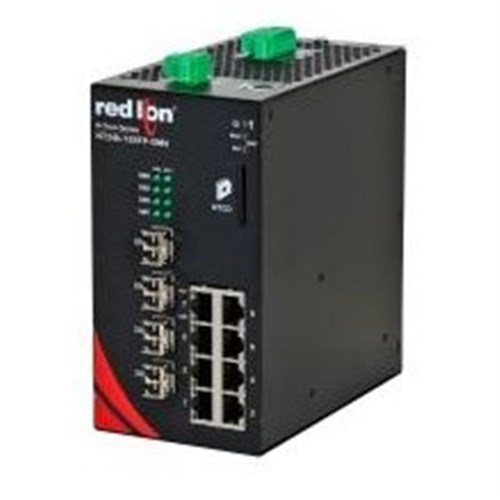

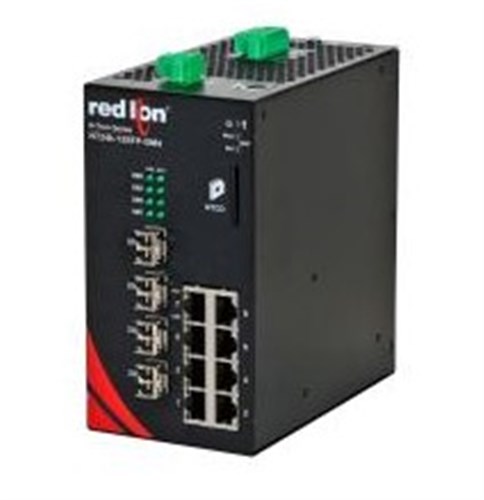

Red Lion NT24K-12SFP-DM4 Managed Industrial Ethernet Switch 12 -Port 10-49VDC
