Specifications

Product Type	Switch
Brand	Red Lion
Series	N-Tron
Input Voltage	10-49 VDC
No. of Ethernet Ports	24
Redundancy	N-Ring Member/Manager(~30 ms Healing), STP, RSTP, MSTP
Connectors/Input/Output	Up to 24x RJ45, up to 24x SC or ST fiber ports, up to 24x LC fiber ports
Housing Material	Metal Enclosure
Mounting	DIN rail mount (bracket included)
Mounting Type	DIN Rail
Depth	116.5 mm
Height	152.0 mm
Weight	4.077 Kg
Width	214.6 mm
Operating Temperature	-40 °C - 85 °C
IP Rating	IP20
Total Ports	24
Traffic Management	Auto-IGMP Snooping, QoS, Broadcast/multicast storm control, Per-port ingress/egress rate limiting
Network Management	SNMP V1/2/3
Standards and Approvals	CE, EMC, FCC, RoHS, UL

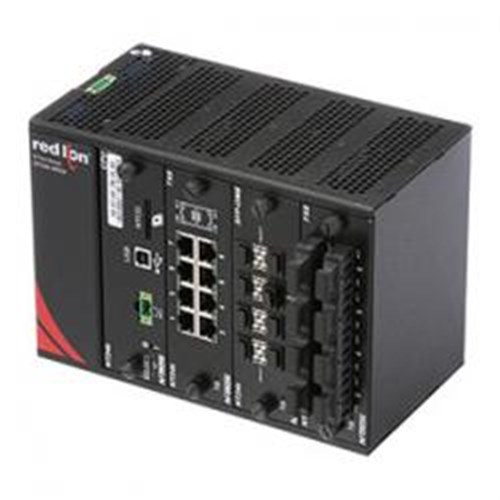

Red Lion NT24K-DR24-DC Modular Managed Industrial Ethernet Switch
