Specifications

Product Type	Emergency Light
Brand	RP-Group
Series	ILD
Degree of Protection	IP40
Diameter	100 mm
Height	36 mm
Housing Material	Polycarbonate
Insulation Class	2
Rated Frequency	50/60 Hz
Rated Voltage	230 V
Weight	0.2 Kg
Backup Supply	Self-contained
Battery	LiFePO4 3,2 V/3,0 Ah
Battery connection	Connector
Weight incl. packaging	0.24 Kg
Bridging time	3 h
Certification	WEEE, CE, 5 years warranty
Switching input	No
Connection cross-section	1.5 mm²
Dimming function	No
Emergency light blocking	No
Housing color	White
IK Rating	≥ 3
Illuminant	LED
Luminous flux emergency	180 lm
Luminous flux mains	180 lm
Monitoring	SelfControl (SC)
Mounting	Surface mounting
Operating mode	Non-maintained
Operating temperature maintained mode	5 °C to 40 °C
Power non-maintained	0.3 W
Power max.	2.8 W
Operating temperature non-maintained mode	5 °C to 40 °C

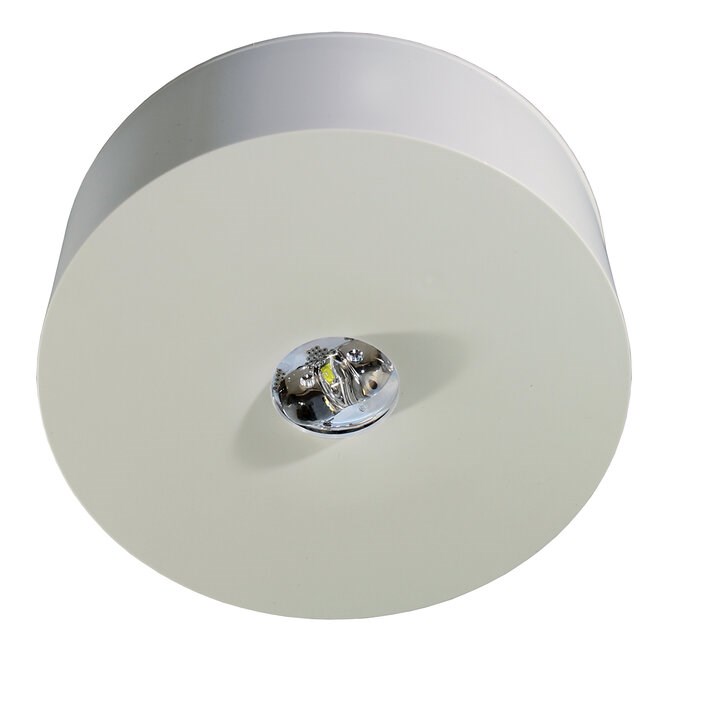

RP-Group ILDK423SC-ANZ Emergency Light Self-Control Surface Mounting with 3-hour Battery IP40 White Polycarbonate Housing
